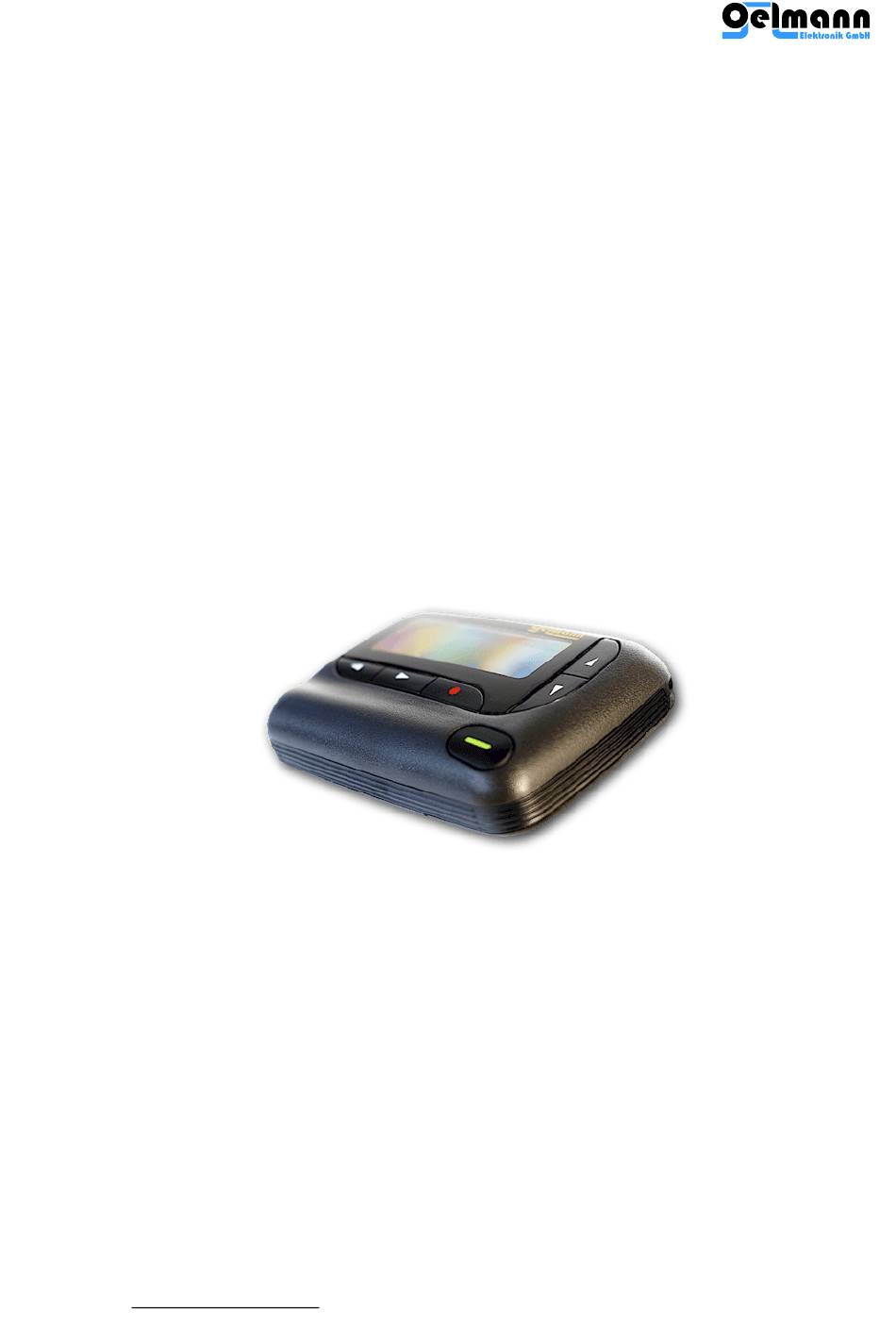

PAGER LX4
USER MANUAL
LX4 PAGER
USER MANUAL
Document: OE–PAGER-LX4–UM–EN
Issue:
10.01.2022
Copyright © 2022 Oelmann Elektronik GmbH
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or
transmitted, by any means, electronic, mechanical, photocopying, recording, or otherwise, without writ-
ten permission from Oelmann Elektronik GmbH.
Trademarks
All products and services herein are the trademarks, service marks, registered trademarks or regis-
tered service marks of their respective owners.
Limit of Liability
Every effort has been made to make this manual as complete and as accurate as possible, but no
warranty or fitness is implied. The information provided is on an "as is" basis. Oelmann Elektronik
© 2022 Oelmann Elektronik GmbH
1 / 25
Advertisement
Table of Contents
Related Manuals for Oelmann Elektronik LX4
Summary of Contents for Oelmann Elektronik LX4
- Page 1 Limit of Liability Every effort has been made to make this manual as complete and as accurate as possible, but no warranty or fitness is implied. The information provided is on an “as is” basis. Oelmann Elektronik © 2022 Oelmann Elektronik GmbH...
- Page 2 Intellectual Property Rights Copyright and Trademarks This product may be protected by one or more patents or designs of Oelmann Elektronik GmbH together with their international equivalents, All information contained in this document is the pending patent or design applications, and regis- property of Oelmann Elektronik GmbH.
-
Page 3: Table Of Contents
Magnifier Glass Function ..................14 Backlighting of the display ..................15 Locking and Unlocking Messages ................ 15 Deleting Received Message from Memory ............15 Delete All Received Messages from memory ............15 © 2022 Oelmann Elektronik GmbH 3 / 25... - Page 4 Maintenance, troubleshooting and service ..............20 Maintenance ......................20 Troubleshooting ....................20 Service and repair ....................20 Guidelines for cleaning pagers .................. 21 Software License Agreement ..................22 Declaration of Conformity..................25 © 2022 Oelmann Elektronik GmbH 4 / 25...
-
Page 5: Preface
DOCUMENT CONVENTIONS The content of the document reflects the general principles of the LX4 pager. – End–user product package may contain additional elements and options. – Software screenshots are provided here are for information only. All user ele- ments and names of screenshots and settings used are demo. -
Page 6: Description
USER MANUAL DESCRIPTION LX4 pager is a professional digital compact highly portable professional POCSAG re- ceiver. LX4 pager is intended to use by firefighters, personal security and safety ser- vices, industry and healthcare, rescue or logistics. FEATURES AND FACTS Fine tuning over a wide frequency Best readability by proportional char- –... -
Page 7: Delivery Content
– Plastic belt clip, transparent. – Short user guide. The standard delivery content is shown in Figure below: Short user guide Plastic belt clip Rechargeable LX4 pager Battery © 2022 Oelmann Elektronik GmbH 7 / 25... -
Page 8: General Safety Information
HUMIDITY The humidity should not exceed 95% relative humidity through the specified operat- ing temperature range. DUST AND DIRT For uncontrolled environments, the level of airborne particulates must not exceed 100μg/m3. © 2022 Oelmann Elektronik GmbH 8 / 25... -
Page 9: Licenses And Regulatory Information
Unauthorized modification leads to inability to apply future firmware updates. Oelmann Elektronik GmbH strongly cautions against installing any software that hacks LX4. It is important to note that unauthorized modification of the LX4 firmware is a violation of the End–user software license agreement on page 21. -
Page 10: Pager Display Symbols
Set Magnifier Glass Function Turn Pager Off Escape to Main Screen Lock Message Unlock Message Delete Message Delete All Messages ¡ Enable Out Of Range Indicator ˙ Disable Out Of Range Indicator · Re-routing Message © 2022 Oelmann Elektronik GmbH 10 / 25... -
Page 11: Pager Controls
The controls are shown in Figure below: Ÿ ..Button “To the left” ⁄ ..Button “To the right” ◊ ..Button “Function” ’ ..Button “Read” Î ..Button “Up” Ì ..Button “Down” © 2022 Oelmann Elektronik GmbH 11 / 25... -
Page 12: Important Notice
⁄ or left Ÿ across the symbols, a corresponding prompt appears in the upper ◊ display line. To activate your function selection, press the Function Button Note: Any function may have been disabled during programming so that it is not available on your pager. © 2022 Oelmann Elektronik GmbH 12 / 25... -
Page 13: Turning Your Pager Off
Range alert is raised. If you do not recognize the alert (you do not press any button) there will be a repetition in regular intervals and the Out Of Range symbol ¡ flashes. © 2022 Oelmann Elektronik GmbH 13 / 25... -
Page 14: Receiving And Reading Messages
1. Select Magnifier Glass 3 in the function menu and press the Function Button ◊ 2. Select the wanted function using the Ÿ or ⁄ buttons. ’ 3. To escape without making changes, press ◊ 4. Confirm the chosen function by pressing © 2022 Oelmann Elektronik GmbH 14 / 25... -
Page 15: Backlighting Of The Display
3. The most left position defines the clock alarm status: enable (Ã) or disable ’ (8).To escape from any field without making changes press ◊ 4. Press to confirm your clock alarm settings. © 2022 Oelmann Elektronik GmbH 15 / 25... -
Page 16: Setting The Message Alert Mode
A,B,C,D). Pager numbers and profiles are pre-programmed prior to issuing the pager to the end user. 1. Select user profile ) in the function menu and press the Function Button ◊ © 2022 Oelmann Elektronik GmbH 16 / 25... -
Page 17: Setting The Auto On/Off Mode
If your pager ever requires service, your dealer or the service company (refer to “technical data”) offers repair and maintenance facilities. ACCESSORIES The following accessories are available: © 2022 Oelmann Elektronik GmbH 17 / 25... -
Page 18: Re-Routing Received Messages
1. Unlock the battery cover by sliding the cover latch up with your thumb. 2. Slide the battery cover to the right. 3. Remove the battery cover. 4. Install the battery. 5. Close the battery compartment cover. © 2022 Oelmann Elektronik GmbH 18 / 25... -
Page 19: Charging / Selecting Cell Type
Important: To make possible the supervised charging procedure and reliable Low Battery Alert function, it is necessary to set the nominal capacity of the rechargeable battery during programming of the pager (refer to statements of the manufacturer, i.e. 2400mAh). © 2022 Oelmann Elektronik GmbH 19 / 25... -
Page 20: Disposal Of Your Electronic And Electric Equipment
There are no special maintenance requirements for the pager. The pager functions in a continuous mode 24/7. TROUBLESHOOTING Check the fully charged battery is in, and that pager switched on. If problems persist, contact your regional Oelmann Elektronik office. SERVICE AND REPAIR Oelmann Elektronik GmbH Rathenaustrasse 2-6 31832 Springe, Deutschland service@oelmann-elektronik.de... -
Page 21: Guidelines For Cleaning Pagers
USER MANUAL GUIDELINES FOR CLEANING PAGERS Applies to following Oelmann pagers: LX2, LX4, LX7, LX8, TETRA, WIFI pager. Oelmann pagers are made with a variety of materials, and each material might have specific cleaning requirements. Here are tips that apply to all pagers: –... -
Page 22: Software License Agreement
PDF files (the “Documentation”) are li- form for each permitted copy of the Program. censed, not sold, to you by Oelmann Elektronik All other copies of the Program and any copy of GmbH (“Licensor”). The term “Program” shall... - Page 23 “commercial computer software” and “commer- ARISING OUT OF YOUR USE OR INABILITY cial computer software documentation,” as such TO USE THE PROGRAM INCLUDING, BY terms are used in 48 C.F.R. 12.212 (Sept. © 2022 Oelmann Elektronik GmbH 23 / 25...
- Page 24 Program made by you. gation within a reasonable period then you shall be entitled to a reduction of the purchase price © 2022 Oelmann Elektronik GmbH 24 / 25...
-
Page 25: Declaration Of Conformity
PAGER LX4 USER MANUAL DECLARATION OF CONFORMITY Oelmann Elektronik GmbH herewith declares that the pager is in accordance with the essential requirements and regulations of the directive 1999/5/EC. EU DECLARATION OF CONFORMITY This declaration of conformity is issued under the sole responsibility of the...
