Security Brands RIDGE HD 14-HD500T Install Manual

I N S T A L L G U I D E

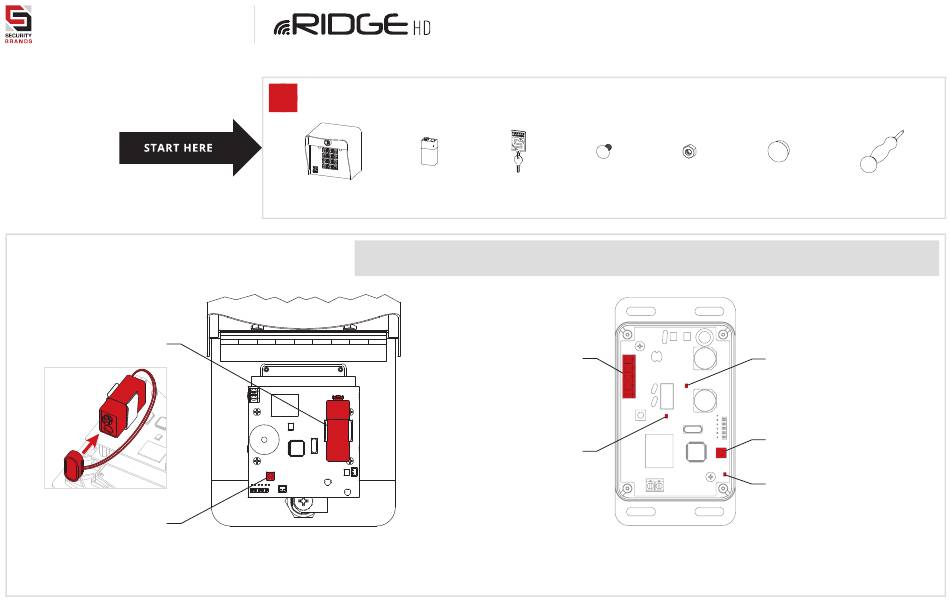

What's what?
Important components labeled
9-V Battery
Must be installed before use.
Reset Button
For performing reset procedures
on keypad
Unpack box and make sure you have everything shown here.
1
2
Keypad Unit
You MUST have the Ridge Transceiver (14-REC20) for this keypad to work. It is bundled with the Ridge Keypad Kit (14-500),
Ridge Keypad HD Kit (14-HD500), Ridge RTE Kit (RTE433), and can be purchased separately.
Keypad Unit
Unit shown with faceplate fully open.
Internal wiring not shown for clarity.
9-V Battery Key Carriage Bolt
Connection Terminals
For wiring to compatible
AC/DC power source and
gate operator or door opener
Relay Status LED
Indicates whether relay is
active or inactive
(Relay active when lit)
Hex Nut Hole Plug
( 4x ) ( 4x )
Power LED
Indicates whether or not unit has power
Programming Button
For pairing transceiver to keypad or
resetting transceiver
Programming LED
Indicates status of pairing process
Transceiver
(Not Included)
Shown with cover removed.
Internal wiring not shown for clarity.
1 of 6
14-HD500T
Model
Screwdriver
