Q U I C K S T A R T
Carefully unpack box.
1
START HERE
What's what?
Important components labeled
Reset Button
For performing reset procedures
ADVANTAGE DKE
G U I D E
Make sure you have everything shown here.
2

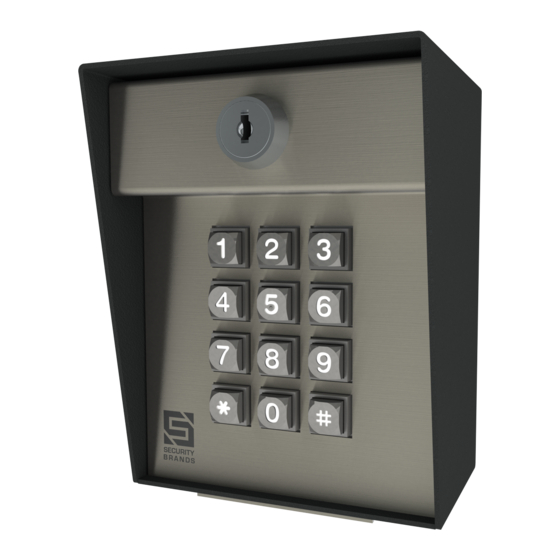

Keypad Unit
Keypad Unit Front Panel
Shown as it would appear with front panel inserted
into enclosure as in Step 4.
Key
Carriage Bolt
Hex Nut
( 4x )
( 4x )
Power and Relay Terminals
For wiring to gate operator or door opener,
accessories, and power
Event Input Terminals
For wiring to an exit device
26-500
Model
Unlock and remove front panel
3
of keypad unit; then using
carriage bolts and hex nuts,
attach unit to pedestal as shown.
For ease of wiring, insert front
4
panel into enclosure as shown.
W AR N ING!
AUTOMATIC GATES CAN CAUSE
SERIOUS INJURY OR DEATH!
ALWAYS CHECK that the GATE PATH IS
CLEAR BEFORE OPERATING!
REVERSING or other SAFETY DEVICES
SHOULD ALWAYS BE USED!
1 of 6
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Security Brands Advantage DKE
Summary of Contents for Security Brands Advantage DKE
- Page 1 ADVANTAGE DKE 1 of 6 Q U I C K S T A R T G U I D E 26-500 Model Carefully unpack box. Make sure you have everything shown here. Unlock and remove front panel of keypad unit; then using carriage bolts and hex nuts, attach unit to pedestal as shown.
- Page 2 Connect to terminals on Event Input keypad unit. Terminals on keypad unit. + – Advantage DKE Exit Device Power Source Mag Lock (58-RTE-P is shown) (12–24-VAC/DC) (57-1200MAG is shown) © 2021 Security Brands, Inc. All rights reserved. QSG-26500-EN Rev. H (9/2021)
- Page 3 ADVANTAGE DKE 3 of 6 Q U I C K S T A R T G U I D E 26-500 Model Add Access Code(s) to Relay A. Make sure gate path is clear; then enter access code on keypad and (To add multiple codes, enter each of them before pressing pound key) confirm gate opens.
- Page 4 (1 for A, 2 for B) number or makes no beep when disabled) NOTE: Green arrow indicates “good” tone on keypad. Always wait for good tone before moving on. © 2021 Security Brands, Inc. All rights reserved. QSG-26500-EN Rev. H (9/2021)
- Page 5 ADVANTAGE DKE 5 of 6 Q U I C K S T A R T G U I D E 26-500 Model Reset Procedures Notes NOTE: If an error is made during these procedures, an “error” tone will sound and you must start again from the beginning.
- Page 6 Q U I C K S T A R T G U I D E 26-500 Model Notes Advantage DKE 26-500 NEED HELP Call (972) 474-6390 Email techsupport@securitybrandsinc.com We are available Mon–Fri / 8am–5pm Central © 2021 Security Brands, Inc. All rights reserved. QSG-26500-EN Rev. H (9/2021)
