- Page 1 LED REMOTE or PURION 200 E-BIKE QUICK START GUIDE...
-
Page 2: Welcome To The Family
Welcome to the family! This quick-start guide explains the basic operation of the Bosch smart system on your bike. This guide is also available online in your language. Use the codes or links below to access the online guide. Even if you’ve been riding a bike for years, you should read this guide, as well as: •... - Page 3 A few things to know about riding your new e-bike 1. Start slow We know – fast is fun. But e-bikes take a bit of getting used to. It may be tempting to ramp your e-bike up to the fastest setting straight away, but we recommend taking it nice and easy the first few rides.

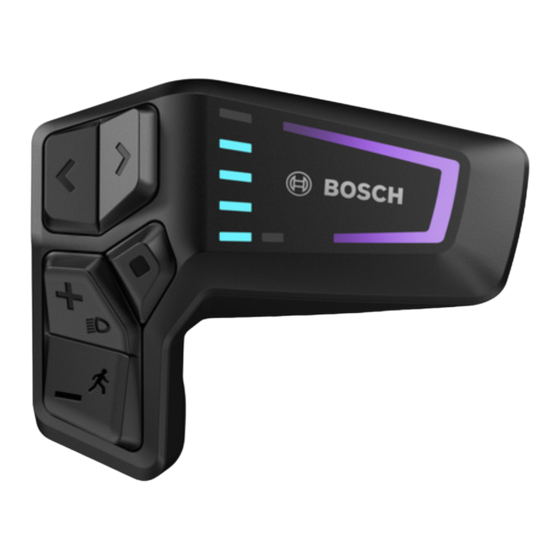

- Page 4 Turn the bike ON or OFF ON|OFF: Press and release Pair with a smartphone: Press and hold The e-system will automatically turn off if the bike is not moved, nor any buttons pushed for 10 minutes. Lights (If wired to the e-system) ON|OFF: Press and hold Note: If front and/or rear lights are included with your bike, they may be programmed to turn ON or OFF when the bike is turned ON or OFF.
-
Page 5: Pedal Assistance
Pedal assistance You’ve got places to be and people to see, so get going. Select an assist mode Red = Turbo | Turbo TURBO Purple = eMTB | Automatic km/h 21.4 Blue = Tour+ | Tour+ Green = Eco | Eco Pedal assistance Restarts when: Stops when:... -
Page 6: Walk Assistance
Walk assistance WARNING: Walk assistance should only be used when you are walking your bike. Never use walk assistance when you are riding your bike, or in situations where the wheels are not touching the ground. Hold the button and walk the bike forwards or backwards. Shifting your bike into a high- er gear increases the speed of walking assistance, up to the approximately 4 mph/6 kph. -
Page 7: Charge The Battery
Be safe. Follow these safety warnings when charging your battery: WARNING: • Only charge the battery with a Bosch smart system charger. Using the wrong charger risks the life of the battery and presents a potential fire hazard. • Only use the charger in dry, indoor areas. - Page 8 On the e-bike Off the e-bike Depending on your e-bike, the battery may or may not be removable for charging. 100% 100% EN-GB-7...
-
Page 9: Battery Charge Level
Battery charge level TURBO km/h 21.4 Charge Level Blue bar = 20% White bar = 10% 4 blue LEDs + 1 white LED = 81% to 90% charged Low Battery Indicator The bottom two LEDs change colour. 2 orange: 30% to 21% 1 orange: 20% to 11% 1 red: 10% to reserve 1 red flashing: reserve to empty... - Page 10 Install or remove the battery Before installing or removing the battery, make sure that the battery and e-bike are OFF. No LEDs should be illuminated on the remote or the battery. Note: Depending on your e-bike, the battery may or may not be removable. Install: 1 ▶...
- Page 11 Care for your battery and e-bike Along with the fun of having an e-bike comes a few special warnings to keep you and your bike safe. Install accessories carefully Consult with a certified e-bike technician before installing accessories. Using the wrong bolt in the wrong place could cause a short circuit in the electrical system and/or damage the battery, which might lead to over-heating.
- Page 12 Transport your e-bike safely • The Bosch drive system adds weight to the bicycle. Overloading a bicycle rack can result in death or serious injury. Refer to your bicycle rack manual to make sure that it is compatible with your e-bike.
- Page 13 Contact US Head Office European Head Office US Head Office Trek US Trek Fahrrad GmbH Electra Bicycle Company Customer Service Auenstrasse 10 364 2nd Street 801 W Madison Street CH-8600 Dübendorf Encinitas, CA 92024 Waterloo, Wisconsin 53594 USA Switzerland Tel.: 920.478.4678 Tel.: 00800 8735 8735 Tel.: 1.800.261.1644 European Head Office...
- Page 14 © 2023 Trek Bicycle Corporation...
