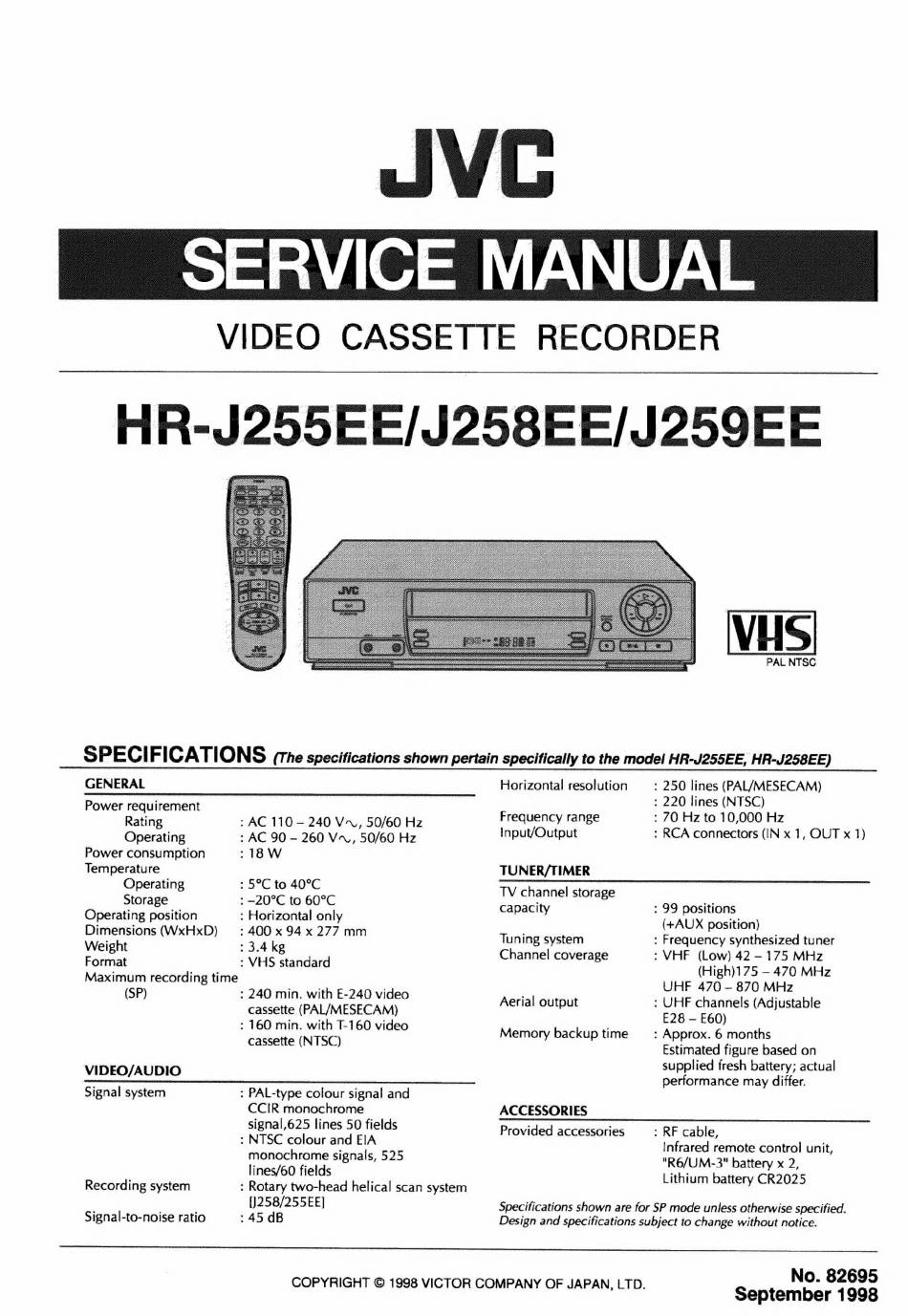

JVC HR-J255EE Service Manual

RECORDER
PAL NTSC
GENERAL
Power requirement
Rating : AC 110 — 240 Vx, 50/60 Hz
Operating
: AC 90 — 260 V~, 50/60 Hz
Power consumption
> 18W
Temperature
Operating
: 5°C to 40°C
Storage
: -20°C to 60°C
Operating position : Horizontal only
Dimensions (WxHxD) : 400 x 94x 277 mm
Weight
: 3.4 kg
Format : VHS standard
Maximum recording time
(SP) : 240 min. with E-240 video
cassette (PAL/MESECAM)
: 160 min. with T-160 video
cassette (NTSC)
VIDEO/AUDIO
monochrome signals, 525
lines/60 fields
Horizontal resolution
Frequency range
(+AUX position)
: VHF (Low) 42 - 175 MHz
UHF 470 - 870 MHz
: Approx. 6 months
Estimated figure based on
supplied fresh battery; actual
performance may differ.
Tuning system
Channel coverage
Aerial output
Memory backup time
ACCESSORIES
