Summary of Contents for Dream Maker Spas Suite

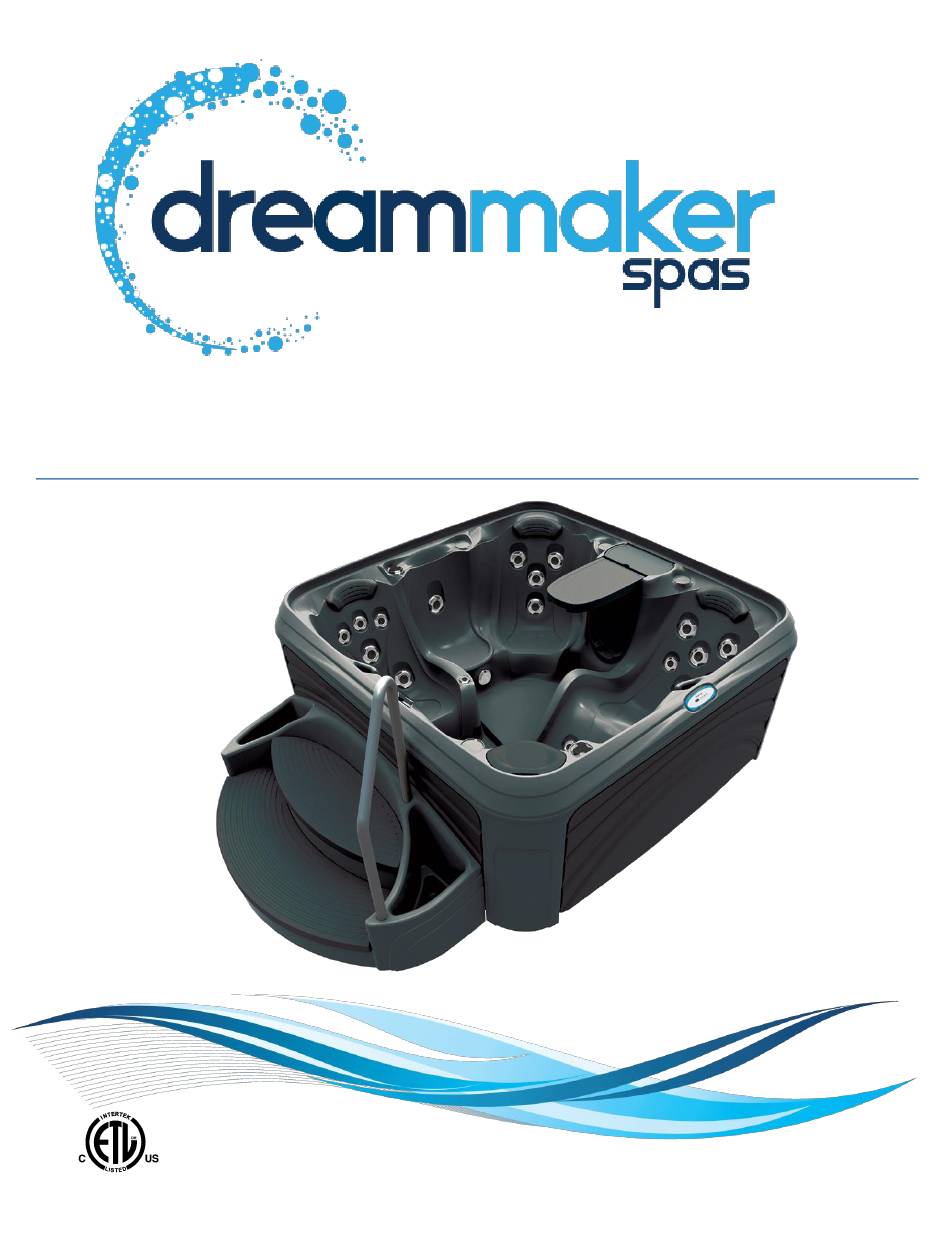

- Page 1 Suite Collection Owner’s Manual Version française au verso Conforms to Underwriters Laboratories Standard 1563 Certified to CAN/CSA-C22.2 NO. 218.1-M89 PN 378111 Rev E Standby power consumption rated per ANSI-14 Eng Domestic...
-
Page 2: Owner's Information
OWNER’S INFORMATION DEALER Company ___________________________________________________________________ Address ___________________________________________________________________ Phone ___________________________________________________________________ E-mail ___________________________________________________________________ INSTALLER Company ___________________________________________________________________ Address ___________________________________________________________________ Phone ___________________________________________________________________ Model (see below) ______________________________________________________________ Serial Number (see below) ______________________________________________________ Color ___________________________________________________________________ Date of Delivery _________________________________________________________________ For the model and serial numbers, locate the white plate to the right or left of the access door, near the floor. -
Page 3: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS……………………………………………………………………………………….4-5 SELECTING ELECTRICAL MODE AND A LOCATION…………………………………………………………………..6-7 SPA COVER INSTALLATION……………………………………………………………………………………………………..8-9 STEP INSTALLATION…………………………………………………………………….…………………………………………10 UMBRELLA INSTALLATION, USE, CLEANING AND CARE.……………….………………………………………..11-13 FILLING YOUR SPA……………………………………………………………………….…………………………………………14 DRAINING YOUR SPA……………………………………………………..…………….…………………………………………14 FOR THE ELECTRICIAN…………………………………………………………………….………………………………………15-17 SYSTEM OPERATION……………..……………………………………………………………………………………………….18-19 DISPLAY MESSAGES………………………………………………………………………………………………………………..20 SKIMMER-FILTER, CLEANING OR REPLACEMENT OF THE FILTER CARTRIDGE………………………….21 AIR INJECTOR VENTURI ADJUSTMENT…………………………………………………………………………………….22 ADJUSTABLE WATER FLOW JETS…………………………………………………………………………………………….22 WATERFALL FLOW ADJUSTMENT……………………………………………………………………………………………22... -
Page 4: Important Safety Instructions
When installing and using this electrical equipment, basic safety precautions should always be followed, including the following: READ AND FOLLOW ALL INSTRUCTIONS WARNING: To reduce the risk of injury, do not permit children to use this product unless they are closely supervised at all times. WARNING: A wire connector is provided on this unit to connect a minimum 6 AWG (4.11 mm) solid copper conductor between this unit and any metal equipment, metal enclosures of electrical equipment, metal water pipe, or conduit within 5 feet (1.5m) of the unit. - Page 5 12. Caution: Maintain water chemistry in accordance to manufacturer’s instructions. Your spa can be a source of great pleasure. It offers healthful stimulating recreation and is a delightful fun center for you, your family and friends. However, it contains large quantities of water and is deep enough to present inherent dangers to life and health unless the following safety rules are strictly observed.
-
Page 6: Selecting Electrical Mode And A Location
Selecting a location ❑ WARNING! DO NOT STORE SPAS OUTDOORS WITHOUT PROPER WATER LEVEL. A spa stored outside in direct sun, without proper water level, uncovered or under a tarp/cover, can accumulated temperatures that will damage the spa, its components and void the warranty. Only store an empty spa indoors or in the shade. ❑... -
Page 8: Spa Cover Installation
Spa Cover Installation WARNING! AVOID DROWNING RISK • Failure to follow instructions may result in injury or drowning. • Non-secured covers are a hazard. • Keep children away. People or objects cannot be seen under the cover. • Because of entrapment possibility, remove cover completely before entry of bathers. •... - Page 9 (Spa cover installation continued next page.) Repeat steps 2 through 4 on the side of your spa. Do not use screws yet. Assembling the leftover tubing. Slide both FOAM SLEEVES onto the CROSS TUBE. Insert the L TUBES into both ends of the CROSS TUBE. Do not use screws yet. While the SUPPORT TUBES are oriented upward, push the open ends of the L TUBES over the SUPPORT TUBES, as show in Figure 5.
-
Page 10: Step Assembly
Step Assembly Tools needed: A screw gun or drill with a #2 Philips screwdriver bit. Items supplied: Assembly steps: 1. Using a Philips screwdriver, remove the two flat head screws and cover from back of step. 2. Insert the rail into the two round holes. The long leg toward the back. -
Page 11: Umbrella Installation, Use, Cleaning And Care
Umbrella installation and use Important Safety Instructions • WARNING: To reduce the risk of personal injury and damage to your umbrella, read and follow these safety, assembly, installation and operation instructions: Do not install umbrella under electrical lines, electrical wires, electrical fans, electrical lighting fixtures or any other electrical fixtures. - Page 12 Assembling and installing the umbrella. Installing the Base Ensuring the two knobs point away from the spa, insert the umbrella base into the hole in the top of the spa as shown and push the base downward until the bottom of the base rests on the floor. Using a screw gun or drill, install the two self-drilling screws through the two holes and into the umbrella base, as shown.
- Page 13 Ensuring the canopy’s top side is out, fit the center hole of the canopy over the top tube of the cage assembly. Ensure the plastic caps are on each end of the cage arms and insert the four cage arms into the four corresponding corner pockets on the underside of the canopy.
-
Page 14: Filling Your Spa
Filling Your Spa Warning! Your spa is constructed of a very resilient and flexible polymeric material. It is designed to flex as much as 2 inches (5cm) without damage. However, overfilling the spa and/or installing on a non-level surface for extended periods of time can permanently distort the original shape of your spa, cause structural damage, effect the sealing of the cover and void your warranty. -
Page 15: For The Electrician
FOR THE ELECTRICIAN Installations that do not adhere to these instructions can expose users to Fig. 5 electric shock and will void the warranty. Power Requiremnts 240VAC, 60HZ, 40A, Class A GFCI-protected service (Circuit Breaker rating 50A). 4 wires (hot, hot, nuetral, ground). Equipment GFCI PROTECTION: The new service must be protected with by a GFCI Control box... - Page 16 FOR THE ELECTRICIAN continued ELECTRICAL DATA FOR THE USE OF CERTIFIED LICENSED ELECTRICIA N REQUIRED WIRING FOR 240 VOLT 4 WIRE INSTALLATION N White L1 Black L2 Red Ground Green All wiring MUST be in accordance with the National Electrical Code and all local codes WARNING: Shock Hazard! Under No Circumstances Should This Spa Be Installed By Anyone Other Than A Certified Licensed Electrician!
-
Page 17: Dip Settings
FOR THE ELECTRICIAN continued DIP SETTINGS VS501Z, 54379 MAIN POWER TO SYSTEM MUST BE TURNED OFF BEFORE ADJUSTING DIP SWITCHES TEST MODE OFF TEST MODE ON SETTINGS STD, ECON, SLEEP ALLOWED STANDARD MODE ONLY DUPLEX PANEL MINI PANEL N/A MUST BE OFF N/A MUST BE OFF N/A MUST BE OFF N/A MUST BE OFF... -
Page 18: System Operation
Jets Jets Initial Start-Up When your spa is first activated, it will perform a self-diagnostics test showing a series of numbers followed by Pr, then by -- along with the low speed pump for approximately 7 minutes total. Also, the internal clock that keeps track of the filtration cycles every 12 hours will start at that point. - Page 19 Spa Water Maintenance This function enables you to program the amount of water filtration time. Press then the 2 jets button to enter the programming mode. Once in the programming mode press to select the filtration time. F2 In this mode the water will be filtered for 2 hours every 12 hours. This is the default mode as supply from factory. F4 In this mode the water will be filtered for 4 hours every 12 hours.
-
Page 20: Display Messages
MESSAGE MEANING ACTION REQUIRED No message on display. Power The control panel will be disabled until power returns. has been cut off to the spa. Spa settings will be preserved until next power up. Temperature unknown. After the pump has been running for one minute, the temperature will be displayed. -
Page 21: Skimmer-Filter, Cleaning Or Replacement Of The Filter Cartridge
SKIMMER FILTER CLEANING OR REPLACEMENT OF THE FILTER CARTRIDGE End nut The spa’s automatic surface skimmer filter is designed to remove floating debris and contaminants, such as body lotions, by drawing water through a specially formulated filter cartridge element. It is critical that this element be routinely cleaned. -
Page 22: Air Injector Venturi Adjustment
Air Injection Venturi Adjustment Air injection into the jet’s water stream is adjusted by turning the venture dials. Each dial is independent and controls about half of the jets, respectively. Turn them counter-clockwise to increase, and clockwise to decrease, the amount of air injected into the jets’ water stream. Adjustable Water Flow Jets The jet’s water flow is adjusted by turning the jet face. -
Page 23: Using Your Cooler
Using Your Cooler To chill your favorite beverage, fill the cooler with ice and place beverages in the ice. Cooler Drain Knob To drain the melt water from your cooler, turn the drain knob a couple of turns counterclockwise. Melt water will exit through the small hose located on the umbrella side, low by the lifter. -
Page 24: Water Chemistry
Spa water chemistry (or water balance) affects the safety of your equipment as well as the appearance of your spa water. Water balance has five factors: pH, total alkalinity, calcium hardness, temperature and total dissolved solids. The pH is the most critical but total alkalinity and calcium hardness must also be watched closely. -
Page 25: W A T E R C H E M I S T R Y ( C O N T I N U E D )
It is recommended that the spa be drained regularly depending on its size, location and the frequency of use. 1. Clean filter and cartridge periodically according to manufacturer’s instructions. 2. Keep the spa covered when not in use to reduce the loss of heat and to keep out leaves, dirt, and other foreign materials from settling in the water. -
Page 26: Replacing The Led Light
Replacing the LED Light 1. Turn off power to the spa. 2. Using a Philips screwdriver, remove the panel behind the light. 3. Using you hand, dig through the insulation foam until you reach the light. Save the removed insulation. 4. -
Page 27: Headrest Installation
Headrest Installation Your headrests are designed to not be removed. However, if you need to reinstall the headrest on the spa, follow these steps. Using a Phillips screwdriver, remove the cabinet panel(s) directly behind the headrest location. Locate the two wing nuts and completely remove them turning counterclockwise (fig 1). Remove the two clear threaded fittings and insert their heads into the two outside holes in the back of the headrest (fig 2). -
Page 28: Freeze Protection
DO NOT ALLOW THE SPA TO FREEZE Caution, any damage caused by improper winterizing will void the warranty. You may want to consider contacting a spa professional for winterizing service. If the spa is to be stored or transported in temperatures of 32°F (0°C) or lower, it is critical that the unit be fully winterized. -
Page 29: Frequently Asked Questions
1. Why does my spa not shut off? Your spa is designed to run from the time you plug it in, until it reaches your desired water temperature. Once desired water temperature is reached then you can control the functions with the buttons on the top control. -
Page 30: Purging The Pump
PURGING THE PUMP Sometimes after a water change (draining and refilling the spa), or initial start-up of the spa, there is no water flowing from the jets. You may hear the pump operating or even see the shaft of the pump motor turning, but have no water flowing from the jets. -
Page 31: Troubleshooting Guide
SITUATION PROBABLE CAUSE ACTION NO HEAT OR HEAT TOO LOW Operating while spa cover is open. Ensure that spa cover is properly closed. Dirty filter Replace or clean filter cartridge. Pg. 21 JETS WON’T COME ON No power to spa control. Check the GFCI, circuit breaker and/or disconnect switch. -
Page 32: Glossary Of Terms
Venturi dials Mounted on the lip of the spa or at the equipment shroud, to induce air to the jets. BYPASS CHECK VALVE Prevents water flow stoppage due to dirty filter. CONTROL BOX Basically, the brain of the spa. Power is distributed to all functions of the spa, pumps, lights, heat, etc. DRAIN VALVE Used in the draining of the spa, looks like an outdoor faucet and fits a standard garden hose. -
Page 33: Ozone (Optional Equipment)
Your Spa’s Ozonator. (Optional equipment) If you ordered your spa with the optional ozonator installed, you can confirm this by viewing the spa’s rating plate. The rating plate is located near the floor and equipment access door. As shown below, look in the option box to confirm the ozonator has been installed. -
Page 34: Warranty
Limited Warranty Dream Maker Spas, manufactured by Roto Ops LLC, hereafter “Dream Maker”. This warranty is a limited warranty within the meaning of Title 1 of the Federal Trade Commission Improvement Act. 5 Year Shell – Subject to the limitations and exclusions listed herein, Dream Maker warrants the shell portion of the spa, which is deemed as the rotationally molded polyethylene water holding portion of the spa, for a period of five (5) years from the original date of purchase or six (6) years from date of manufacture, whichever period elapses first, against loss of water through the shell due to defects in material or workmanship.
