Daheng Imaging MARS-G-P Series Quick Manual

MA MARS GigE/ RS GigE/USB3.0
Thank you for choosing DAHENG IMAGING products! This guide will help you get started as quickly as
possible with our products. For more information(e.g. detailed manuals, CAD/3D drawings, driver software,
etc.), please visit: www.daheng-imaging.com/en
This guide applies to the following products:
MARS Camera
■ ■
GigE interface MARS-G-P Series, MARS-G-P-SWIR Series
■ ■
5GigE interface MARS-G5-P Series
■ ■
10GigE interface MARS-GT Series, MARS-GT-SWIR Series
■ ■
USB3.0 interface MARS-U3 Series
I. Download and Installation (Driver/Software)
■
Download
Please visit our website
[Downloads] → [Software].
■
Installation
After uncompressing the download file, please run the setup program(.exe file). You can choose the
components which you need during the installation process.
If you have any problems during the installation, please contact our technical support engineer for more
detailed instructions: isupport@daheng-imaging.com.
■

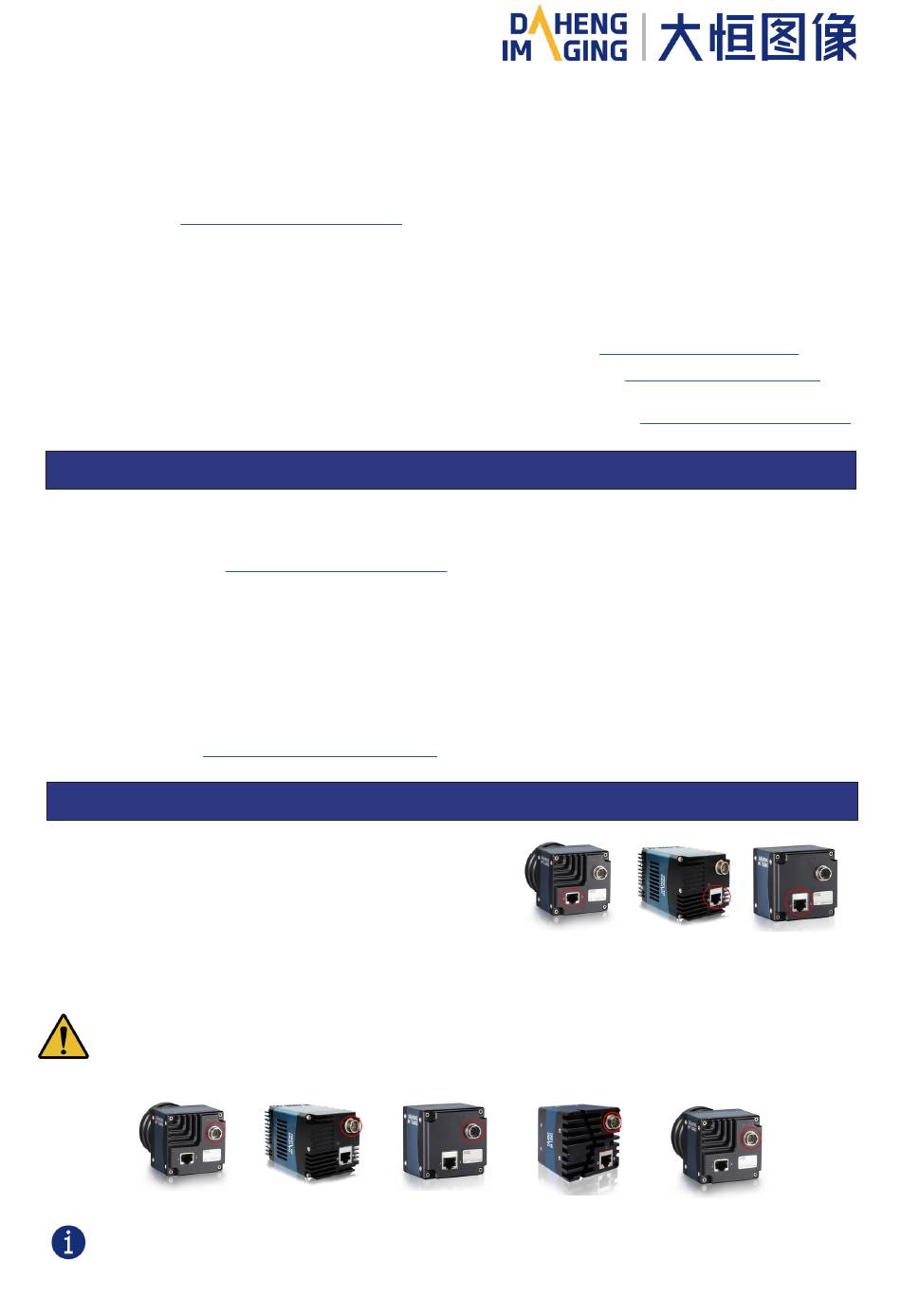

Via PoE
The power provided must adhere to the requirements specified
in IEEE 802.3af.
■
Via external DC power supply
Camera can get power from I/O port via a standard I/O cable.Nominal operating voltage is +12V~+24VDC (±10%).
1) Voltage outside of the specified range or use of connectors that do not match the I/O port may cause camera damage.
2) MARS-G-P-SWIR series has high power consumption and both pairs of power and ground must be fully connected to the external power.
3) Cameras with TEC and MARS-GT-SWIR series only support 24VDC±10% power supply.
MARS-G-P
When you supply power to the camera both via the camera's RJ45 jack and via the I/O port, the camera will get
power via the I/O port. And if you cut off the I/O port, the camera will get power via PoE and may restart. MARS-GT
series does not support PoE.
USB3.0 QuickGuide
www.daheng-imaging.com/en
II. Power
MARS-G-P-SWIR
QuickGuide
China Daheng Group, Inc. Beijing Image
Vision Technology Branch
Website:
Sales Email:
Sales Tel: +86 10 8282 8878
Support Email:
and download the latest driver and software from
MARS-G-P
MARS-G5-P MARS-GT
www.daheng-imaging.com/en
isales@daheng-imaging.com
isupport@daheng-imaging.com
MARS-G-P-SWIR MARS-G5-P
MARS-U3
