Daheng Imaging MARS Quick Manual

MARS QuickGuide MARS QuickGuide
Thank you for choosing DAHENG IMAGING products! This guide will help you get started as quickly as
possible with our products. For more information(e.g. detailed manuals, CAD/3D drawings, driver software,
etc.), please visit: www.daheng-imaging.com/en
This guide applies to the following products:
MARS
■ ■
GigE Series
■ ■
5GigE Series
■ ■
USB3.0 Series
I. Download and Installation (Driver/Software)
■
Download
Please visit our website
[Downloads] → [Software Downloads].
■
Installation
After uncompressing the download file, please run the setup program(.exe file). You can choose the
components which you need during the installation process.
If you have any problems during the installation, please contact our technical support engineer for more
detailed instructions: isupport@daheng-imaging.com.
■

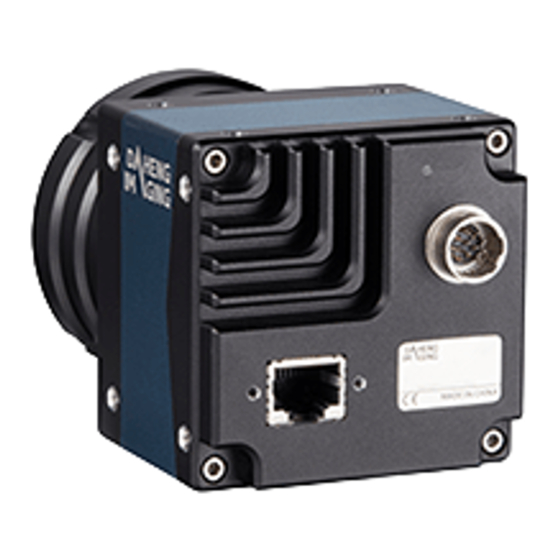

GigE Interface Camera
• Via PoE
The power provided must adhere to the requirements specified
in IEEE 802.3af.
• Via external DC power supply
Camera can get power from the Hirose 12-pin receptacle
via a standard I/O cable.Nominal operating voltage is
+12V~+24VDC (± 10%).
Voltage outside of the specified range or use of connectors that do not match the IO port may cause camera damage.
When you supply power to the camera both via the camera's RJ45 jack and via the 12-pin Hirose I/O port, the
camera will get power via the Hirose I/O port. And if you cut off the Hirose I/O port, the camera will get power via PoE and
may restart.
■
USB3.0 Interface Camera
Power supply through USB3.0 interface: 5VDC
MARS-G-P
MARS-5G-P
MARS-U3
www.daheng-imaging.com/en
II. Power
China Daheng Group, Inc. Beijing Image Vision
Technology Branch
Website: www.daheng-imaging.com/en
Sales Email: isales@daheng-imaging.com
Sales Tel: +86 10 8282 8878
Support Email: isupport@daheng-imaging.com
and download the latest driver and software from
MARS-G-P
MARS-G-P
MARS-G5-P
MARS-G5-P
MARS-U3
