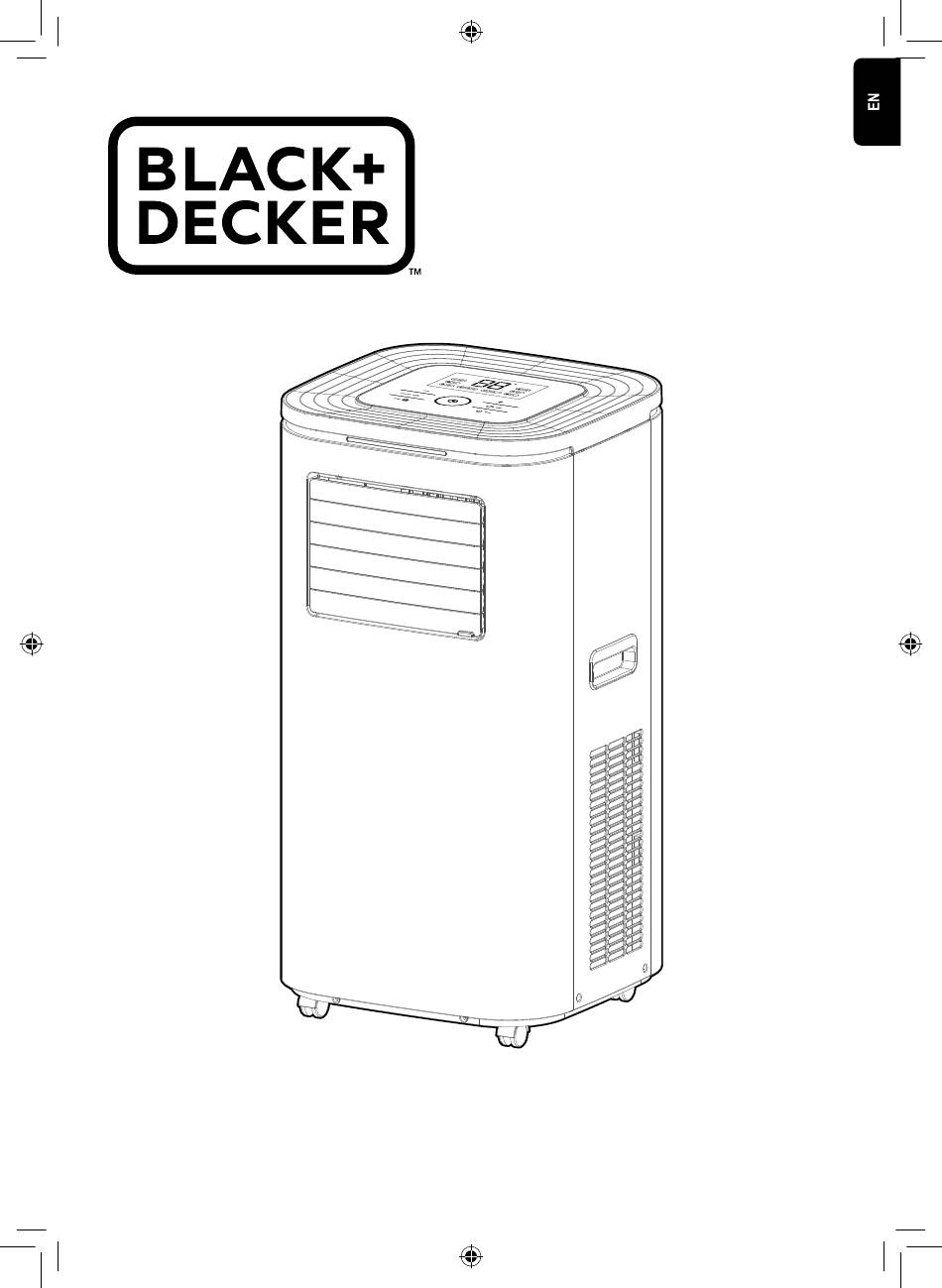

- Page 1 BXAC40011GB www.blackanddecker.co.uk...
- Page 2 ENGLISH (Original instructions) What’s in the box Features Handle Air Vent Instruction Manual Control Panel Remote Control Drainage Pipe Louvers Exhaust Pipe Outer Connector Exhaust Pipe and 2 Connectors Unit Housing Exhaust Pipe Inner Connector Window Kit Castors Exhaust Pipe Screw Fastener Set Rear Filter Drainage Pipe...
-
Page 3: Display Icons
(Original instructions) ENGLISH Display Icons Control Panel Low Fan Speed Decrease Temperature/Timer Key High Fan Speed Oscillation Key Oscillation Fan Speed Selector Key Water Tank Full Power ON/OFF Button Time/Temperature Display Increase Temperature/ Timer Key Timer Mode Timer ON/OFF Key Heating Mode Mode Selector Key Dehumidifying Mode... -
Page 4: Safety Instructions
ENGLISH (Original instructions) Using Your Appliance Intended Use Your BLACK+DECKER BXAC40011GB Portable Please read the operating 12,000 BTU 4-in1 Air Conditioner has been designed instructions carefully before using for cooling small and medium spaces. your air conditioner for the first time. -
Page 5: Safety Of Others
(Original instructions) ENGLISH After Use position where it can be pulled on by children or animals or tripped While cleaning, DO NOT use a wet ♦ over. cloth or use water on any part of Always unplug the unit when not in the unit, as this may cause a short ♦... - Page 6 ENGLISH (Original instructions) In the unlikely event the appliance Do not use the unit in dusty areas ♦ ♦ develops a fault, stop using it or in direct sunlight. immediately and seek advice from Do not put heavy objects on the ♦...
- Page 7 (Original instructions) ENGLISH Safety relating to refrigerant R290: Take care to store the appliance ♦ in such a way as to prevent These symbols on your device ♦ mechanical faults or damage from mean: occurring. This appliance is filled with ♦...
-
Page 8: Electrical Safety
ENGLISH (Original instructions) Servicing shall only be performed Extension cables & class 1 product ♦ on the grounds recommended ♦ A 3 core cable must be used as your tool is earthed and of class 1 construction. by the equipment manufacturer. ♦... -
Page 9: Installing The Battery
(Original instructions) ENGLISH Remote Control Assembling Your 4-in-1 Air Conditioner ON/OFF Button WARNING: Before performing any assembly or maintenance, switch the unit off and remove it from Timer Button the power supply. Setting Button ♦ Keep the drainage covers and the water plug on at all times when not draining the unit. - Page 10 ENGLISH (Original instructions) 2. Thread section B onto the end of section A and 7. Insert the connectors into both sides of the make sure the screw base is also inserted into exhaust pipe and rotate them to secure them. the screw hole of section B.
-
Page 11: Selecting Functions
(Original instructions) ENGLISH 14. Align the outer connector with the window kit’s ambient temperature is: outlet, then affix the exhaust pipe onto the Greater than or equal to 24°C, the unit will operate window kit. in cooling mode. Below 24°C, the unit will operate in low fan ventilation mode. -
Page 12: Dehumidifying Mode
ENGLISH (Original instructions) Heating Mode The Timer Function ♦ In Heating Mode the unit will blow out warm air to increase the ambient temperature. To select ♦ This unit is equipped with a 24-hour Heating Mode, press the ‘Mode’ button repeatedly programmable timer. -
Page 13: Draining The Unit
(Original instructions) ENGLISH ♦ Draining the Unit Remove the drain plug and plug cap, and connect the drainage pipe to the opening. If the drainage ♦ While the unit is operating, water will be extracted pipe is too stiff and/or cannot be attached, try from the air into the built-in water tank. - Page 14 ENGLISH (Original instructions) ♦ Cleaning the Housing Drain the unit of any water and ensure all parts are completely dry. ♦ To clean the unit’s housing, wipe it down with a ♦ Turn the unit on and run it in fan mode at the soft, damp cloth.
- Page 15 (Original instructions) ENGLISH Technical data Tel 0333 220 6089 BXAC40011GB Black & Decker® and BLACK+DECKER™ and the Input voltage V AC 220-240V Black & Decker® and BLACK+DECKER™ logos are registered trademarks of The Black & Decker® Frequency Corporation and are used under licence. All rights...
- Page 16 Model Identifier(s): BXAC40011GB Power Supply 220-240V∽ 50Hz Cooling Capacity 12000BTU/3.5KW 1300W (Cooling) Power/Ampere Consumption 1100W (Heating) 6.0A Air Volume Compressor Rotary Refrigerant R290/225g Fan Speed Timer 1 - 24 hours Working Temperature C - 32 Window Hose ⌀150 x 1500mm...
