Summary of Contents for National Instruments PXI-1033
Page 1

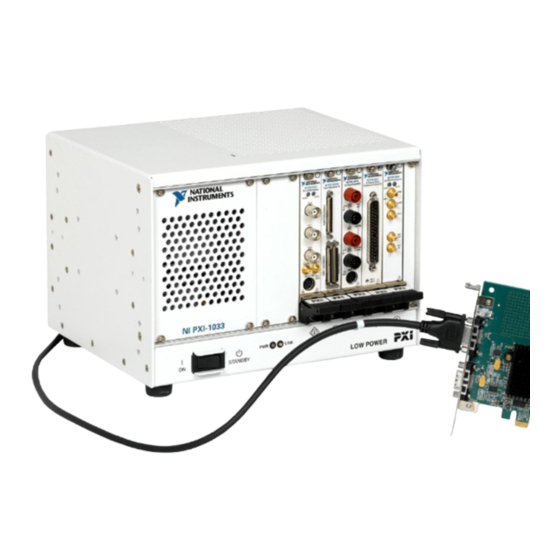

NI PXI-1033 5-Slot PXI Chassis with Integrated MXI-Express Controller In Stock Used and in Excellent Condition Open Web Page https://www.artisantg.com/76571-1 A l l t r a d e m a r k s , b r a n d n a m e s , a n d b r a n d s a p p e a r i n g h e r e i n a r e t h e p r o p e r t y o f t h e i r r e s p e c t i v e o w n e r s .
Page 2
NI PXI-1033 User Manual NI PXI-1033 User Manual May 2012 371991C-01 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 4
Warranty The PXI-1033 is warranted against defects in materials and workmanship for a period of one year from the date of shipment, as evidenced by receipts or other documentation. National Instruments will, at its option, repair or replace equipment that proves to be defective during the warranty period.
Page 5
CUSTOMIZED AND DIFFERS FROM NATIONAL INSTRUMENTS' TESTING PLATFORMS AND BECAUSE A USER OR APPLICATION DESIGNER MAY USE NATIONAL INSTRUMENTS PRODUCTS IN COMBINATION WITH OTHER PRODUCTS IN A MANNER NOT EVALUATED OR CONTEMPLATED BY NATIONAL INSTRUMENTS, THE USER OR APPLICATION DESIGNER IS ULTIMATELY...
Operation of this hardware in a residential area is likely to cause harmful interference. Users are required to correct the interference at their own expense or cease operation of the hardware. Changes or modifications not expressly approved by National Instruments could void the user’s right to operate the hardware under the local regulatory rules.
Key Features ........................1-2 Chassis Description......................1-3 Optional Equipment .......................1-5 EMC Filler Panels ...................1-5 Rack Mount Kit ....................1-5 Handle/Feet Kit ....................1-5 NI PXI-1033 Backplane Overview................1-6 Interoperability with CompactPCI ..............1-6 MXI Interface ....................1-6 Star Trigger Slot ....................1-6 Peripheral Slots....................1-7 Local Bus......................1-7 Trigger Bus......................1-8 System Reference Clock..................1-8...
Page 8
Cleaning and Replacing the Fan Filter ................3-2 Appendix A Specifications Appendix B Pinouts Appendix C Technical Support and Professional Services Glossary Index NI PXI-1033 User Manual ni.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
About This Manual The NI PXI-1033 User Manual contains information about installing, configuring, using, and maintaining the NI PXI-1033 chassis. Conventions The following conventions are used in this manual: » The » symbol leads you through nested menu items and dialog box options to a final action.
Specifications for Microcomputers Using IEC 603-2 Connectors • IEEE 1101.10, IEEE Standard for Additional Mechanical Specifications for Microcomputers Using IEEE 1101.1 Equipment Practice NI PXI-1033 User Manual ni.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Getting Started This chapter describes the key features of the NI PXI-1033 chassis, and lists the kit contents and optional equipment you can order from National Instruments. Unpacking Carefully inspect the shipping container and the chassis for damage. Check for visible damage to the metal work. Check to make sure all handles, hardware, and switches are undamaged.
If you are missing any of the items listed in Table 1-1, or if you have the incorrect AC power cable, contact National Instruments. Key Features The NI PXI-1033 combines a 5-slot PXI backplane with a structural design that has been optimized for maximum usability in a wide range of applications.
Getting Started Chassis Description Figure 1-1 and Figure 1-2 show the key features of the NI PXI-1033 chassis front and rear panels. Figure 1-1 shows the front view of the NI PXI-1033. Figure 1-2 shows the rear view of the NI PXI-1033.
Page 14
3 Power Supply Fan Exhaust 7 Rubber Foot 4 NI MXI-Express Chassis Controller Connector Figure 1-2. Rear View of the NI PXI-1033 Chassis NI PXI-1033 User Manual ni.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
EMC Filler Panels Optional EMC filler panel kits are available from National Instruments. Rack Mount Kit A rack mount kit option is available for mounting the NI PXI-1033 chassis into a 19 in. instrument cabinet. Handle/Feet Kit An optional side handle and rubber feet kit is available from National Instruments to provide a handle for portability.
64-bit specification. Therefore, all modules that meet the requirements of the CompactPCI 64-bit specification will function in the NI PXI-1033. Refer to Appendix B, Pinouts, for pinout information. The NI PXI-1033 backplane is 32-bit PCI. 64-bit CompactPCI cards will operate in Note 32-bit mode in this chassis.
System Reference Clock The NI PXI-1033 supplies the PXI 10 MHz system clock signal (PXI_CLK10) independently to each peripheral slot. An independent buffer (having a source impedance matched to the backplane and a skew of less than 250 ps between slots) drives the clock signal to each peripheral slot.
Installation and Configuration This chapter describes how to install, configure, and use the NI PXI-1033 chassis. Before connecting the chassis to a power source, read this chapter and the Read Me First: Safety and Electromagnetic Compatibility document included with your chassis.
Part Replacement—Only service this equipment with parts that are exact replacements, both electrically and mechanically. Contact National Instruments for replacement part information. Installation of parts with those that are not direct replacements may cause harm to personnel operating the chassis. Furthermore, damage or fire may occur if replacement parts are unsuitable.
Installation and Configuration 1 Air Outlets 2 Air Intake Figure 2-1. NI PXI-1033 Module Cooling Airflow Side View Install the chassis so that you can easily access the bottom panel. This simplifies replacing the air filters, if necessary. Setting Fan Speed The AUTO/HIGH fan-speed selector switch is on the rear panel of the NI PXI-1033.
Connecting Safety Ground The NI PXI-1033 chassis is designed with a three-position inlet that connects the Caution cord set ground line to the chassis ground. To minimize shock hazard, make sure the electrical power outlet you use to power the chassis has an appropriate earth safety ground.
Page 24
Chapter 2 Installation and Configuration Connect the cable to the NI ExpressCard module and the NI PXI-1033 chassis. Plug the NI ExpressCard module into an available ExpressCard slot. If your computer is already running (or hibernating) when you install NI ExpressCard module, you must reboot to detect the PXI system.
Figure 2-4. NI PCI Express Host Card Cable Connection Cabling Connect the appropriate MXI-Express cable to the NI PCI Express card and NI PXI-1033 chassis. The cables have no polarity, so either end may be connected to either connector. Caution Do not remove the cable after the system is powered on.
Refer to the MXI-3 or MXI-4 documentation for further details. The NI PXI-1033 chassis will assert a wake signal on power up. The host PC also will power on if it supports this functionality.
Chapter 2 Installation and Configuration Checking LEDs for Status After powering on the NI PXI-1033 chassis you should check the LEDs for status to ensure that all connected systems have linked. The following table defines the LED states. Table 2-1. LED Status for the NI PXI-1033 Chassis...
Chapter 2 Installation and Configuration MXI-Express Cable Options MXI-Express is available with cables of various lengths. Table 2-2 shows the cables available from National Instruments. Table 2-2. National Instruments MXI-Express Cables Cable Length (Meters) Description MXI-Express copper cable MXI-Express copper cable...
Chapter 2 Installation and Configuration 1 NI PXI-1033 Chassis 3 Injector/Ejector Handle 2 Injector/Ejector Rail 4 PXI Module Figure 2-5. Installing PXI or CompactPCI Modules PXI System Configuration with MAX Configuration of the PXI system is handled through Measurement &...
Basic PXI System Configuration The Platform Services 2.1 (or higher) software provided on the NI Driver CD-ROM will automatically detect your NI PXI-1033 chassis. To manually configure your chassis follow the steps outlined below. Refer to Figure 2-6 while completing the following steps: Launch MAX.
“pre-allocates” a trigger line to prevent its configuration by a user program. Dynamic reservation/routing/deallocation is performed on the fly within a user program based upon National Instruments APIs such as NI-DAQmx. Static reservation of trigger lines can be implemented by the user in MAX through the Triggers tab.
.ini The capability documentation for the NI PXI-1033 chassis is contained in file on the software media that comes with the chassis. chassis.ini The information in this file is combined with information about the system controller to create a single system initialization file called pxisys.ini...
Maintenance This chapter describes basic maintenance procedures you can perform on the NI PXI-1033 chassis. Disconnect the power cables prior to servicing the chassis. Caution Service Interval Clean the chassis fan filter at a maximum interval of six months. Depending on the amount of use and ambient dust levels in the operating environment, the filter may require more frequent cleaning.
To remove the filter cover, loosen the retainer screw. The filter cover is shown in Figure 1-3, Bottom View of the NI PXI-1033 Chassis. Clean the fan filter by washing it in a mild soap solution and then vacuuming or blowing air through it.
Specifications If the NI PXI-1033 chassis is used in a manner inconsistent with the instructions Caution or specifications listed by National Instruments, the protective features of the chassis may be impaired. Specifications are subject to change without notice. Note This appendix contains specifications for the NI PXI-1033 chassis.
101.1 CFM fan with High/Auto speed selector Intake ..........Bottom of chassis Exhaust ..........Along rear, right side, and top of chassis NI PXI-1033 User Manual ni.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 40
Sound Power Tested in accordance with ISO 7779. NI PXI-1033 Auto fan (at 25 °C ambient) ....43.8 dBA High fan ...........60.9 dBA NI PXI-1033 User Manual ni.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
............+5 V V(I/O) is connected to the +5 V DC power plane, so the same specifications apply to V(I/O) and +5 V. NI PXI-1033 User Manual ni.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 44
Appendix A Specifications Figure A-1 and Figure A-2 show the NI PXI-1033 dimensions. The holes shown are for the installation of the optional rack-mount kits as shown in Figure A-3. Notice that the front and rear rack mounting holes (size M4) are symmetrical.
Page 46
Appendix A Specifications Figure A-3 shows the NI PXI-1033 rack mount kit components. 1 NI PXI-1033 Chassis 2 Rack Mount Kit Figure A-3. NI PXI-1033 Rack Mount Kit Components NI PXI-1033 User Manual A-10 ni.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 47
Pinouts This appendix describes the P1 and P2 connector pinouts for the NI PXI-1033/NI PXI-1033 backplane. Table B-1 shows the P1 (J1) Connector Pinout for the star trigger slot. Table B-2 shows the P2 (J2) Connector Pinout for the star trigger slot.
Page 53
You also can visit the Worldwide Offices section of ni.com/niglobal to access the branch office Web sites, which provide up-to-date contact information, support phone numbers, email addresses, and current events. NI PXI-1033 User Manual ni.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 55
Direct current Declaration of Conformity efficiency Ratio of output power to input power, expressed as a percentage Electronic Industries Association NI PXI-1033 User Manual ni.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 57
Megahertz—One million Hertz; one Hertz equals one cycle per second Millisecond—One thousandth of a second (10 –3 NEMA National Electrical Manufacturers Association National Instruments NI PXI-1033 User Manual ni.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 58
Glossary NI-DAQmx National Instruments driver that controls the operation of National Instruments data acquisition (DAQ) devices NI-VISA National Instruments implementation of the VISA (Virtual Instrument System Architecture) I/O standard. NI-VISA provides support for the VISA API, and also provides VISAIC, a utility for instrument configuration and I/O function execution.
Page 59
The PXI backplane specification defines implementation guidelines for PXI_CLK10. Transistor-transistor logic Underwriter’s Laboratories Volts Volts alternating current, or V Peak-to-peak voltage Watts NI PXI-1033 User Manual ni.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 60
Index Numerics conventions used in the manual, viii cooling 10 MHz system reference clock, A-7 air cooling of NI PXI-1033, 2-2 air intake (figure), 2-3 filler panel installation, 2-3 setting fan speed, 2-3 AC power cables (table), 1-2 Declaration of Conformity (NI resources), C-2...
Page 61
C-1 routing (figure), 1-7 star trigger and local bus routing (figure), 1-7 installation cabling, 2-9 maintenance of NI PXI-1033, 3-1 hardware, 2-5 cleaning of an NI ExpressCard module, 2-5 exterior cleaning, 3-2 of an NI PCI Express host card, 2-7...
