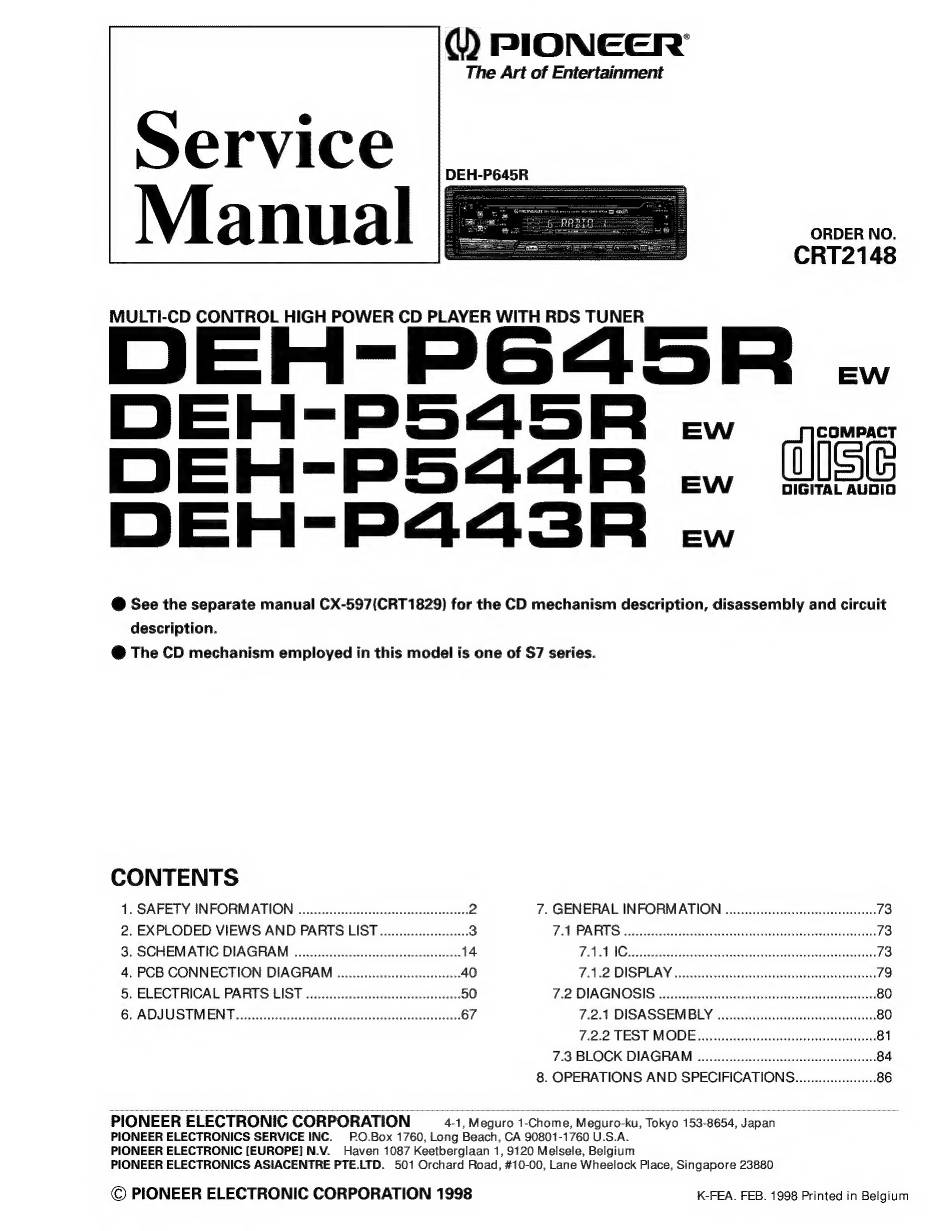

Pioneer DEH-P645R Service Manual

@) PIONEER'
The Art of Entertainment
Service
anual
MULTI-CD CONTROL HIGH POWER CD PLAYER WITH RDS TUNER
He-PG645R ..
DEH-P545R
ew ee
DEH-P544R
.w Gs
DEH-P443R wv
@ See the separate manual CX-597(CRT1829) for the CD mechanism description, disassembly and circuit
description.
DEH-P645R
ORDER NO.
CRT2148
@ The CD mechanism employed in this model is one of $7 series.
CONTENTS
1. SAFETY INFORMATION ..........cccecsesssessseseeseeereenees 2 7. GENERAL INFORMATION
2. EXPLODED VIEWS AND PARTS LIST............essceceeee 3 7.1 PARTS
3. SCHEMATIC DIAGRAM ........:.cescccseseeeseeesseeseeeeeeeees 14
4. PCB CONNECTION DIAGRAM .........ccecssessseseeeereeeee 40 7.1.2 DISPLAY...
5. ELECTRICAL PARTS LIST... cssesssessessesessesereneeeeee 50 7.2 DIAGNOSIS os eseseseseseseseeeseeeeeessesseeseeneeenneenreet!
6. ADJUSTMENT.......ccccsssesssssesssesseseeesesesrscarsessneneneenee 67 7.2.1 DISASSEMBLY .....cccseeseesereseeeteeenrees
7.2.2 TEST MODE...
7.3 BLOCK DIAGRAN ....
8. OPERATIONS AND SPECIFICATIONG..........:0000 86
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC. PO.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 501 Orchard Road, #10-00, Lane Wheelock Place, Singapore 23880
© PIONEER ELECTRONIC CORPORATION 1998 K-FEA. FEB. 1998 Printed in Belgium
