RAZERTIP SS-D10 Manual

Hide thumbs Also See for SS-D10:
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

Razertip SS-D
5010480
Thank you for choosing a Razertip ® Tool. Please take a few minutes to read these instructions.

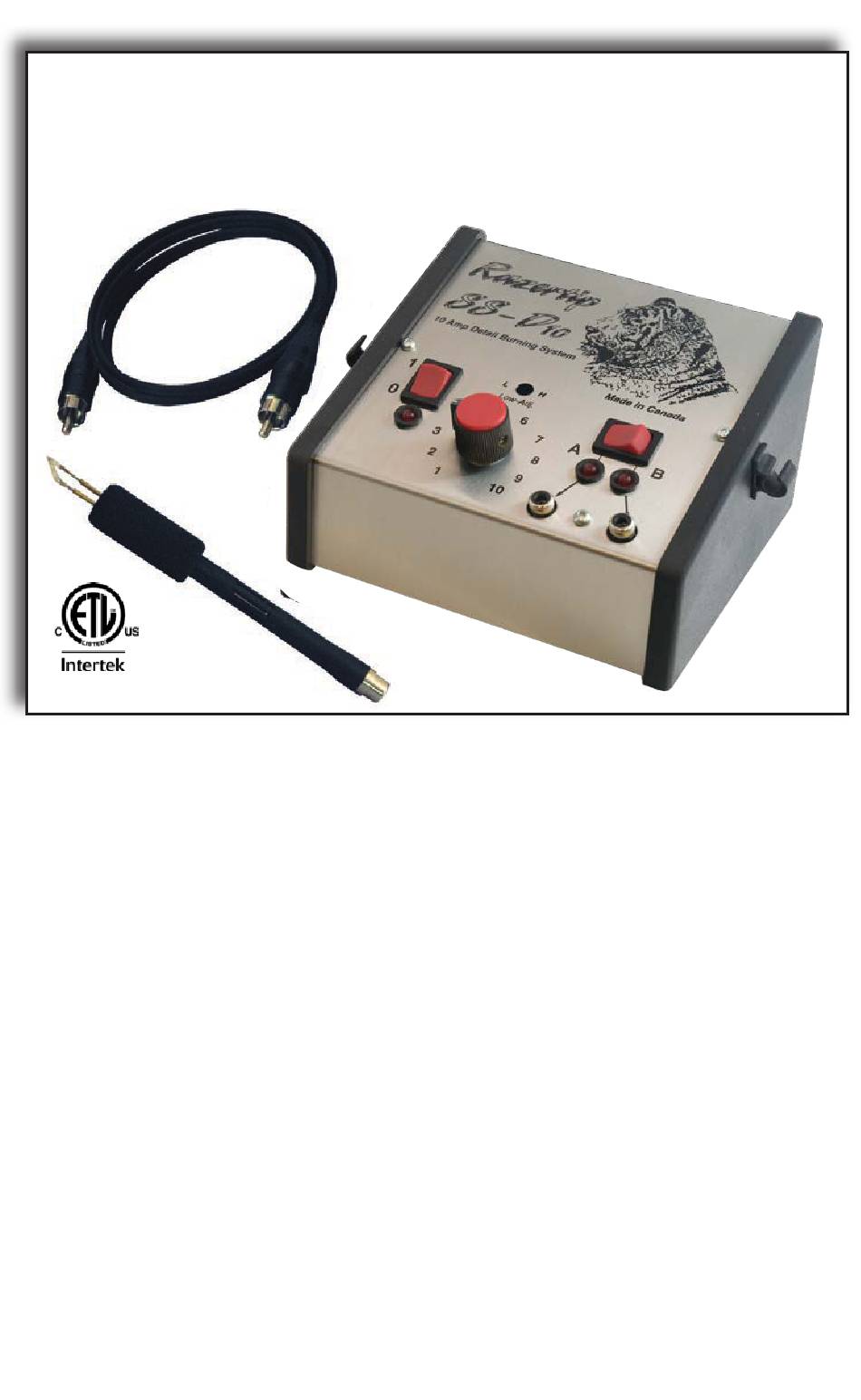

The SS-D10 features a ETL C-US solid state power supply and some of the finest tips made.
Razertip ® tools will provide many years of dependable service if properly used and maintained.
Shock Hazard: Do not open the cabinet. No user serviceable parts inside. Use only under
the supervision of an adult. Keep this and all power tools well away from water or sources of
moisture. If the supply cord is damaged, it must be replaced by Razertip, its service agent or
similarly qualified persons in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
• Keep this and all tools away from children. This tool should not be used by children unless
under the direct supervision of an adult. Children should be supervised to ensure that they do
not play with the appliance.
• Always be sure to have adequate ventilation. Many materials give off dangerous fumes when
burned.
• A fire may result if the appliance is not used with care.
• The hand piece must be placed on its stand when not in use.
• Do not use excessive pressure on tip. If a deep cut is required, turn the temperature up
and let the heat do the cutting. If necessary, heavy-duty handpieces are available. They will
withstand considerably more pressure than the standard pens.
• Any technical questions concerning this product can be directed to Razertip (contact
information on page 8).
®
Warnings
10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SS-D10 and is the answer not in the manual?

Questions and answers

Related Manuals for RAZERTIP SS-D10

Summary of Contents for RAZERTIP SS-D10

  • Page 1 Thank you for choosing a Razertip ® Tool. Please take a few minutes to read these instructions. The SS-D10 features a ETL C-US solid state power supply and some of the finest tips made. Razertip ® tools will provide many years of dependable service if properly used and maintained.
  • Page 2 Carbon Build-up. Carbon build-up on tips can be quickly and effectively removed with one or two passes over a Razertip tip cleaner/scraper. This economical cleaner won’t wear out your tip, and you can leave your burner on when using it. One hand operation means you don’t have to put your work down, either.

  • Page 3: Basic Operation

    Basic Operation The Razertip ® SS-D10 is very easy to use. Plug one end of the handpiece cord into the handpiece jack. Plug the other end into the back of the handpiece. Be sure that the connectors are fully seated. Turn the main power switch “on”, then adjust the handpiece temperature with the dial on the front panel (“1”...

  • Page 4: Faq's (Frequently Asked Questions)

    “annealing” (or softening) the tip would not be possible when using the pen on a Razertip power supply as the tip will hold its temper (or hardness) right up to 1700ºF. Heating the tip beyond 1700ºF would actually weaken the tip and shorten its useful life.

  • Page 5: Troubleshooting Guide

    Troubleshooting Guide If the guide below doesn’t solve a problem, contact your dealer or Razertip before returning product for service. Symptom Diagnosis Suggested Solution Handpiece used at too Allow cooling time for handpiece if high heat is high heat setting for too necessary.
  • Page 6 16-gauge cord is available. It handles the 10 amps very well, providing superior tip Razertip’s hot-wire tools allow you to work heat recovery and stability. But it’s heavier with your fingers positioned close to the work surface.
  • Page 7 The chart below shows approximate temperatures of a Razertip SS-D10 using a #1L fixed tip with a Razertip #1 Flex cord. This chart is intended to provide you with an idea of the temperature range on a Razertip tool and to show how the temperatures are evenly distributed over the entire range of the heat dial.

  • Page 8: Warranty Information

    To receive in or out-of-warranty servicing, return the complete unit including any cord(s), pen(s) and/or tip(s) to your dealer or send it directly (prepaid) to Razertip at the address below.
