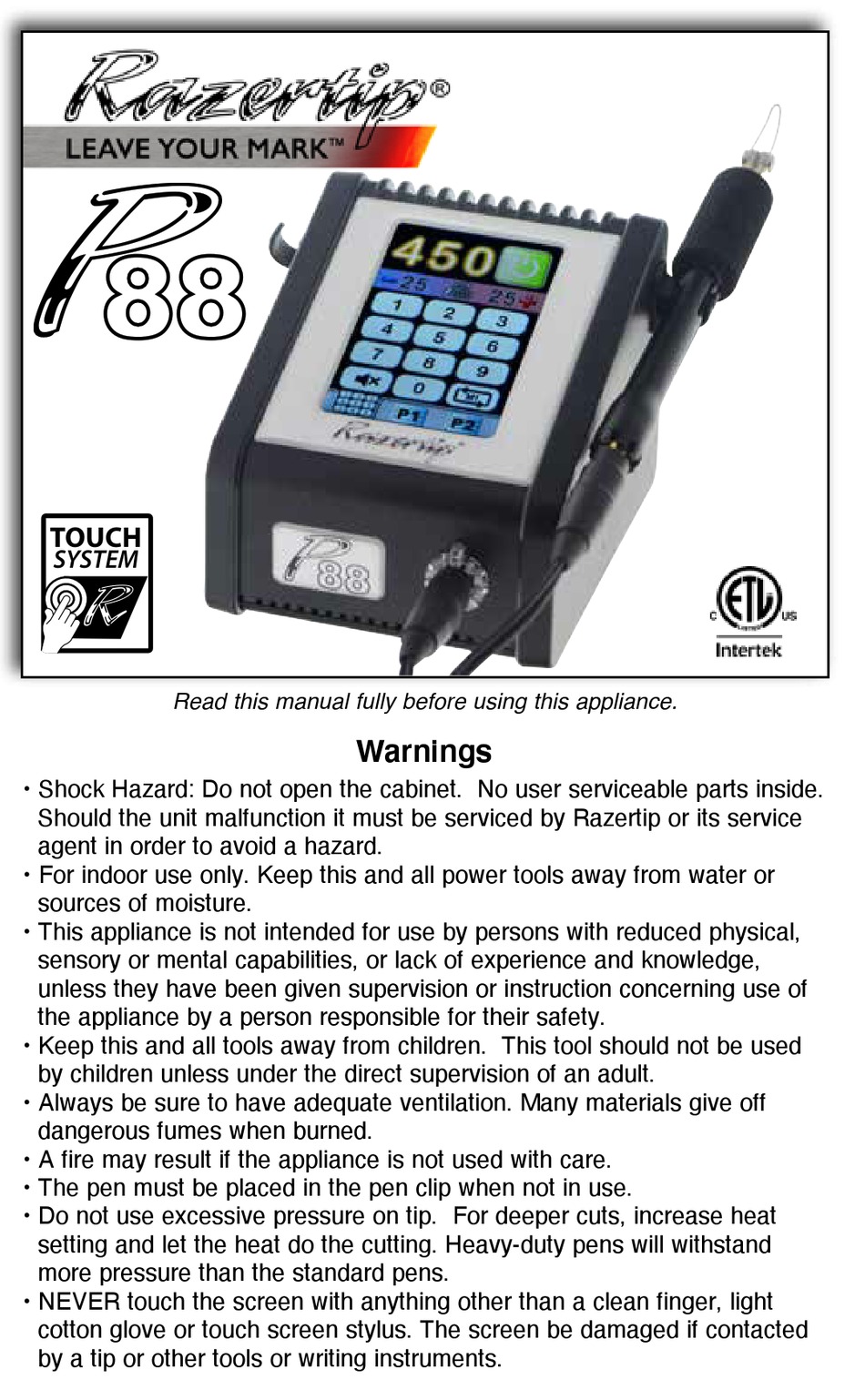

Read this manual fully before using this appliance.
• Shock Hazard: Do not open the cabinet. No user serviceable parts inside.
Should the unit malfunction it must be serviced by Razertip or its service
agent in order to avoid a hazard.
• For indoor use only. Keep this and all power tools away from water or
sources of moisture.
• This appliance is not intended for use by persons with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
• Keep this and all tools away from children. This tool should not be used
by children unless under the direct supervision of an adult.
• Always be sure to have adequate ventilation. Many materials give off
dangerous fumes when burned.
• A fire may result if the appliance is not used with care.
• The pen must be placed in the pen clip when not in use.
• Do not use excessive pressure on tip. For deeper cuts, increase heat
setting and let the heat do the cutting. Heavy-duty pens will withstand
more pressure than the standard pens.
• NEVER touch the screen with anything other than a clean finger, light
cotton glove or touch screen stylus. The screen be damaged if contacted
by a tip or other tools or writing instruments.
Warnings

Advertisement

loading
Need help?

Need help?

Do you have a question about the P88 and is the answer not in the manual?

Questions and answers

Related Manuals for RAZERTIP P88

Summary of Contents for RAZERTIP P88

  • Page 1 Warnings • Shock Hazard: Do not open the cabinet. No user serviceable parts inside. Should the unit malfunction it must be serviced by Razertip or its service agent in order to avoid a hazard. • For indoor use only. Keep this and all power tools away from water or sources of moisture.
  • Page 2 Cooling Fan Vents - The P88 has an automatic fan to keep the power supply from overheating. Do not to block the fan openings. * if using a power cord other than the cord supplied with the P88 you must use a safety-approved C8 power cord for the country in which the...

  • Page 3: Input Screens

    Input Screens Heat Setting Display Bar: displays heat setting and idle/active modes. Pen Power Icon: starts or stops heat to pen (Pg. 5). Nudge Bar: + and - icons nudge heat up or down by set value (Pg. 6). Keypad Tab: input heat setting, mute/unmute and cycle memory key. Sound Key: turn keypad beeper tone on/off (Pg.

  • Page 4: Basic Operation

    C. Be sure that the connectors are fully seated (see page 11). D. Turn the main power switch “on”. E. Wait for screen to activate and the P88 is ready to use. 1. Input heat setting. The heat setting input is always 3 digits.
  • Page 5 All memory and user presets will remain intact after power is shut off. 5. Auto-Off Feature. The P88 will stop power to the pen after 60 minutes of no screen input activity. The unit will beep and revert to idle mode. To re-power the pen again simply touch the green Pen Power Icon.
  • Page 6 6. Using the memory function. The P88 has three built-in memory channels that allow storage of preferred heat settings. The memory key will show either “M1”, “M2”, “M3”, or “X”. Touch memory key to cycle through channels. To store a heat setting into any of the 3 channels, enter a heat setting when desired memory channel is showing.
  • Page 7 9. User-presets on P1 and P2 Tabs. You can program and store up to 8 presets on the P88, each with unique descriptions and heat settings. • P1 Tab displays presets 1-4 • P2 Tab displays presets 5-8 To program a preset: Hold the desired preset line for 2 seconds to access the “Preset Description Input...
  • Page 8 1”x1-1/4” Attaching expansion modules is easy. Remove the magnetic right end panel on the P88, align the units and push them together. Place the end panel on the module. When power is turned on, all screens will come on. Touch any of the green pen power icons to activate that pen/screen.

  • Page 9: Faq's (Frequently Asked Questions)

    Q. Can I use a heavy-duty pen cord on the P88? A. Yes you can. But because of the type of current that the P88 supplies to the tip there is no real advantage to using the HD pen cord. Razertip’s standard 18ga.
  • Page 10 Should you ever want or need to replace the tip on your Razertip ® fixed-tip pen, simply return the pen to us and we will install the tip of your choice for a very reasonable fee (or no charge under warranty).
  • Page 11 Fully seated Not fully seated For your records, please record the date of purchase and your Razertip ® dealer information below. Should your Razertip ® product ever require service you can contact your dealer or send the product directly to Razertip.
  • Page 12 For in or out-of-warranty servicing, return the complete unit including any cord(s) and pen(s) to your dealer or send it directly (prepaid) to Razertip ® . Technical Data Type: Power regulated, touch screen digital hot-wire pyrography tool Model: P88 Input: 100-240VAC, 50-60Hz, 1.0A...
