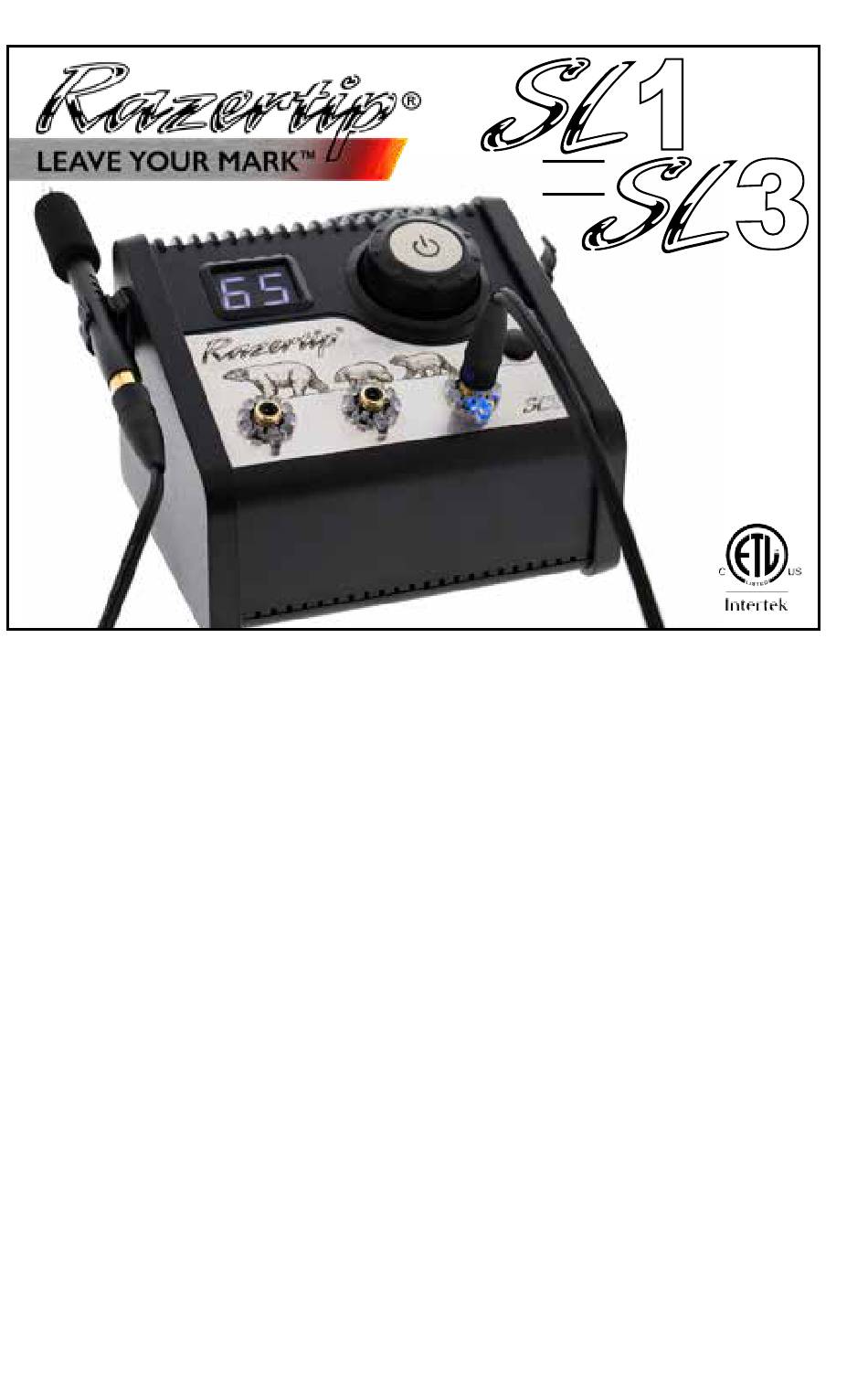

Please take a few minutes to read these instructions. Model SL burners are ETL C-US
safety certified solid state power supplies. They will provide many years of dependable
service if properly used and maintained.
Because of the high output of the SL Burner Standard Pens are not recommended at
Shock Hazard: Do not open the enclosure. No user serviceable parts inside. Use only
under the supervision of an adult. Keep this and all power tools well away from water or
sources of moisture.
• Do not use excessive pressure on tip. If a deep cut is required, turn the temperature up
and let the heat do the cutting.
• Keep this and all tools away from children. This tool should not be used by children
unless under the direct supervision of an adult.
• Always be sure to have adequate ventilation. Many materials give off dangerous fumes
when burned.
• Any technical questions concerning this product can be directed to Razertip Industries
Inc. (contact information on page E12).
• This tool is an attended appliance, do not use unattended
• Power cord: If the cord is damaged, it must be replaced by a special cord or assembly
available from the manufacturer or its service agent.
• Do not use this tool if the enclosure broken.
• Instructions en français voir page F1 • Instrucciones en español ver página S1
Thank you
for choosing a Razertip
Caution
settings greater than 60 as damage may occur.
Warnings
AND
Tool.
®
Advertisement
Related Manuals for RAZERTIP SL1
Summary of Contents for RAZERTIP SL1
- Page 1 • Always be sure to have adequate ventilation. Many materials give off dangerous fumes when burned. • Any technical questions concerning this product can be directed to Razertip Industries Inc. (contact information on page E12). • This tool is an attended appliance, do not use unattended •...
-
Page 2: Basic Operation
Cooling Fan Vents: Be careful not to block the fan openings. * if using a power cord other than the cord supplied with the SL1/SL3 you must use a safety-approved C8 power cord for the country in which the unit is being used. - Page 3 Model SL3 shown ✔ ✔ Fig. 1...
- Page 4 Jack Light Bezel A slow pulsing white light will indicate that no power is being supplied to the pen (idle state). When the Pen Power Switch at the center of the Heat Adjust Knob is pressed and released power will be supplied to the Pen Jack, and the Jack Light Bezel will change to blue.
- Page 5 60 as damage may occur. Razertip Pens and Tips. A copy of our product catalogue should accompany these instructions. If you would like additional copies, please contact us (See page E12). You can also download the latest catalogue at www.razertip.com.
- Page 6 Q. Can I use a standard cord on an HD pen, or vice-versa? A. Yes. Any Razertip cord can be used with any Razertip pen, but SL burners are best used with HD cords.
- Page 7 Tip FAQ’s Q. Is there anything special I have to do (i.e annealing or tempering) to my pen/tips before I use them? A. No. There is nothing to do other than to simply connect everything and start burning. Q. There are so many tip shapes to choose from, and I don’t want to be stuck with a pen or tip that I can’t use.
- Page 8 While most wire tips are formed from a single piece of wire, Razertip also fuses various metals directly to some tips allowing “hybrid” tips that offer the best of both worlds.
- Page 9 Fundamentals of Pyrography Tools (Continued from previous page) The two pen cords available from Razertip use the most flexible cables possible that can handle the high current flow. The extra-flex cord is an 18-gauge cable that slightly restricts the current flow to your tip. For maximum tip heat recovery, the heavy-duty 16-gauge cord is available.
-
Page 10: Troubleshooting Guide
Troubleshooting Guide If the guide below doesn’t solve a problem, contact your dealer or Razertip before returning product for service. Symptom Diagnosis Suggested Solution (BPH pen only) Poor contact Be sure that the screws are snug between the tip and the pen. - Page 11 (see page E4) (see page E4) There is no need to register Razertip products for warranty. For your records, please record the date of purchase and your Razertip dealer information below. Should your Razertip product ever require service you can contact your dealer or send the product directly to Razertip Industries.
-
Page 12: Warranty Information
To receive warranty or out-of-warranty servicing, return the complete unit including any cord(s), pen(s) and/or tip(s) to your dealer or send directly (prepaid) to Razertip Industries Inc. at the address below. Technical Data...
