1.Product's information
This product use with new technical design and high quality material.
Producing with abortive process and strict control,all of the products
have the same quality and capability.
2.Product's capability
This product suitable for room door lock,bathroom lock,passage lock,
room door lock outside use with the key to lock and unlock,inside use
knob to lock and unlock:bathroom lock could use the rigidity flat thing
to open the lock,when people in hurry outside,inside could revolve the
knob to control lock and unlock.
3.Set up method
1)According to the set up information paper picture open a hole in the
right place.suitable door lock thickness between 35mm to 45mm
2)Put the latch to the latch hole,make sure the arrow of latch is up,
latch face to door closing way.
3)Set up the block over,firstly put the block over(with the handle
together) into the lock cover,then use the same method to set up the
block cover,use screw to fastness the block cover,adjust to the
suitable position,try to open the lock with the key,and recover the
knob open the lock,if it is fine to open,fastness all the screw.
4)Set up the buckle case sang buckle board in the right position on the
door.
4.Use manual and safety
1)Unchain the room lock safety:put the key in the lock and revolve 90
with clockwise or put the knob horizontal when you are inside,then open
the lock safety.
2)Chain the room lock safety:put the key in the lock and revolve 90 with
anti-clockwise or put the knob vertical,then close the lock safety.
3)Set up the lock after the oil paint dry,avoid any cankerous things form
the board and the handle,avoid the spindle things touch the board and
handle.
Inside handle
Latch
Inside board
Square core
Scaleboard
Revo lve lingua
Scaleboard screw
Lock buckle board
door buckle board
02

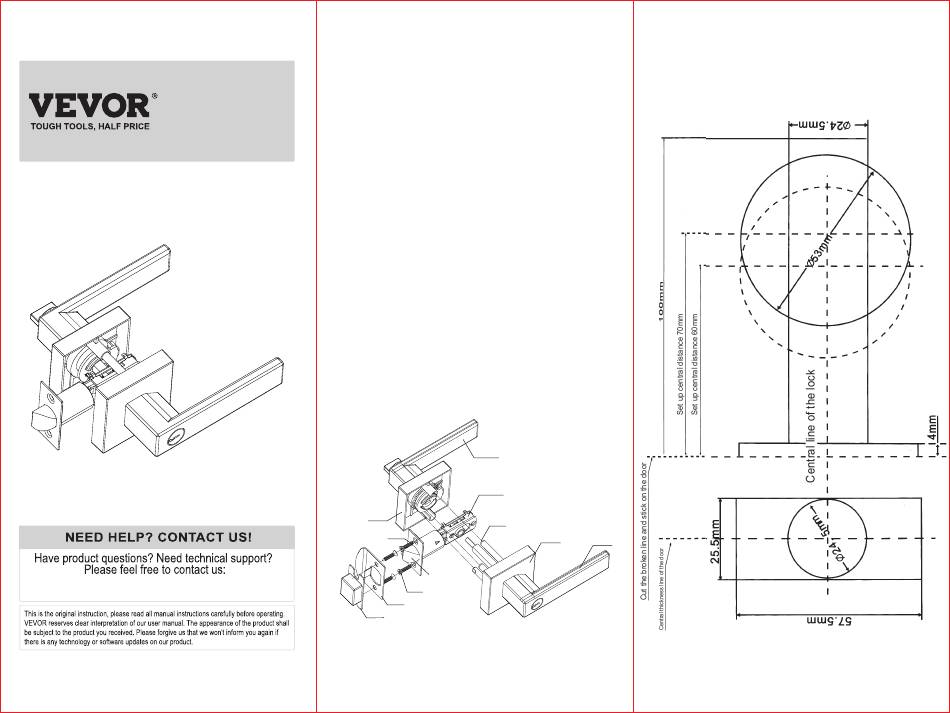

SET UP INFORNATION PAPER PICTURE
structural draw ing
Outside boarb Outside handle
