Summary of Contents for Chord Electronics Suzi

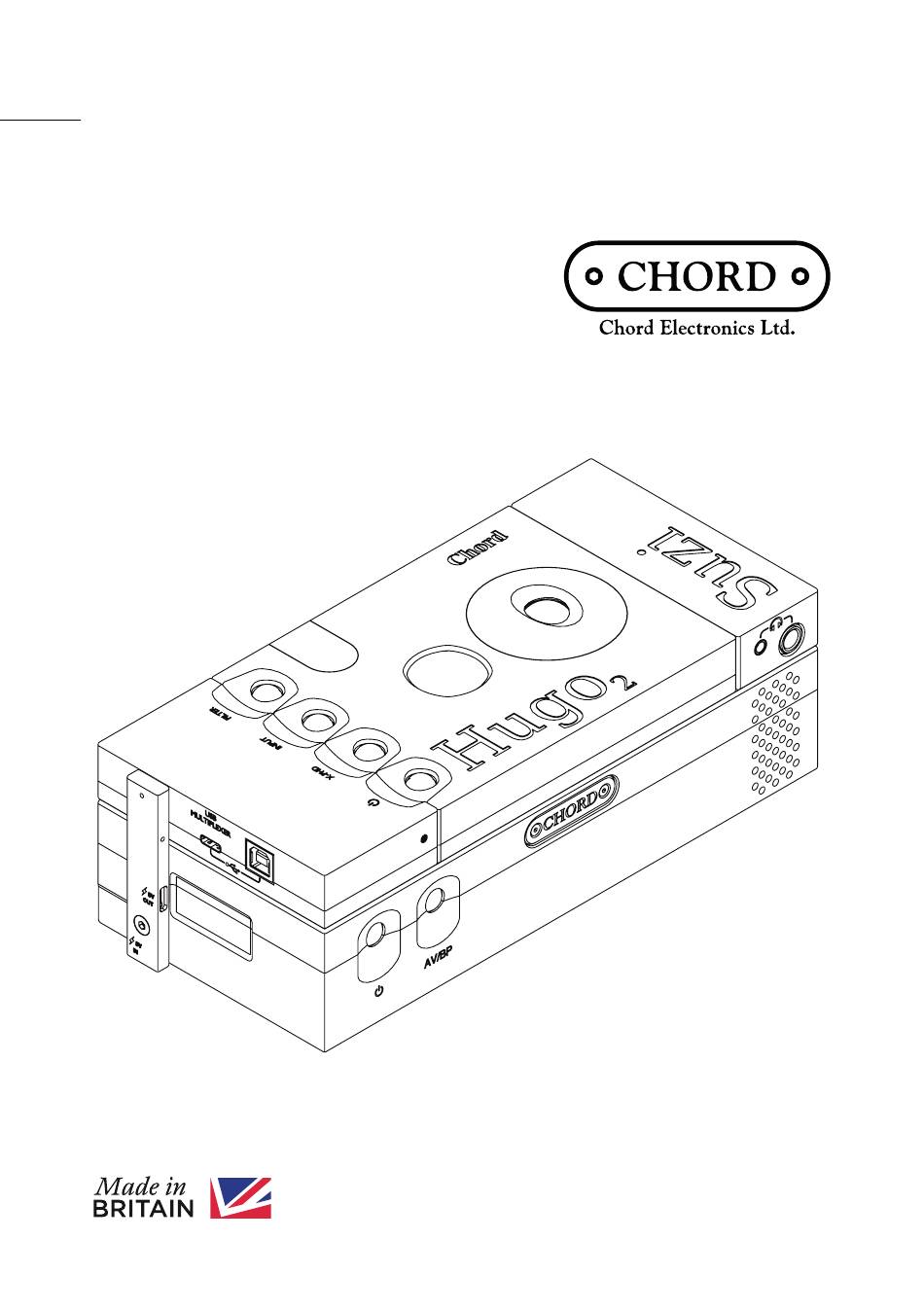

- Page 1 Chord Electronics The Pumphouse, Farleigh Lane, East Farleigh, Kent, Product Communication | English ME16 9NB. Great Britain. +44 (0) 1622 721 444 info@chordelectronics.co.uk chordelectronics.co.uk Suzi Manual...
- Page 2 Chord Electronics Suzi | User manual Contents Introduction Support and warranty Connections and controls Operation Technical specifications...
- Page 3 Suzi | User manual 2 Introduction The Suzi power amp is a highly configurable ULTIMA technology stereo power/amplifier. Its clever flexibility allows it to be arranged in a variety of ways to create adaptable playback solutions for a wide range of needs.
- Page 4 Chord Electronics Suzi | User manual 3 Support and warranty The Suzi power amp benefits from a three-year warranty covering defects in materials and workmanship through fair wear and tear • Register your device online for the best aftersales support: www.chordelectronics.co.uk/register-...
- Page 5 12 V power input Power on/off AV bypass (for Suzi Pre) Headphone outputs: (when connected to Suzi Pre or Hugo 2) 1x 3.5 mm; 1x 6.35 mm (1/4 inch) 5 V Micro USB (for use with the charging bridge assembly, when...
- Page 6 Chord Electronics Suzi | User manual 4.2 Remote control NOTE: The remote will only work with a Chord Electronics unit such as the Suzi Pre Power button Mute Input cycle Volume control + Volume control - Input cycle Input 1...
- Page 7 (for on); press the power button again to return the unit to standby (red). The Suzi power amp uses very little power in standby mode and can be connected to power at all times. The Suzi with a pre-existing preamplifier The Suzi power amp is supplied as a standalone stereo power amplifier and a (removeable) pre-fitted cover block if supplied for this purpose.
- Page 8 Adding the Suzi Pre transforms the Suzi power amp into an analogue pre/power amplifier with phonostage. With all cables to the Suzi Pre and the Suzi power amp disconnected, carefully place the Suzi Pre atop the Suzi power amp, ensuring they are aligned, before gently sliding the Suzi Pre rightwards, to connect the Suzi Pre’s (female) outputs to the Suzi power amp’s (male) inputs.
- Page 9 The respective power cables/supplies can now be attached and with all connections made as per section 4 Connections and Controls and the respective Suzi Pre manual, power to the units can be switched on, and the Suzi power amp power button depressed, to make the units ready for playback.
- Page 10 With power cables to the Suzi power amp disconnected, carefully place the Hugo 2/USB multiplexer atop the Suzi power amp, ensuring they are aligned, before gently sliding the units rightwards, to connect the Hugo 2’s (female) outputs to the Suzi power amp’s (male) inputs. (See 5.2 for a guide)
- Page 11 With the two units connected, secure them with the supplied charging bridge assembly, which provides charging power to the Hugo 2 when the Suzi power amp is powered off, along with a convenient high- current 5 V USB-C power output for ancillary devices. For constant charging, use the 5 V charger supplied with either the Hugo 2 or 2go.
- Page 12 5.4 The Suzi with the Hugo 2 and the 2go streamer/player Adding the Hugo 2 and the 2go transforms the Suzi power amp into a highly flexible streaming amplifier with Wi-Fi and Ethernet connectivity, plus library storage and playback from the 2go’s twin 1 TB microSD card slots.
- Page 13 Suzi | User manual Headphone operation The Suzi power amp offers a headphone output from connected sources via its 1x 3.5 mm; 1x 6.35 mm (1/4 inch) headphone connections, which can be used simultaneously so two can listen. When connecting headphones, please ensure the volume on partnering equiptment is set to zero before slowly increasing to a comfortable level.
- Page 14 Length 215 mm, Width 100 mm Height 69 mm Weight Suzi power amp - 2380 g Suzi power amp, Hugo 2 & USB adapter - 1909 g Suzi power amp, Hugo 2 & 2go - 1968 g Suzi power amp & Suzi pre - 2015 g Power output 30 W into 8 Ω...
