User Guide
Designed By: Cemal ÖZÇELİK
Version: 3.0
Release Date: 08.05.2024

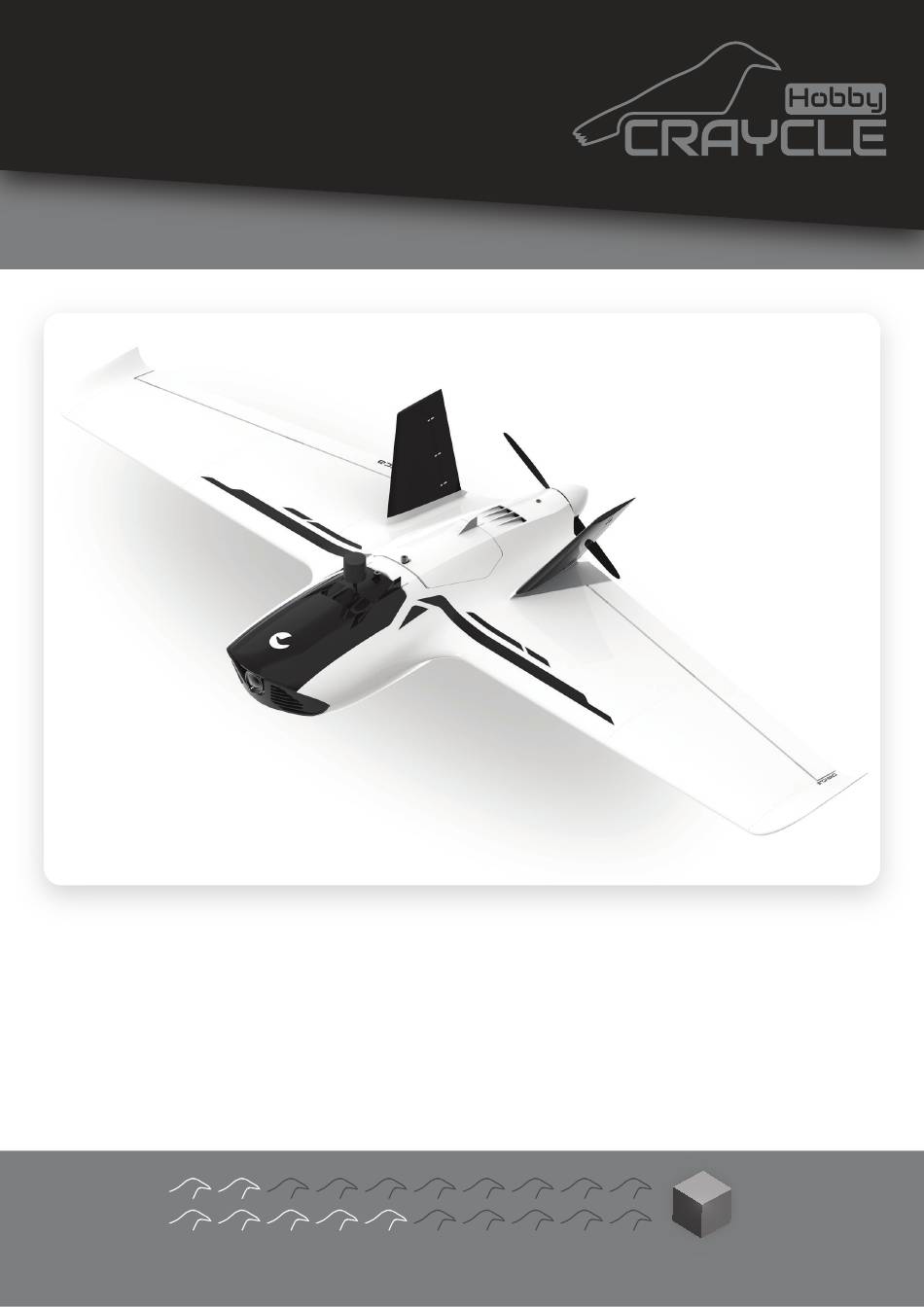

FPV Orca
General Specifications
Length
Wingspan
Print Weight
Flight Weight
Wing Area
Wing Loading
Airfoil
Maker Skill
Pilot Skill
© 2024 Craycle Hobby. Copies allowed for personal use only. Not for commercial use.
: 365
14.4
mm
: 800
31.5
mm
: 246
8.7
g
: 490
17.2 oz.
g
: 12.5
dm2
: 39.2
g/dm2
: MH 45 9.85%
www.craycle.com
Recommended Setup
Motor
inches
Propeller
inches
ESC
oz.
Servo
Battery
3+ Channels Radio with Elevon Mix
Analog/Digital FPV systems
: 2205 2300
kv
: 6040 - 2 Blade
: 30A
: 2 X 9
g
: 3s-4s 800-2200
Min. Printer Size
150*150*150 mm
Filament
Regular PLA
mAh
Advertisement
Related Manuals for Craycle Hobby FPV Orca
Summary of Contents for Craycle Hobby FPV Orca
- Page 1 3+ Channels Radio with Elevon Mix g/dm2 Airfoil : MH 45 9.85% Analog/Digital FPV systems Min. Printer Size Maker Skill 150*150*150 mm Filament Pilot Skill Regular PLA © 2024 Craycle Hobby. Copies allowed for personal use only. Not for commercial use.
-
Page 2: Optional Equipments
Elevons: 4. hole Flap Movements (X) 1 2 3 4 5 6 Elevons: 11 mm Radio Settings for the Servos Expos: 35% Rates: 75% Payload/Lipo Dimensions 60x40x115mm © 2024 Craycle Hobby. Copies allowed for personal use only. Not for commercial use. -
Page 3: Part List
Part List 9 10 11 © 2024 Craycle Hobby. Copies allowed for personal use only. Not for commercial use. - Page 4 Have a napkin with you and distribute the overflowing adhesive onto the joint surface. This process will strengthen the model. When spraying directly on CA, do not be excessive and spray from a distance. © 2024 Craycle Hobby. Copies allowed for personal use only. Not for commercial use.
- Page 5 Then you can install the "spinner_cap" while assembling the propeller. Insert your servos according to the direction as shown on the model. Ø5x360mm_CF_rod spinner_base spinner_adaptor spinner_cap © 2024 Craycle Hobby. Copies allowed for personal use only. Not for commercial use.
- Page 6 You can also use zip ties to fix the VTX to the mount. You can use a soldering iron to drill Hatch for FPV Antennas. fpvcam20_mount lock_body vtx_mount lock_catch 2x8mm_screw m3x8 © 2024 Craycle Hobby. Copies allowed for personal use only. Not for commercial use.
- Page 7 CA Hinges. Then you can glue the “wing3” part to its place. Avoid using excessive glue and spray on the hinges. The same process goes for the other wing. © 2024 Craycle Hobby. Copies allowed for personal use only. Not for commercial use.
- Page 8 Glue the “horn” parts and assemble your pushrods. Then you can assemble the “servohatch” to the wing. Now you can glue the “vertical” parts to the fuselage! © 2024 Craycle Hobby. Copies allowed for personal use only. Not for commercial use.
- Page 9 PetG to make the model heat resistant at summer. We recommend 6” propellers for this model but can also use a 5" propeller to fly even faster with 4S lipo. © 2024 Craycle Hobby. Copies allowed for personal use only. Not for commercial use.
- Page 10 Please avoid pirated files and be honest in paying for our efforts. Enoy the free upgrade with Orca V3! Please check the update notes on craycle.com. © 2024 Craycle Hobby. Copies allowed for personal use only. Not for commercial use.
- Page 11 This process will both verify your extruder flow and verify your printer settings correctly. If you have mechanical problems on your printer, you will also see that mesuring the model weight. © 2024 Craycle Hobby. Copies allowed for personal use only. Not for commercial use.
- Page 12 45 degrees to the bed. This way X and Y axis works coordinated and you can get maximum surface quality. You can also set the Z seams to corners. © 2024 Craycle Hobby. Copies allowed for personal use only. Not for commercial use.
- Page 13 Print Guide @craycle © 2024 Craycle Hobby. Copies allowed for personal use only. Not for commercial use.
