User Guide
Designed By: Cemal ÖZÇELİK
Version: 1.0
Date: 20.05.2022

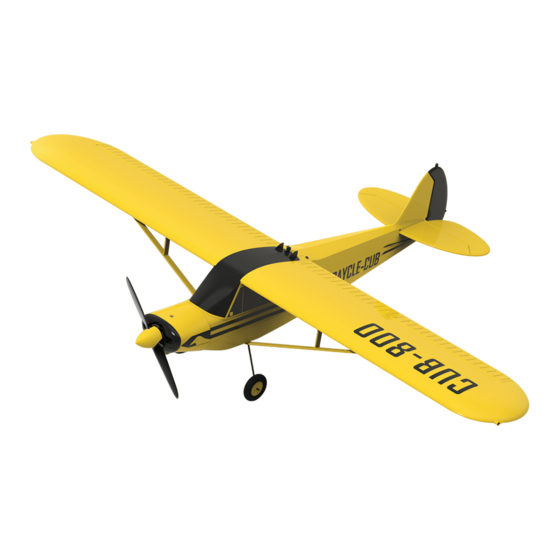

CraycleCub
General Specifications
Length
Wingspan
Print Weight
Flying Weight
Wing Area
Wing Loading
Airfoil
Maker Skill
Pilot Skill
© 2022 Craycle Hobby. Copies allowed for personal use only. Not for commercial use.
: 510
20
mm
: 800
31.5
mm
: 240
8.46
g
: 450-550
15.8-19.4 oz.
g
: 9.16
dm2
: 49,1
g/dm2
: USA 35B
www.craycle.com
Recommended Setup
Motor
inches
Propeller
inches
ESC
oz.
Servo
Battery
Analog/DJI/Vista FPV systems
: 2204/5/6 1500/2500
: 5/6/7" - 2/3/4 Blade
: 15-30A
: 4 X 9
g
: 3s 850-2500
mAh
Min. Printer Size
180*180*180 mm
Filament
Regular PLA
kv

Advertisement

loading
Need help?

Need help?

Do you have a question about the CraycleCub and is the answer not in the manual?

Questions and answers

Related Manuals for Craycle Hobby CraycleCub

Summary of Contents for Craycle Hobby CraycleCub

  • Page 1 : 3s 850-2500 Wing Loading : 49,1 Analog/DJI/Vista FPV systems g/dm2 Airfoil : USA 35B Min. Printer Size Maker Skill 180*180*180 mm Filament Pilot Skill Regular PLA © 2022 Craycle Hobby. Copies allowed for personal use only. Not for commercial use.

  • Page 2: Part List

    Part List 3 21 30 32 © 2021 Craycle Hobby. Copies allowed for personal use only. Not for commercial use.
  • Page 3 first piece and wait for 15 seconds to dry it. Then you can aply glue on the other piece and put the pieces together. Note: Avoid excessive use of glue. © 2021 Craycle Hobby. Copies allowed for personal use only. Not for commercial use.
  • Page 4 (as milimeter) as below and glue into its slot under the elevator. This wire will distribute all the force to both sides. 2 mm steel wire will also be required to make landing gear too. © 2021 Craycle Hobby. Copies allowed for personal use only. Not for commercial use.
  • Page 5 Take your time, apply the glue onto the hinges one by one and insert into the slots on the flap first. © 2021 Craycle Hobby. Copies allowed for personal use only. Not for commercial use.
  • Page 6 Take your time, apply the glue onto the hinges one by one and insert into the slots on the rudder first. © 2021 Craycle Hobby. Copies allowed for personal use only. Not for commercial use.
  • Page 7 Assemble the rear wheel to the rudder by using a 2 mm servo mounting screw or something similar. That's it! You have a rear landing gear with the steering system. © 2021 Craycle Hobby. Copies allowed for personal use only. Not for commercial use.
  • Page 8 “wing1”- “wing2” and “wing3” parts together by inserting pims into the its slots. Be careful not to apply glue to the servo and same process goes for the other side. © 2021 Craycle Hobby. Copies allowed for personal use only. Not for commercial use.
  • Page 9 Wing supports will align the wings as well. Stick the tail that you prepared to the fuselage by inserting it’s pim to facilate assembly. © 2021 Craycle Hobby. Copies allowed for personal use only. Not for commercial use.
  • Page 10 (Servo mounting screws) into the holes on the wings and fuselage. When assembly is complete, turn the model over and check the flatness of the wings. © 2021 Craycle Hobby. Copies allowed for personal use only. Not for commercial use.
  • Page 11 You can use cheap 9 gram servos for this model becouse of it's not required high sensitive on the control surfaces. © 2021 Craycle Hobby. Copies allowed for personal use only. Not for commercial use.
  • Page 12 2 mm drill bit.) Glue the “spinner_adaptor” and “spinner_base” parts together by inserting 5 mm rod to make it centered. Assemble the spinner, motor and landing gear as shown. © 2021 Craycle Hobby. Copies allowed for personal use only. Not for commercial use.
  • Page 13 Insert and stick the “cub_pim” parts corresponding to the hatches into the fuselage (Red pims in front of the wingspar.) Assemble the “hatch2” to the fuselage by using 2 mm screws. © 2021 Craycle Hobby. Copies allowed for personal use only. Not for commercial use.
  • Page 14 So you can use 7” propellers to make a park flyer. © 2021 Craycle Hobby. Copies allowed for personal use only. Not for commercial use.
  • Page 15 You will always able to reach this model’s updated versions for free! Subscribe to our newsletter on craycle.com to get update notifications. Thank you for supporting us by building our models! © 2021 Craycle Hobby. Copies allowed for personal use only. Not for commercial use.
  • Page 16 Flight Controller Mount are available on craycle.com. We are aiming to define which system are most common by separating this features! So it's never going to cost you too much. © 2021 Craycle Hobby. Copies allowed for personal use only. Not for commercial use.
  • Page 17 Custom Printer to import a curaprofile succesfully. Open the Add Printer window, select Custom FFF printer, type your printer name and click to the add button for the next step © 2021 Craycle Hobby. Copies allowed for personal use only. Not for commercial use.
  • Page 18 Nozzle size has to be 0,4 mm. If you have a different size nozzle then you have to change it with a 0,4 mm one. Click the next button, your printer settings are ready! © 2021 Craycle Hobby. Copies allowed for personal use only. Not for commercial use.
  • Page 19 first. Click to the “Import” button and go to the next step. © 2021 Craycle Hobby. Copies allowed for personal use only. Not for commercial use.
  • Page 20 Select “crayce.curaprofile” and click to the open button. Now you have the Craycle Profile! If you have an error in this step, you need to create Custom Printer or update your Cura Slicer. © 2021 Craycle Hobby. Copies allowed for personal use only. Not for commercial use.
  • Page 21 Note: 0,2 mm layer height is the best setting for the Print Quality/Printing Time. © 2021 Craycle Hobby. Copies allowed for personal use only. Not for commercial use.
  • Page 22 45 degrees to the bed. This way X and Y axis works coordinated and you can get maximum surface quality. Default Z Seam is Front-Left. © 2021 Craycle Hobby. Copies allowed for personal use only. Not for commercial use.
  • Page 23 flowrate as well. If you have any question, you can contact us at info@craycle.com. Check out to the other models on www.craycle.com. Enjoy your build! @craycle © 2021 Craycle Hobby. Copies allowed for personal use only. Not for commercial use.
