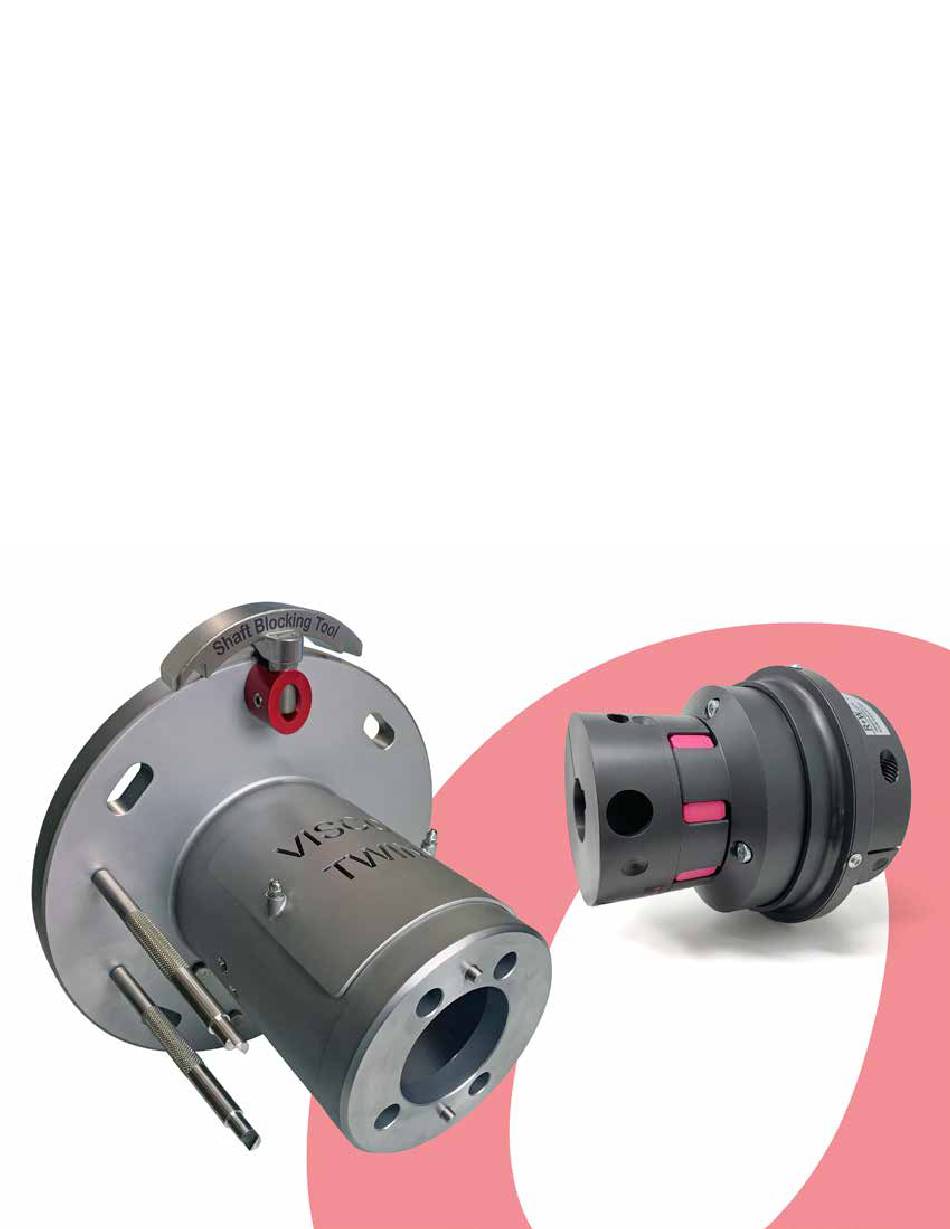

- Page 1 PROCESSTEC GET TOMORROW´S TECHNOLOGY TODAY ViscoTwin R+W Disengaging Coupler 9-24...
- Page 2 Address: 9938 West Legacy Ave | Visalia, CA 93291 | Phone: +1 (559) 429-4227 Fax: +1 (559) 429-4228 | Email: info@processtec.com | http://processtec.com...
-
Page 3: Table Of Contents
3.3 Frame #4 Explosion Drawing ..........13 PROCESSTEC INC. 2024... - Page 4 PROCESSTEC TABLE OF CONTENTS GET TOMORROW´S TECHNOLOGY TODAY Page iv PROCESSTEC INC. 2024...
-
Page 5: Introduction
Running the disengaged coupler for excessive time (more than 1 minute) will overheat the internal bearing and destroy it. We could install a proximity switch to detect the coupler being dis-engaged in case the amperage monitoring would not be practical. PROCESSTEC INC. 2024 Page 1... - Page 6 PROCESSTEC 1. INTRODUCTION GET TOMORROW´S TECHNOLOGY TODAY Page 2 PROCESSTEC INC. 2024...
-
Page 7: R+W Disengaging Coupler
(Pos. 1016) from the Pump Housing (Pos. 2530). Using the Frame #4 Gear Console underneath the Lantern (Pos. 3000), slide the Pump/Lantern/Motor all the way back until the Bearing Housing Sliders reach the Stop Brackets on Frame PROCESSTEC INC. 2024 Page 3... - Page 8 2201) and check for full 360 degree rotation, in both directions. Ensure that there is no touching or rubbing beteween the Spindles. If rubbing exists, you will need to either remove the high points with light sanding, or re-gap the Spindles. Page 4 PROCESSTEC INC. 2024...
- Page 9 Coupler (Pos. 2247) and the Motor Coupler (Pos. 2248) by rotating the Motor Coupler until all THREE (3) yellow dots are perfectly aligned. The Coupler cannot be re-engaged if these dots are not first aligned. PROCESSTEC INC. 2024 Page 5...
- Page 10 Lantern (Pos. 3000). These tools will be used to Re-engage the R+W Coupler. Arrange the flat surfaces of the tips so that they will be able to rest against the backside of the Motor Hub Outer Ring. Page 6 PROCESSTEC INC. 2024...
- Page 11 Lantern Flange, prying the Motor Hub Outer Ring (Pos. 2248) towards the Pump. A "click" sound should be heard as you see the movement of the outer ring when the coupler has been properly re- engaged. PROCESSTEC INC. 2024 Page 7...
- Page 12 2248) and Pump Hub (Pos. 2247) move together. STEP 10) Replace the Re-engagement Tools (Pos. 3030) onto the Lantern (Pos. 3000), reattach the Lantern Safety Shield (Pos. 3001) and then fix the Cap Nuts (Pos. 3002) in place. Page 8 PROCESSTEC INC. 2024...
- Page 13 O-ring Seal (Pos. 1088) when closing the Pump. When the Pump Housing (Pos. 2530) and Bearing Housing (Pos. 1001) are completely closed, you can reinstall the Pump Housing Bolts (Pos. 1016). PROCESSTEC INC. 2024 Page 9...
-
Page 14: Re-Engaging The Coupler Movie
GET TOMORROW´S TECHNOLOGY TODAY 2.1 Re-engaging the Coupler Movie A short movie has been created showing the process of Re-engaging the Motor Hub after it has become disengaged. You can access this movie via the QR Code. Page 10 PROCESSTEC INC. 2024... -
Page 15: Technical Specs
PROCESSTEC 3. TECHNICAL SPECS GET TOMORROW´S TECHNOLOGY TODAY 3. TECHNICAL SPECS 3.1 VT130 Explosion Drawing Tabloid Size (11" x 17") PROCESSTEC INC. 2024 Page 11... -
Page 16: Vt130 Torque Chart
PROCESSTEC 3. TECHNICAL SPECS GET TOMORROW´S TECHNOLOGY TODAY 3.2 VT130 Torque Chart Tabloid Size (11" x 17") Page 12 PROCESSTEC INC. 2024... -
Page 17: Frame #4 Explosion Drawing
PROCESSTEC 3. TECHNICAL SPECS GET TOMORROW´S TECHNOLOGY TODAY 3.3 Frame #4 Explosion Drawing Tabloid Size (11" x 17") PROCESSTEC INC. 2024 Page 13...
