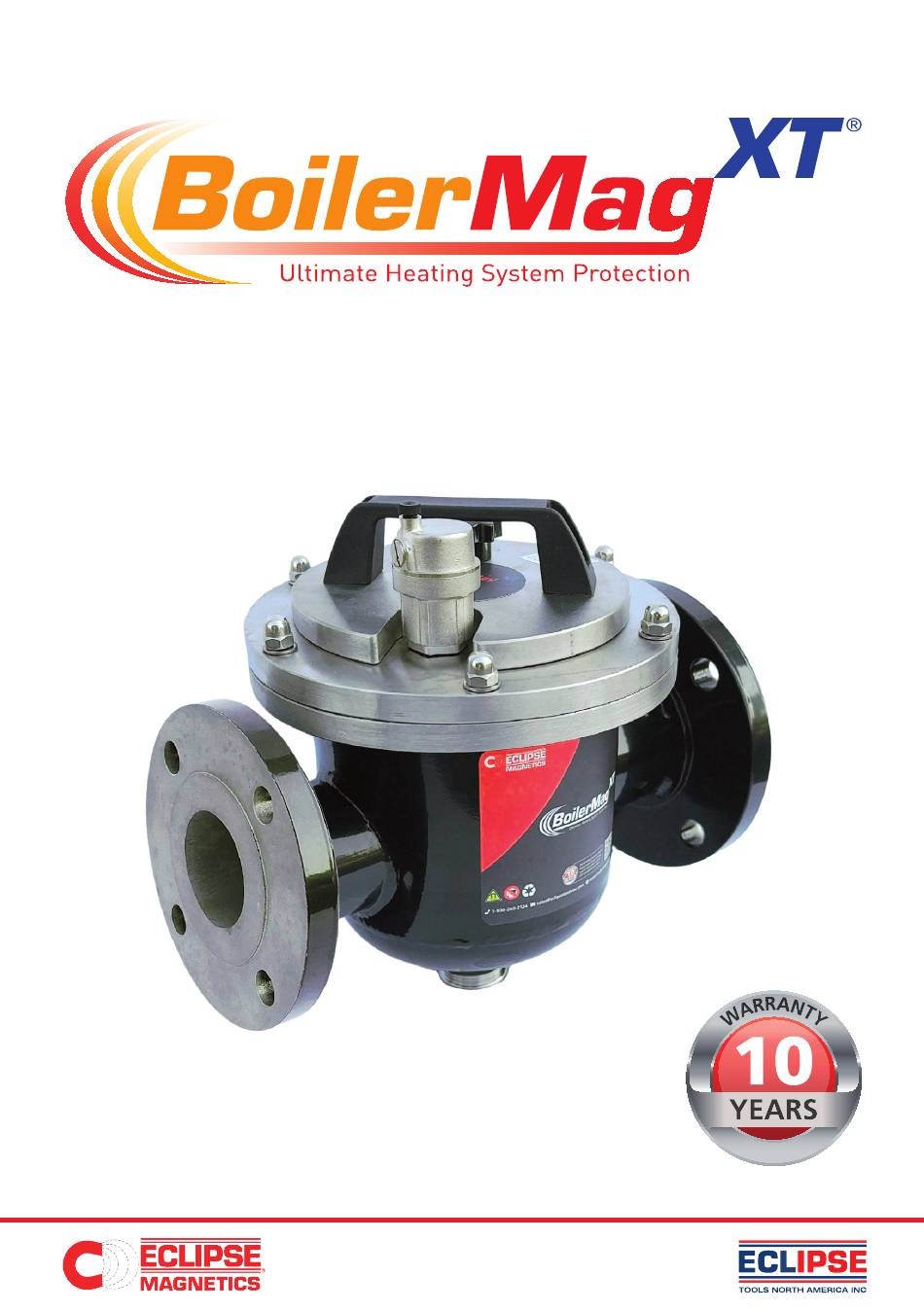

- Page 1 Installation and Servicing Instructions Innovative Magnetic Solutions...
- Page 2 BoilerMagXT Heating & Cooling System Filter Thank you for choosing BoilerMagXT, please follow the instructions carefully to ensure that this BoilerMagXT magnetic filtration system is fitted and maintained correctly. By completing and returning the guarantee card in the pack you qualify for a 10 year warranty against manufacturing defects.
-
Page 3: Guide To Installation
Guide to Installation Ensure the heating system is isolated prior to carrying out installation or maintenance work. Where to Install BOILER HEADER TANK Larger unit Smaller unit BoilerMagXT is typically installed on the return circuit as close to the boiler as possible. On larger systems, such as the one shown, smaller BoilerMagXT units may be installed elsewhere to give extra protection for radiators and pipework. - Page 4 Installing BoilerMagXT Identify a suitable location (see ‘Where to Install’ p3). The best practice would be to install the unit with a minimum of five pipe diameters of straight run. Less than this could potentially cause the water to be turbulent as it enters the vessel, reducing its ability to remove sludge. Ensure enough clearance to carry out cleaning as the rods must be lifted out of the unit to clean.
- Page 5 Servicing & Maintenance Instructions Cleaning and servicing must only be carried out by a qualified person in accordance with all relevant current regulations. To maintain optimum efficiency we recommend cleaning annually. However when a BoilerMagXT is fitted to an existing heating system we recommend more regular checks as it is likely there will be a large build-up of ferrous oxide (black sludge) to clear out.
- Page 6 Servicing & Maintenance Instructions When the draining water runs clear turn Replace the magnetic core and hand tighten off the inlet isolation valve and allow the the black tricone to retain. Re-open both remaining contents to drain. Close the drain isolation valves.
-
Page 7: Product Data
Product data Flow rate Flow rate Flow rate Weight Item Code Part No. Inlet / Outlet Filter Dia. Dimension Height magnetic at 3ft/sec at 5ft/sec at 8ft/sec lbs/ rods gallons/min. gallons/min. gallons/min. /hour) /hour) /hour) BMXT/1.5 BMXT100/ANSI 11/2” / 38mm 4”... - Page 8 See our full range of products Ultimate Heating System Protection Ultimate Heating System Protection (1” & 11/4” connections) ” connections) System Treatment Chemicals BM1 Inhibitor & BM3 Cleaner www.boilermag.com/na Eclipse Tools North America Inc. 442 Millen Rd, Unit #9, Stoney Creek, ON L8E 6H2 T 1800-260-2124 sales@eclipsetoolsinc.com www.eclipsetoolsinc.com While every effort has been made to ensure the accuracy of the information in this publication please note that specifications may change...
