INSTALLATION AND MAINTENANCE INSTRUCTIONS
MIX-4003-S SOUNDER BASE
CAUTION / ATTENTION
DO NOT PAINT OR ALTER FACTORY APPLIED FINISH IN ANY WAY
NE PAS PEINDRE OU MODIFIER LA FINITION ORIGINALE
ABOUT THIS MANUAL
This manual is included as a quick reference for installation. For further
information on the use of this device with a FACP, please refer to the
panel's manual.
Note: This manual should be left with the owner/operator of this
equipment.
SOUNDER BASE DESCRIPTION
The MIX-4003-S sounder base horn is designed to meet UL268/ULC
S529 requirements for smoke detector, UL521/ULC S530 requirements
for heat detector, and UL464/ULC S525 requirements for audible
notification appliances.
The MIX-4003-S provides localized alarm sounding capability for the MIX-
4000 family of fire detection devices. It can be used in place of external
sounders to minimize installation cost and footprint while allowing
individual control of signal rate and on-off state for each device. The MIX-
4003-S is used with a compatible listed UL or ULC fire alarm control panel.
Operational mode and levels are selected at the Fire alarm panel through
the panel configuration tool.
The MIX-4003-S produces an alarm signal at sound pressure levels
shown in Table 1.
1
25 Interchange way, Vaughan Ontario. L4K 5W3

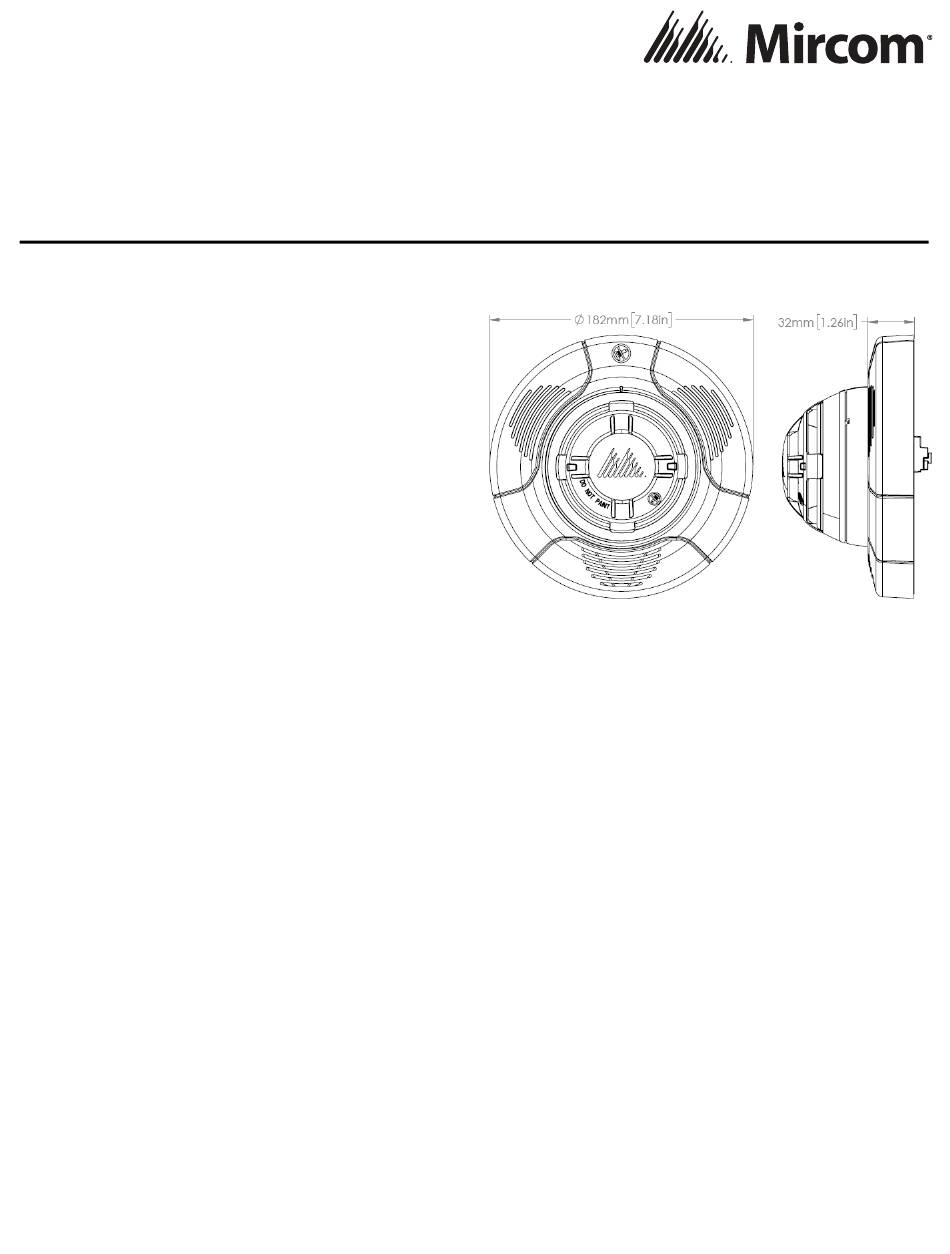

FIGURE 1:
MODEL FRONT AND SIDE VIEW WITH MIX-4000
SERIES DETECTOR
SPECIFICATIONS
Operating Temperature:
Humidity Range:
Nominal Voltage:
SLC Standby Current:
SLC Alarm Current:
Base Diameter
Base Height
Terminal wire gauge
Phone: 905.660.4655; Fax: 905.660.4113
Web: www.mircomgroup.com
0°C to 49°C (32°F to 120°F)
0% to 93%
Regulated 24VDC/VFWR
1.56mA
2.34 mA
182mm (7-3/16 in)
32mm (1-1/4 in)
12-22 AWG
LT-6696 rev 2 2/18/25
