INSTALLATION AND MAINTENANCE INSTRUCTIONS
MIX-4003-R RELAY BASE
CAUTION / ATTENTION
DO NOT PAINT OR ALTER FACTORY APPLIED FINISH IN ANY WAY
NE PAS PEINDRE OU MODIFIER LA FINITION ORIGINALE
ABOUT THIS MANUAL
This manual is included as a quick reference for installation. For further
information on the use of this device with a FACP, please refer to the
panel's manual.
Note: This manual should be left with the owner/operator of this
equipment.
RELAY BASE DESCRIPTION
The MIX-4003-R relay base is designed to meet UL268/ULC S529
requirements for smoke detector, and UL521/ULC S530 requirements for
heat detector.
The MIX-4003-R is used with a compatible listed UL or ULC fire alarm
control panel. The device can control one independent circuit while using
one address.
The MIX-4003-R provides one form C (SPDT) contact rated at 2A at
30Vdc, or 0.5A at 125Vac and a compatible panel can switch discrete
contacts by code command. Circuit connections to the relay contacts are
not supervised by the base. MIX-4003-R supports group activation
capability for fast reaction time.
1
25 Interchange way, Vaughan Ontario. L4K 5W3

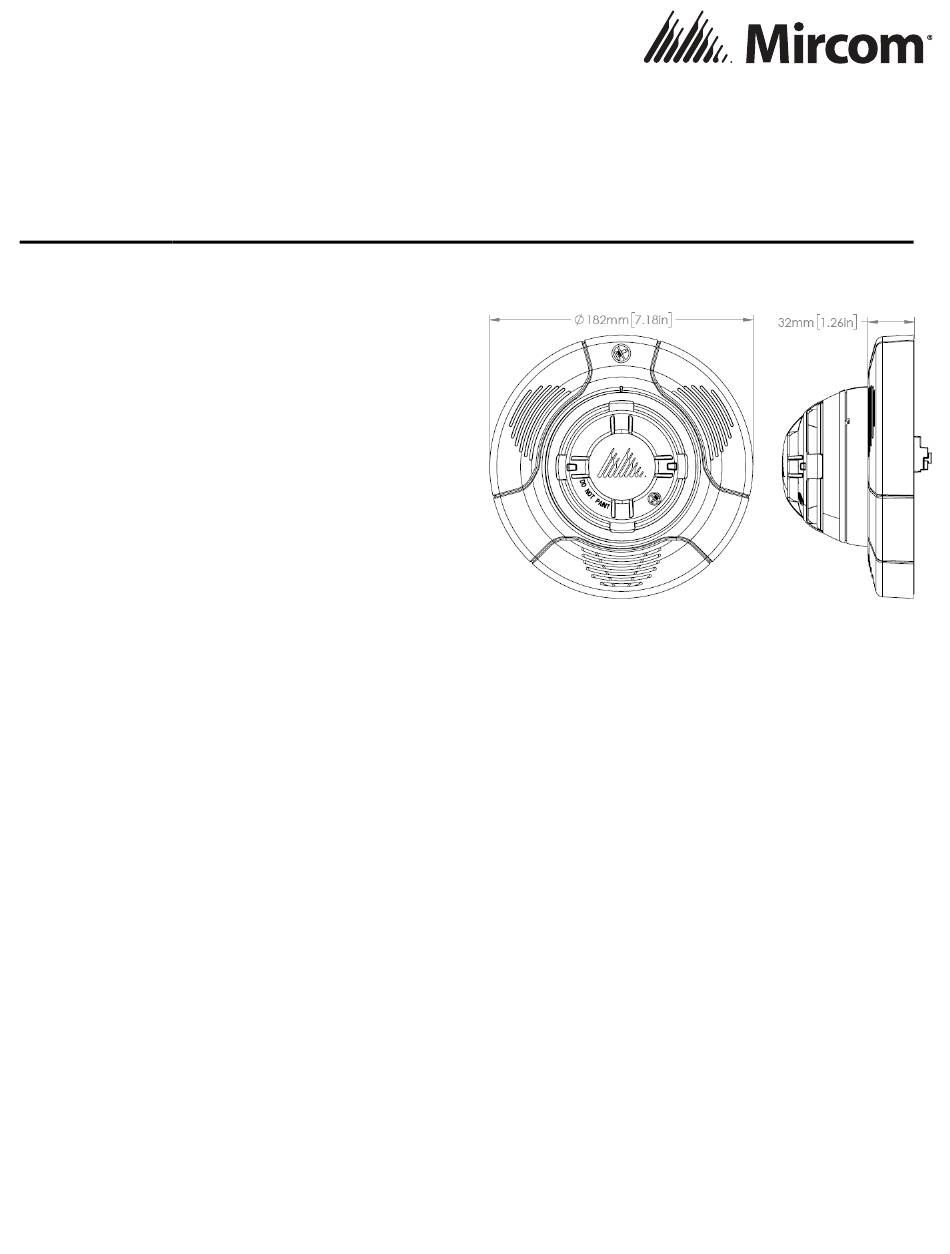

FIGURE 1:
MODEL FRONT AND SIDE VIEW WITH MIX-4000
SERIES DETECTOR
SPECIFICATIONS
Operating Temperature:
Humidity Range:
Nominal Voltage:
SLC Standby Current:
SLC Alarm Current:
Base Diameter
Base Height
Terminal wire gauge
Phone: 905.660.4655; Fax: 905.660.4113
Web: www.mircomgroup.com
0°C to 49°C (32°F to 120°F)
0% to 93%
Regulated 24VDC/VFWR
1.16 mA
1.18 mA
182mm (7-3/16 in)
32mm (1-1/4 in)
12-22 AWG
LT-6697 rev 2 2/18/25
