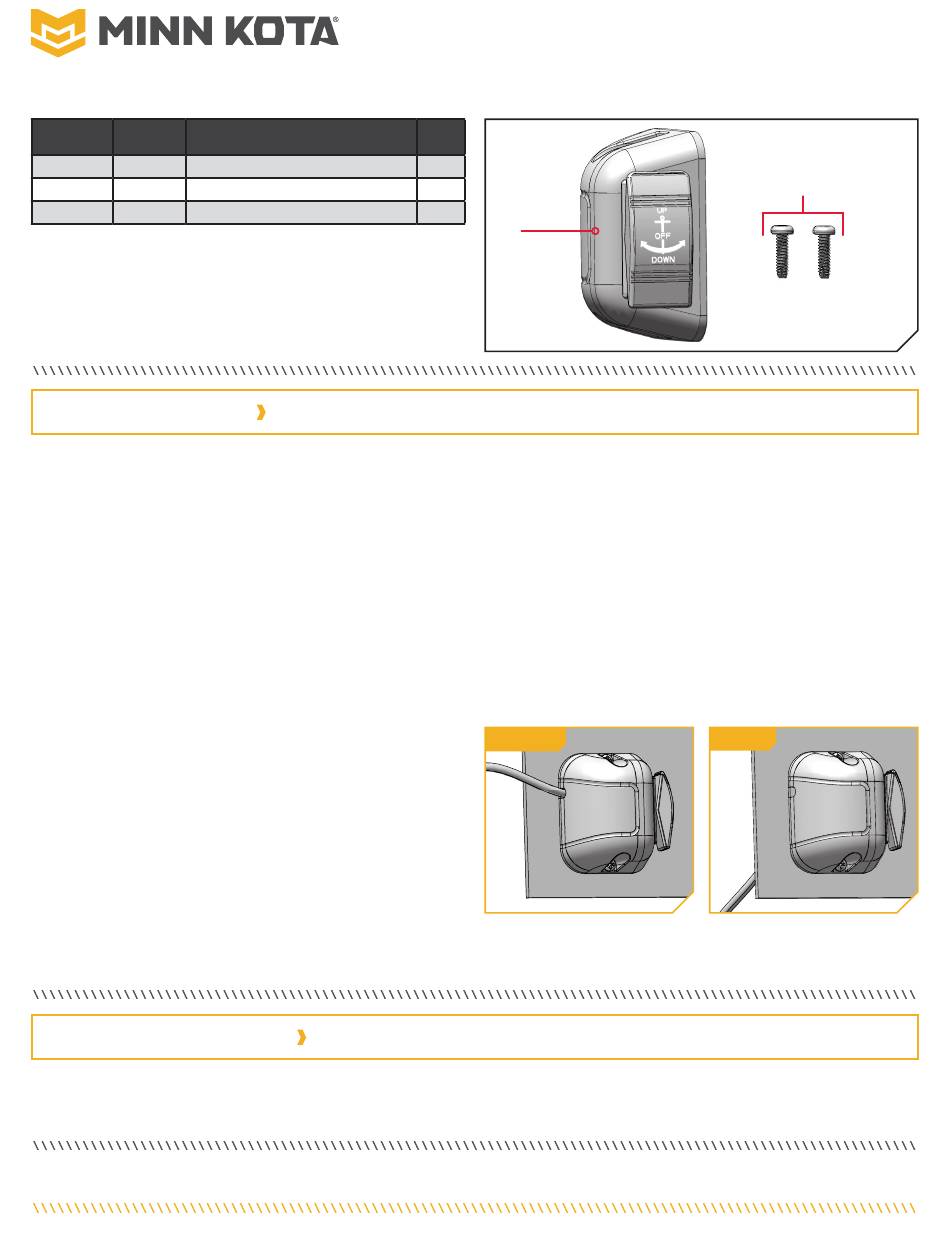

The DH-40 Remote Switch features a 25-ft cord, allowing the DeckHand 40 Electric Anchor Winch to operate from anywhere on the
boat. It can be operated as a handheld remote or mounted to a surface. The Remote Switch is only compatible with the DeckHand 40.
Item /
Part #
Description
Assembly
✖
2
DECKHAND REMOTE
4
2372100
SCREW-#8-18 X 5/8 THD* (SS
▲
2384956
INSTR/INSTLL SHEET DH40 RMT
p Not shown on Parts Diagram.
✖ This part is included in an assembly and cannot be ordered individually.
MOUNTING CONSIDERATIONS
The DH-40 Remote Switch can be used as a handheld remote or mounted to a surface. Before mounting the DH-40 Remote Switch,
consider the following:
• Test that the Remote Switch Control Cord is long enough to reach the Accessory Plug on the DeckHand 40 from the desired operating or
mounting location. If the Control Cord does not reach, select a closer mounting location.
• When surface-mounting, ensure the area under the mounting location is level and clear to drill holes. The installation hardware must not
damage existing components below the mounting surface.
MOUNTING OPTIONS
There are two options for mounting the Remote Switch. The option used depends on whether there is access under the mounting location.
Determine if the Control Cord from the Remote Switch will pass below the mounting surface. The method will determine how the Control
Cord routes from the Remote Switch. If the Remote Switch is not mounted or is handheld, skip to the "Completing the Installation" section
of these instructions.
1.
No Access under the Mounting Location - The Control Cord
routes to the side of the Remote Switch because there is no
room under the mounting location for it to pass, or the area
below the mounting location is inaccessible.
2.
Access under the Mounting Location - The Control Cord
will pass through the mounting surface. Only select this
option when the Control Cord can still be accessed after it
has passed through the mounting surface. Minn Kota
recommends this installation for in-dash mounting. Adjust
the default position of the Control Cord to accommodate
mounting with access under the mounting location. Adjusting the Control Cord to exit the bottom of the Base Plate requires additional
holes in the mounting surface to allow the Control Cord to pass through the mounting surface.
TOOLS AND RESOURCES REQUIRED
• Drill
• 5/64" Drill bit
• #2 Phillips Screwdriver
1 | minnkota.johnsonoutdoors.com
Qty.
1
2
1
2
2
No Access
• Awl, pen or similar marking tool
• Hole Punch
• Marine-grade Sealant
DH-40 REMOTE SWITCH
Access
• 1" Drill Bit
©2025 Johnson Outdoors Marine Electronics, Inc.
1810150
4 4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MINN KOTA DH-40
Summary of Contents for MINN KOTA DH-40
- Page 1 ✖ This part is included in an assembly and cannot be ordered individually. MOUNTING CONSIDERATIONS The DH-40 Remote Switch can be used as a handheld remote or mounted to a surface. Before mounting the DH-40 Remote Switch, consider the following: •...
-
Page 2: Installation
WARNING Default Control Cord Position Default Control Cord Position This installation will expose internal wires. Before adjusting the Control Cord, ensure the DH-40 Remote Switch is not connected to a power source. Base Plate Base Plate By default, the Control Cord exits from the side of the Remote Switch (Item #2). - Page 3 Installation for No Access Under the Mounting Location ITEM(S) NEEDED #4 x 2 #2 x 1 Review the mounting considerations at the Mounting Surface Mounting Surface beginning of these instructions. Set the flat side of the Remote Switch (Item #2) on the selected mounting location.
- Page 4 Route the Control Cord so it exits the Remote Bottom View Bottom View Switch from the bottom of the Base Plate. Before continuing, complete the instructions in the Base Base Base Base Plate Plate Plate Plate “Adjusting the Control Cord” section. Control Control With the Control Cord routed out the bottom of the...
-
Page 5: Completing The Installation
DeckHand 40 CONTROL SWITCH OPERATION The three positions of the DH-40 Remote Switch are UP, DOWN, and OFF. Down UP - hoists the anchor and retracts it into the Davit. Releasing the Control Switch turns it OFF automatically and secures the anchor and rope. -
Page 6: Options De Montage
1810150 L’interrupteur à distance DH-40 est doté d’un cordon de 25 pi, permettant au treuil d’ancre électrique DeckHand 40 de fonctionner de n’importe où sur le bateau. Il peut être utilisé comme télécommande portative ou monté sur une surface. L’interrupteur à distance est compatible avec le DeckHand 40 seulement. - Page 7 Cette installation exposera les fils internes. Avant de régler la corde de commande, assurez-vous que l’interrupteur à distance DH-40 n’est pas connecté à une Plaque de base Plaque de base source d’alimentation. Par défaut, la corde de commande sort du côté...
- Page 8 Installation sans accès sous l’emplacement de montage ARTICLE(S) REQUIS #4 x 2 #2 x 1 Relisez les points à prendre en compte pour le montage Surface de montage Surface de montage au début de ces instructions. Placez le côté plat de l’interrupteur à...
- Page 9 Acheminez la corde de commande de manière à ce Vue du bas Vue du bas qu’elle sorte de l’interrupteur à distance par le bas de la plaque de base. Avant de continuer, suivez les Plaque Plaque Plaque Plaque instructions de la section « Réglage de la corde de de base de base de base...
-
Page 10: Terminer L'installation
Fiche accessoire de DeckHand 40 de DeckHand 40 FONCTIONNEMENT DE L’INTERRUPTEUR DE COMMANDE Les trois positions du commutateur à distance DH-40 sont UP, DOWN et Arrêt. HAUT (UP) BAS (DOWN) Arrêt (Off) HAUT - pour soulever l’ancrage et le rétracter dans le bossoir. Relâchez l’interrupteur de commande le met hors tension automatiquement et fixe l’ancrage et la corde.
