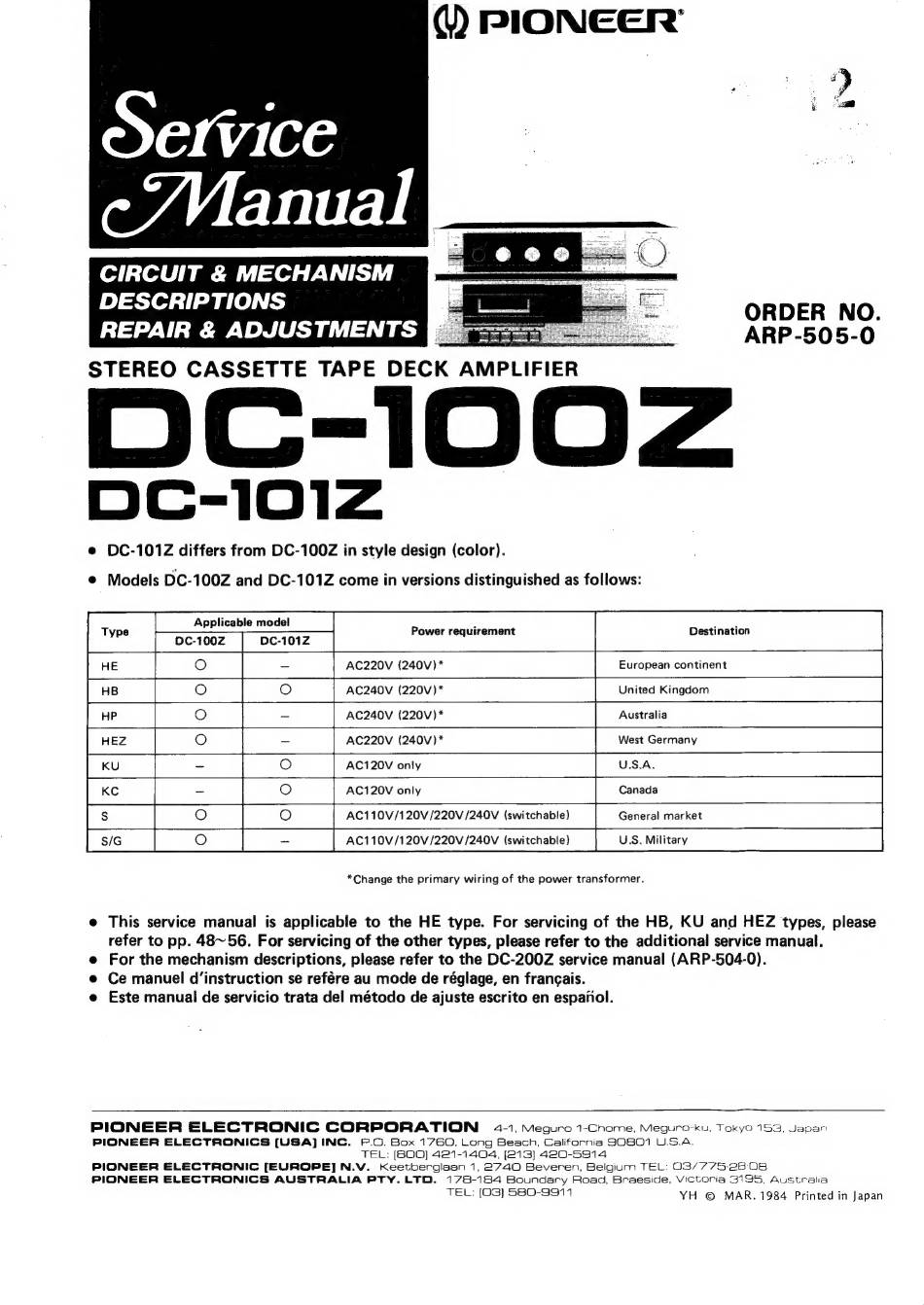

Pioneer DC-100Z Service Manual

dW) PIONEER'
Seivice
CIRCUIT & MECHANISM
DESCRIPTIONS |
= ORDER NO.
REPAIR & ADJUSTMENTS FF = Sia ARP-505-0
STEREO CASSETTE TAPE DECK AMPLIFIER
DC-1i002Z
DC-101Z
e DC-101Z differs from DC-100Z in style design (color).
© Models DC-100Z and DC-101Z come in versions distinguished as follows:
Applicable model
Power requirement Destination
AC220V (240V)* | European continent =| continent
AC240V (220V)* United Kingdom
AC240V (220V)* Australia
AC220V (240V)* West Germany
AC120V only U.S.A.
AC120V only Canada
AC110V/120V/220V /240V (switchable) General market
| = — —__[_act10v/120v/220v/240v (switchable) U.S. Military
*Change the primary wiring of the power transformer.
e This service manual is applicable to the HE type. For servicing of the HB, KU and HEZ types, please
refer to pp. 48~56. For servicing of the other types, please refer to the additional service manual.
e For the mechanism descriptions, please refer to the DC-200Z service manual (ARP-504-0).
Ce manuel d'instruction se refére au mode de réglage, en francais.
e@ Este manual de servicio trata del método de ajuste escrito en espaiiol.
PIONEER ELECTRONIC CORPORATION 4-1. Meguro 1-Chome, Meguro-ku, Toky® 153, Japan
PIONEER ELECTRONICS (USA]} INC. P.O. Box 1760, Long Beach, California 30801 USA.
TEL: (B00) 421-1404, (213) 420-5914
PIONEER ELECTRONIC [EUROPE] N.V. Keetbergliaan 1, 2740 Beveren, Belgium TEL: 039/775-2808
PIONEER ELECTRONICS AUSTRALIA PTY.LTD. 178-184 Boundary Road, Braeside, Victoria 3195, Australa
TEL: [OS] 580-9911 YH © MAR. 1984 Printed in Japan
