Summary of Contents for Canadian Spa CRYO CE TUB

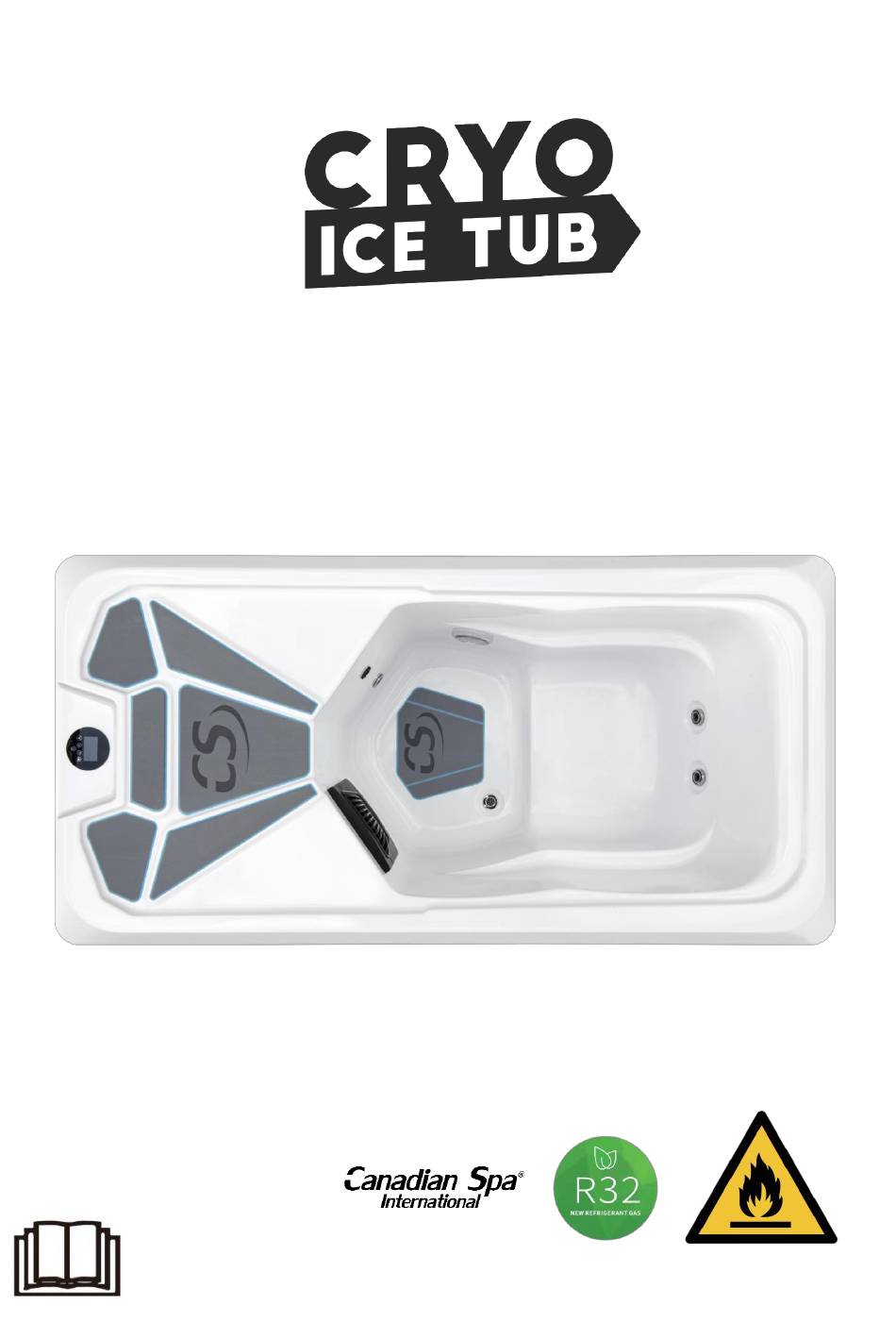

- Page 1 Simplified operation instruction Please read carefully ! Please read this instruction carefully before using the appliance and retain it for future reference.
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1.Foreword ................................. 2 1.1 Important information ........................... 2 1.2 Safety instructions ..........................3 2. Pre-use operations ............................4 2.1 Product placement location and space ....................4 2.2 Electrical Installation ..........................4 2.3 Electric circuit drawing ......................... 5 3.Trial After Installation ............................. -
Page 3: Foreword
1. Foreword 1.1 Important information Please read carefully! Please read this instruction carefully before using the appliance and retain it for future reference. Attention! 。 During transporting the water chiller, please ensure that it is not tilted more than 45 (in any direction). -
Page 4: Safety Instructions
1.2 Safety instructions Observe the following informations and instructions: ① The electrical installation and the installation of the heating circuit can be only carried out by qualified installers or technicians; ② Observe all local regulations and standards for water supply and electrical installations; ③... -
Page 5: Pre-Use Operations
2. Pre-use operations 2.1 Product placement location and space Please comply with the following rules concerning the choice of product location ： ①The unit’s future location must be easily accessible for convenient operation maintenance. It must be installed on the ground, fixed ideally on a level concrete floor. Ensure that the floor is sufficiently stable and can support the weight of the unit. -
Page 6: Electric Circuit Drawing
2.3 Electric circuit drawing Please connect power strictly according to the power data plate. LS- 4 0 H / N 8 - BP1... -
Page 7: Trial After Installation
3.Trial After Installation WARNING:Please check all the wiring carefully before turning on the bath chiller. 3.1 Inspection Before Trial Running Before running test, confirm below items and write √ in block; Correct unit installation Power supply voltage is the same as unit rated voltage ... -
Page 8: Control Panel
4. Control panel Item Icon Item Icon " -"key and check Defrosting parameters Light key Light Timing key " + " key and turn on/off Water pump pump ON/OFF key Wi-Fi Auto mode Children lock Silent auto Blinking mode Smart auto mode Powerful auto Compressor... -
Page 9: Key Operation Instruction
5. Key Operation Instruction 5.1 Temperature unit When the system is turn off, long press “ ”and “ ”on the main interface for 3 seconds to switch the temperature unit (℃ or ℉), The system will automatically stre the value after changing. Fahrenheit degree Celsius degree and “... -
Page 10: Temperature Setting
smart mode：Medium power (medium frequency), equipment operating noise, moderate cooling/heating speed, more energy-efficient； Powerful mode：Full power (high frequency) operation, high equipment operating noise, fast cooling/heating speed； 5.3 Temperature setting In the main interface, press" "or " "to adjust the set temperature. Flash 1.Long press 3s to turn on. -
Page 11: Light
5.4 Light At the startup interface, short press" " to turn on the light, then press again to turn off the light. 5.5 Cycle Pump Press and hold " " for 3 seconds to manually turn on/off the water pump when shutting down, reaching the temperature set, or shutting down due to malfunction. -
Page 12: Clock Setting
5.6 Clock setting In the startup state, press the " " composite key for 3 seconds on the main interface to enter the time setting. Press " " or " " to adjust the hour, press " " to switch to minute adjustment, press " "... -
Page 13: Wi-Fi Settings
6. Wi-Fi settings 6.1 Software Installation Method 1:Search “Smart Life” in Apple App Store or Google App Store. Method 2:Scan the QR code below. 6.2 Software Startup After installation,click “ ” on your desktop to start up Smart Life. -
Page 14: Software Registration And Configuration
6.3 Software Registration and Configuration 1. Registration ① Users don’t have account can click “Register” to create an account: Register Enter your phone number Get Verification Code Enter Verification Code Set Code. - Page 15 2. Account ID + Password Login ① Existing accounts can be logged in directly, in the following order. ② If you forget your password you can choose to login with your verification code and select "Forget Password": Enter your phone number Get verification code.
- Page 16 ③ After logged in,enter the main interface of APP. Note: Click the device to check the status, and you can set the operating mode, ON/OFF, timer. Click “＋” to add devices. 3. Wi-Fi Module configuration steps: Step 1: SMART Mode: When power is on, press and hold the " "...
- Page 17 Step 3: Open the "smart life" APP, log in into the main interface, click on the top right corner "+" or "add equipment" of the interface, add equipment into the interface. Step 4: Enter the Wi-Fi connection interface, enter the Wi-Fi password of the mobile phone (it must be the same as the Wi-Fi of the mobile phone), click "Next", and then directly enter the connected status of the device.
-
Page 18: Software Function Operation
Step 5: Connect succeeds. 6.4 Software Function Operation ⚫ After the device is bound successfully, enter the operation interface of “Pool heat pump” (Device name, modifiable). ⚫ In the main interface of “Smart Life”, click “Pool” to enter the operation interface. ①... - Page 19 ⚫ Modify device name Click in the following order to enter device details, and click "Device Name" to rename the device. ⚫ Device sharing To share a bound device, the user should do so in the following order. After successful sharing, the list will be added to show the person shared. If you want to delete the account you shared to, cross the selected account to the left,and delete it.
- Page 20 ⚫ Mode settings Click “ ” on the main interface to switch modes,select what you need. ⚫ Timer setting 1. Click “ ” on the main interface to enter timer setting interface, as shown below, click to add timer. ① After entering timer setting, swipe up/down to set timer,set up repeat weeks and on/off,then...
-
Page 21: System Antifreeze
click “save” to Hours. ② Minutes. ③ Set the repeat. ④ Set power ON/OFF. ⑤ Save your modification. save your settings as follows. 7. System antifreeze During standby or shutdown protection: When the ambient temperature is ≤ 5 ℃(41℉) it enters the first level of antifreeze protection, and the water pump starts for 30 seconds every 10 minutes and runs in a cycle;... -
Page 22: Malfunction Table
8. Malfunction table Code Error Er 03 Water flow failure Er 04 Winter antifreeze Er 05 High pressure failure Er 06 Low pressure failure Er 09 Main board-wire control communication failure Er 10 Communication failure of frequency conversion module Er 12 High exhaust protection Er 15 Inlet water temperature fault... -
Page 23: Trouble Shooting
9. Trouble Shooting Fault Analysis Solution 1. Reconnect the water flow switch 1. The connection between water flow switch and cable. main board is poor. 2. Install the water flow switch in the 2. The water flow switch is installed wrong. correct way. - Page 24 1.Loose wiring or poor connection of low 1. Reconnect the wire. pressure switch. 2. Replace the high pressure 2.There is something wrong with low pressure switch. switch. 3. Replace the main board. pressure 3.Main board is broken. 4.Vacuumize and refill the protection 4.Refrigerant leak.
- Page 25 1. The connection between the temp. sensor and 1.Reconnect the temp.sensor External coil the main board is poor. cable. temp. 2. Temp. sensor fault. 2.Replace the temp.sensor. sensor fault 3.The sensor resistance on the main board fault. 3.Replace the main board. Exhaust 1.
- Page 26 1. The connection between the temp. sensor and 1.Reconnect the temp.sensor Suction the main board is poor. cable. sensor fault 2. Temp. sensor fault. 2.Replace the temp.sensor. 3.The sensor resistance on the main board fault. 3.Replace the main board. 1. The connection between the temp. sensor and 1.Reconnect the temp.sensor Innerl coil the main board is poor.
