Canadian Spa CRS 1 Manual

Bottom mount cover lifter

BEFORE BEGINNING ASSEMBLY,

CAREFULLY READ THE INSTRUCTIONS:

Place all parts in a cleared area and remove the

packing materials. Assembly requires two people.

For help identifying the small parts used in

assembly, use the Parts List.

Note: During assembly, make sure that all parts are

oriented as shown in the drawings. Tighten all parts

as you assemble them, unless instructed to do

otherwise.

ASSEMBLY REQUIRES THE FOLLOWING TOOLS

(not included): two (2) adjustable wrenches, one (1)

phillips screwdriver, one (1) hammer, one (1)

power drill with a 1/16 drill bit and a 1/4 drill bit.

Soapy water.

You will also need some silicone to apply to the screw

heads before installing the end caps. (optional)

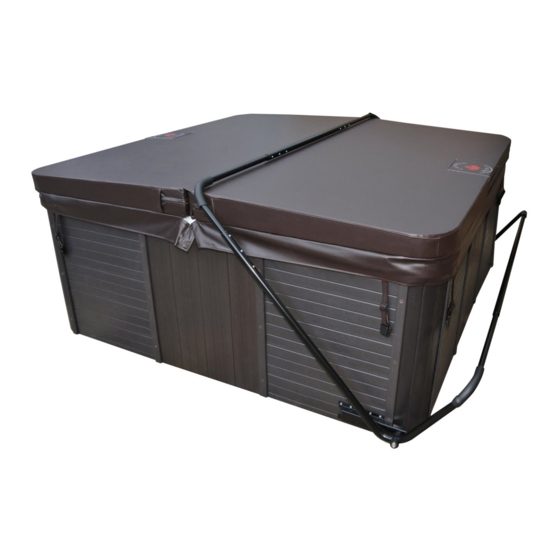

Bottom mount cover lifter (CRS 1)

To remove the cover from the spa, fold the spa

cover (at the hinge) back over the upper cover

support arm.

Then, using your foot, step down upon the lower

cover support arm while holding onto the foam

padded upper support arm and the cover will lift up

and be placed behind the spa.

Table of Contents

Do you have a question about the CRS 1 and is the answer not in the manual?

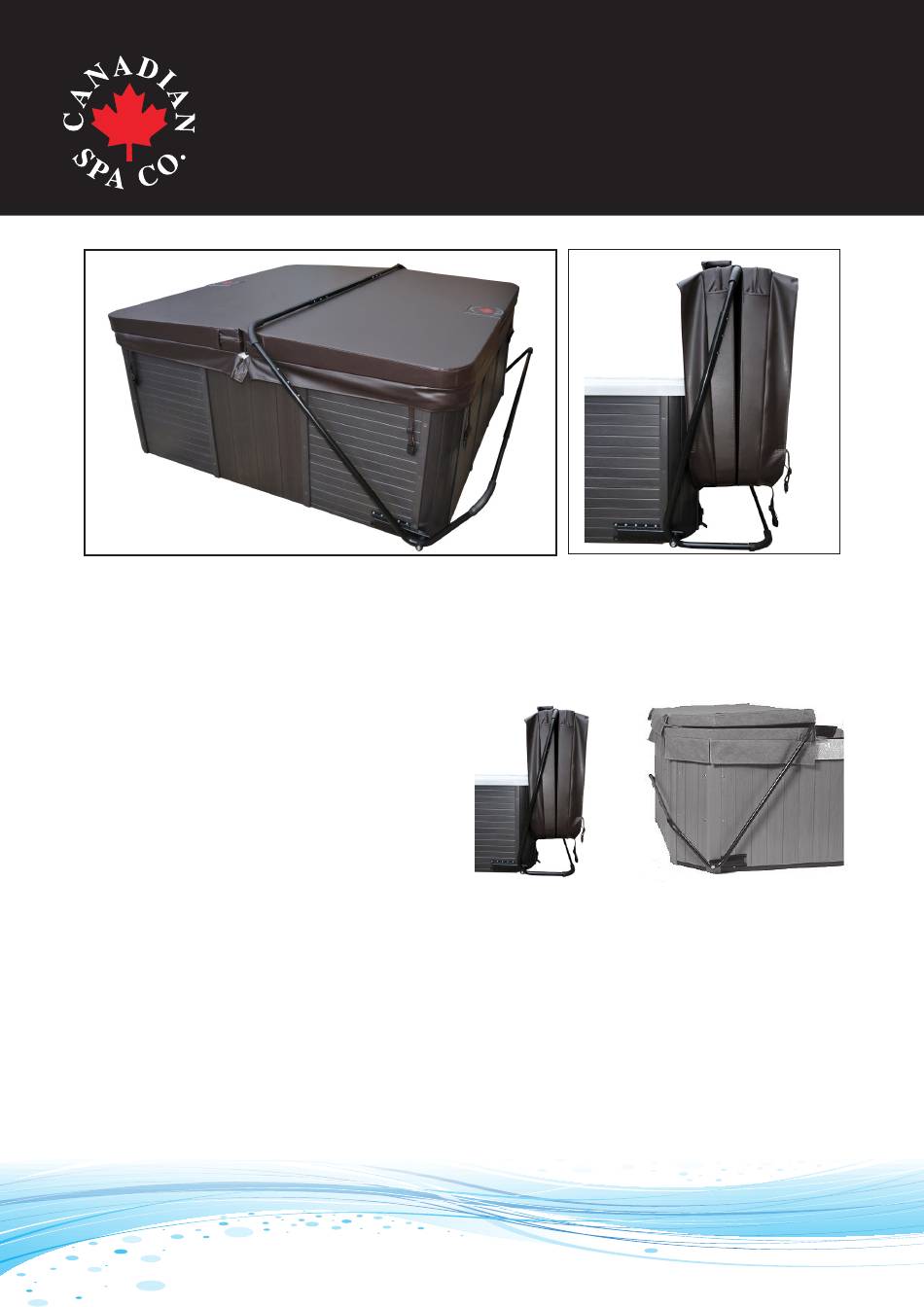

Page 1 Bottom mount cover lifter (CRS 1) BEFORE BEGINNING ASSEMBLY, Bottom Mount Cover Lifter - Operation CAREFULLY READ THE INSTRUCTIONS: To remove the cover from the spa, fold the spa cover (at the hinge) back over the upper cover Place all parts in a cleared area and remove the support arm.
Page 2 Bottom mount cover lifter - Parts list (CRS 1) Parts List Description Description 1. #2 Screw 8. Upper cover support arm 1/2” x 41” (13 x 1041mm.) 2. Mounting bracket 9. Lower cover support arm 1/2” x 41” (13 x 1041mm.) 3.
Page 3 Bottom mount cover lifter - instructions (CRS 1) To assemble & install: Figure 1 Figure 4 1. Position the spa cover (in closed position) on the spa, making sure that all four corners are properly positioned and square on the spa.
Page 4 T: + 9714 - 8815223 www.canadianspacompany.fr F: + 9714 - 8815224 www.canadianspacompany.co.uk Canadian Spa Company meets ISO 9001 Standards When you purchase a hot tub from Canadian Spa Company, the ISO 9001 certification assures world class excellence in manufacturing and customer service. 07/06/13...
