Summary of Contents for Canadian Spa KP-10008

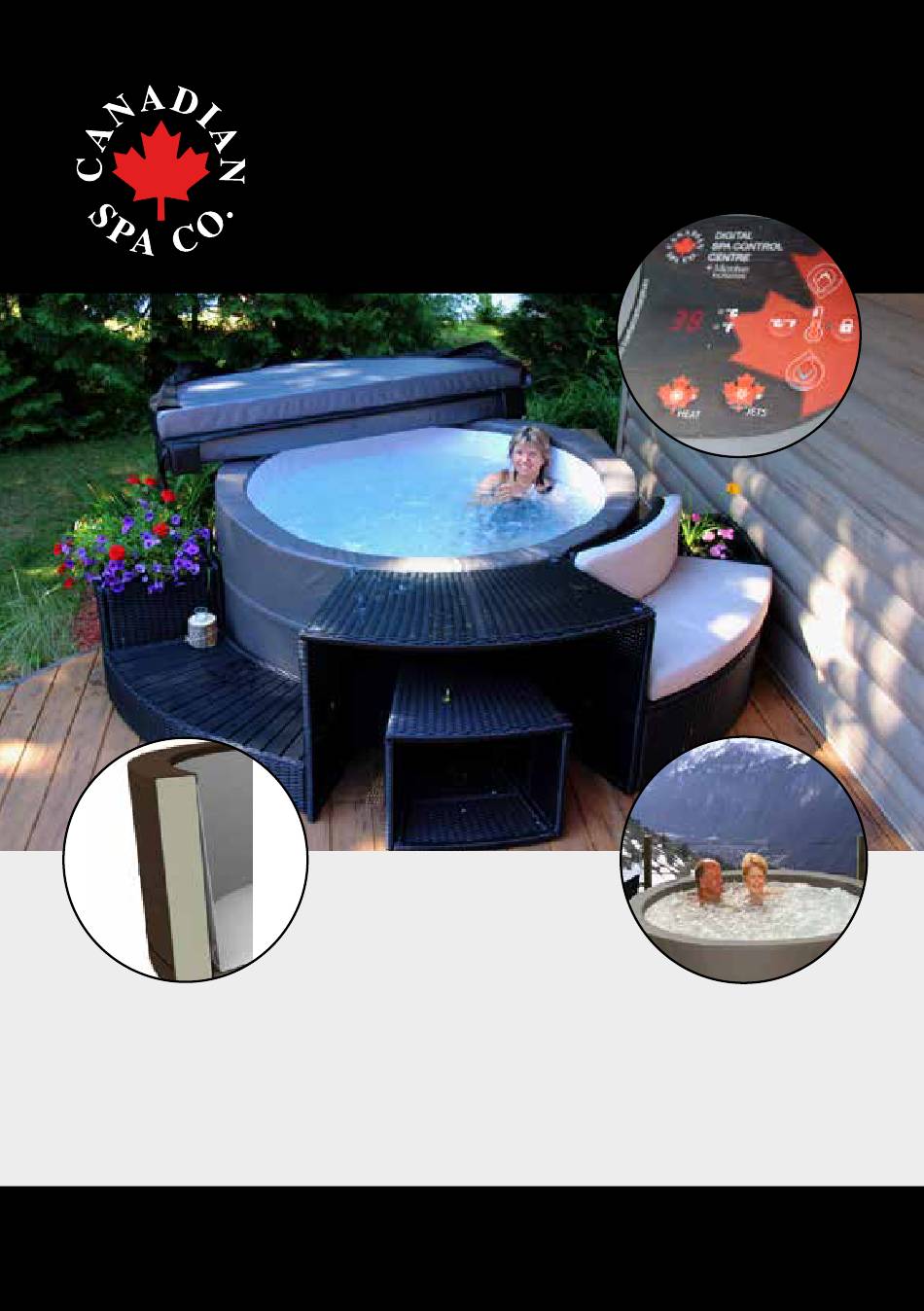

- Page 1 SWIFT CURRENT SPA Swift Current Swift Current Foam Wall Spa Foam Wall Spa Instruction Manual 220-240V 50Hz 13A Read this Manual before operation c a n a d i a n s p a c o m p a n y . c o m w w w .
- Page 2 SWIFT CURRENT SPA CONTENTS: PART 1: PART 6: SPECIFICATIONS DRAIN & STORE PART 2: PARTS LIST & ACCESSORIES PART 7: OPERATION CHECK LIST PART 3: INSTALLATION PART 8: CONTROL UNIT MESSAGES PART 4: CONTROL UNIT FUNCTIONS PART 9: TROUBLESHOOTING PART 5: WATER MAINTENANCE WARRANTY IMPORTANT SAFETY INSTRUCTIONS...
- Page 3 SWIFT CURRENT SPA PART 1: SPECIFICATIONS KP-10008 (CA17690GB) - Swift Current Item: Seating Capacity 5 Persons 160 x 73cm (63’’ x 29”) Spa Dimension (inner) 184cm x 73cm (73” x 29”) Spa Dimension (outer) 1000L Water Capacity 220-240V 50Hz Voltage...
- Page 4 SWIFT CURRENT SPA PART 2: PARTS LIST Swift Current & Rio Grande Spas: Take all the spa components out of the box and check your instruction manual that all the following key components are present: Foam Caps x 8 Foam Walls x 8 Portable Control Unit (PCU) x1 Bottom Liner x 1 Top Liner x 1...
- Page 5 Chlorinated Granules 500g • Foam free 500ML• pH Up 500g • pH Down 500g • Test Strips 3 Pack Filter (Buy 3 Get 1 Bonus). KA-10010 3 x 15 ft² Anti-microbial slip replacement filters for Canadian Spa Co. portable spas. This filter should be changed every 1 month or sooner depending on usage Classic Universal Step.
- Page 6 SWIFT CURRENT SPA PART 3: INSTALLATION 1. Site Selection IMPORTANT: Before you position, construct, and fill with water follow these instructions: IT IS IMPORTANT YOUR SPA IS LEVEL: After filling your spa check the water level against the wavy red lines marked on 3 sides of the spa.
- Page 7 SWIFT CURRENT SPA 4) Ensure the 3 holes in Foam OUTSIDE INSIDE Panel 1 are still aligned with the holes in the Bottom Liner. Ensure you put the cut out of the drain (fig.a) inside to the (fig. a) left of the three holes. 5) Insert the body of the top liner into the centre of the Spa, and the Drain Hose goes through the hole in the bottom of the Liner.
- Page 8 SWIFT CURRENT SPA 5. Install the Filter Cartridge Firstly check the filter size is compatible with your spa. Open the Filter Housing lid put the new filter cartridge into the cartridge chamber making sure filter grid is in place at the base of the housing. Replace Filter Housing Cap and seal by screwing Cap Fitting on.
- Page 9 SWIFT CURRENT SPA PART 4: CONTROL UNIT FUNCTIONS The Portable Control Unit (PCU): Digital Spa Control Centre Air Valve Filter Housing Water Heater Port Water Pump / Filter Port Air Jet massage and inflation Port PCU Controls Digital Spa Control Centre: Temperature Mode Button Temperature...
- Page 10 SWIFT CURRENT SPA L -1 L -2 L -3 F I L Jets Massage System ‘JETS’ Button: Press the ‘JETS’ button to activate the Jet Massage System on the spa. Pressing once will start the lowest speed of the jets (L-1 will display on the screen). Press again to increase the speed of the jets to L-2, and press again to reach the highest jet speed, L-3.
- Page 11 SWIFT CURRENT SPA Cleaning / Replacing Filter Cartridge WARNING: RISK OF ELECTRIC SHOCK. Unplug the PCU before beginning spa maintenance. NOTE: A dirty or incorrect filter cartridge may contaminate the spa water and cause damage to the heating function. 1. Carefully thread the two inlet/outlet caps on inner spa wall. (Ensure the rubber gaskets are in place within the plastic caps) 2.
- Page 12 SWIFT CURRENT SPA PART 6: DRAIN & STORE Drain System Locate and remove the external threaded Drain Cap. Attach Drain Hose to Drain Outlet. Locate and remove the stopper on the spa floor to allow water to drain. Dry the Spa and Portable Control Unit After an RCD test, press ‘JETS’...
- Page 13 SWIFT CURRENT SPA PART 8: CONTROL UNIT MESSAGES Causes Solutions CODE E1/ E2 Temperature control 1. Unplug RCD from outlet sensor short circuit 2. Please contact for service or open circuit High Heat: 1. Unplug the RCD cable from the outlet The water is 2.
- Page 14 SWIFT CURRENT SPA PART 9: TROUBLESHOOTING Problems Causes Solutions Spa Pump • RCD tripped • Power failure • RCD broken • Reset RCD/check if the cable is rated 2kW / 13amp Does Not • Check power source Operate Spa Pump •...
- Page 15 Cost of installation, removal, and/or shipping of the spa, is not covered by this Limited Warranty, this is a return to base warranty. In the event that Canadian Spa Co. deems the removal of the spa to a place of repair necessary or that the spa must be replaced, any and all costs of the spa removal and replacement (landscaping, decking, fencing and/or structure removal, alteration and/or replacement;...
- Page 16 Canadian Spa Company meets ISO 9001 Standards. When you purchase a hot tub from Canadian Spa Company, the ISO 9001 certification assures world class excellence in manufacturing and customer service. Errors and omissions excepted (E&OE).02/03/21 c a n a d i a n s p a c o m p a n y . c o m...
