Gardeners 8614470 Manual

8' Pivoting Trellis for Raised Beds & Elevated Planter Boxes

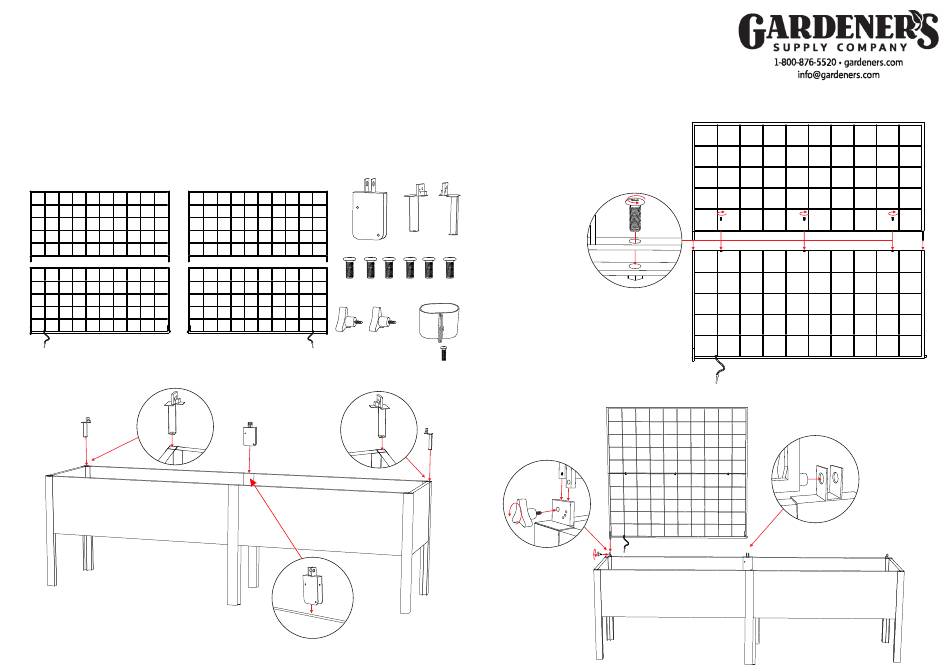

Part List
(2)Top Panels
(2)Bottom Panels
(1)Center Clamp
(2)Leg Inserts
(2)Threaded Knobs
(1) Clip
(4) Wooden Screws
Part List
Step-2: Insert the leg inserts on the corners of the longer side of the
Elevated raised bed. align the centre clamp to the same side and
screw in place with
wood screws.
Tool Required
Screw Driver
Hex Key (Included)
Remove the screws in place, assemble product
step by step.Retighten all screws and fitting
periodically using the required tool.
Step-1: Align a top panel with
the bottom panel and insert
in place. Screw the section
together. repeat the step
for the other two panels.
Step-3: Align one of the assembled
panels between the leg insert and
the centre clamp as
shown and screw in
place with one of the
knobs.
