CUDA 2412 Mounting Instructions

2412 Automatic Parts Washer
Detail and Power Brush Option
Field Mounting Instructions
Kit 8.725-251.0 Detail Brush • Kit # 8.725-245.0 Detail & Power Brush
1
27
26

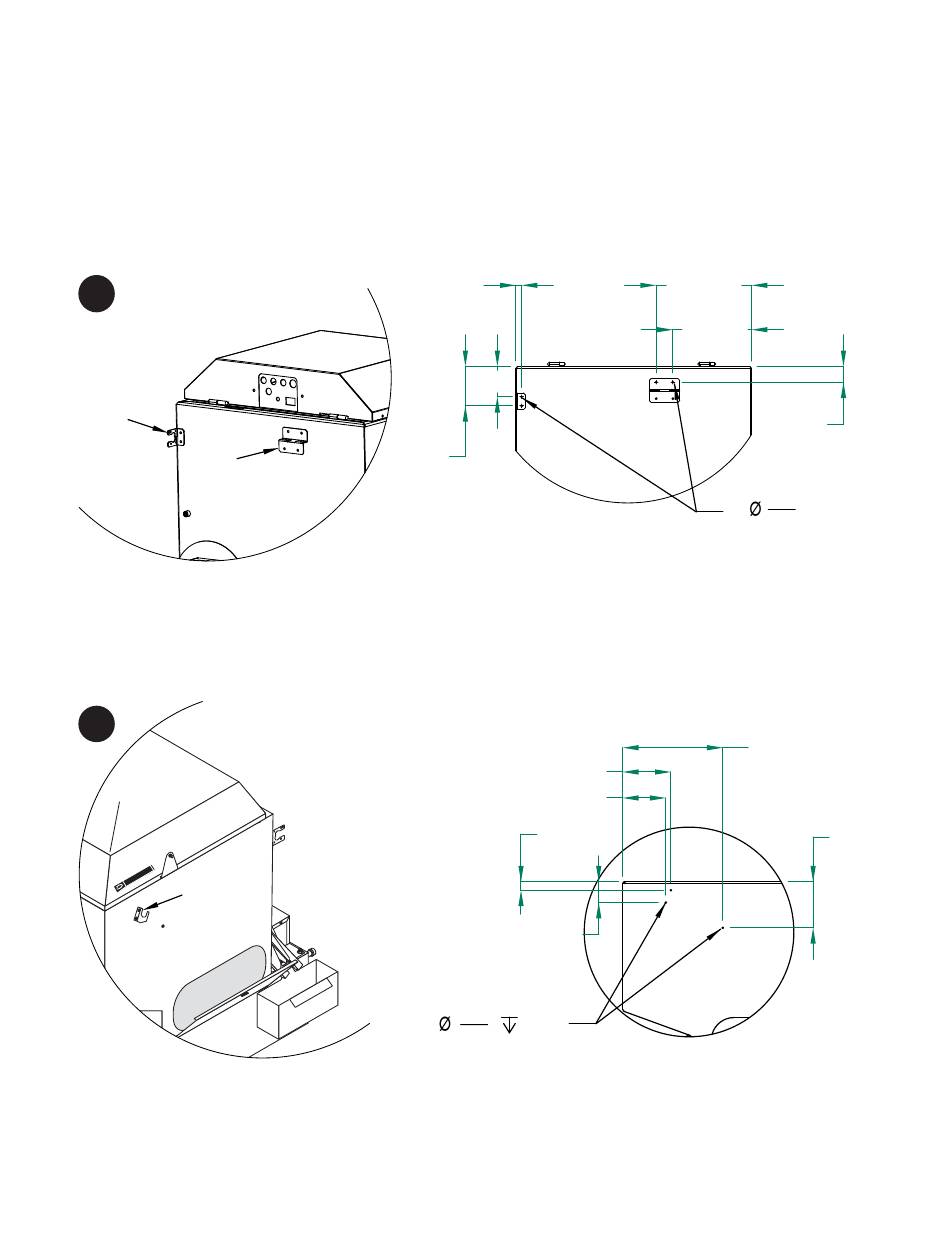

Step 1: Mark and drill four 3/16" holes using the measurements shown above. Attach the ball valve bracket and pump
bracket using the fasteners provided (items 12, 14, & 15).
2
16
Step 2: Mark and drill one 3/16" hole for the for the detail brush clip. Attach the detail brush clip with the fasteners
provided (Item 12, 14, & 15). If you have the power brush option drill two more 3/16" holes for the power brush
bracket. Attach the power brush bracket with the fasteners provided (Item 12, 14, & 15).
Note: The two holes for item 16 are for the power brush bracket. If you do not have a power brush option do not drill
these holes
CUDA 2412 Detail and Power Brush Option Field Mounting Instructions 8.915-874.0 - Rev 1.0.0
49/64"
4"
5 3/16"
BOLT ON BRACKET LAYOUT DIMENSIONS
REAR VIEW (LID NOT SHOWN)
6 21/64
5 21/32
1 5/32"
2 49/64"
MARK AND DRILL
3
"
3X THRU
16
ONE WALL
12 9/16"
10 3/8"
MARK AND DRILL
4X
13 11/64
BOLT ON BRACKET LAYOUT DIMENSIONS
SIDE VIEW (LID NOT SHOWN)
2 3/32"
3"
THRU ALL
16
6 1/16
