INSTALLATION & COMMISSIONING GUIDE
INDOOR UNITS
STANDARD PROFILE
EVY470T-6Q2
EVY540T-6Q2
Please Read This Guide
Congratulations on your purchase of an
ActronAir air conditioning system. This unit
has been designed and manufactured with the
highest quality standard in mind.
Please read this guide thoroughly and keep it
near the unit for future reference.
This manual is a controlled document which contains confidential and proprietary information.
Distribution, copying, modification and/or reproduction are prohibited without written consent from ActronAir.
EVY620T-6Q2
EVY700T-6Q2
Copyright © 2017 Actron Engineering Pty. Ltd. All rights reserved.

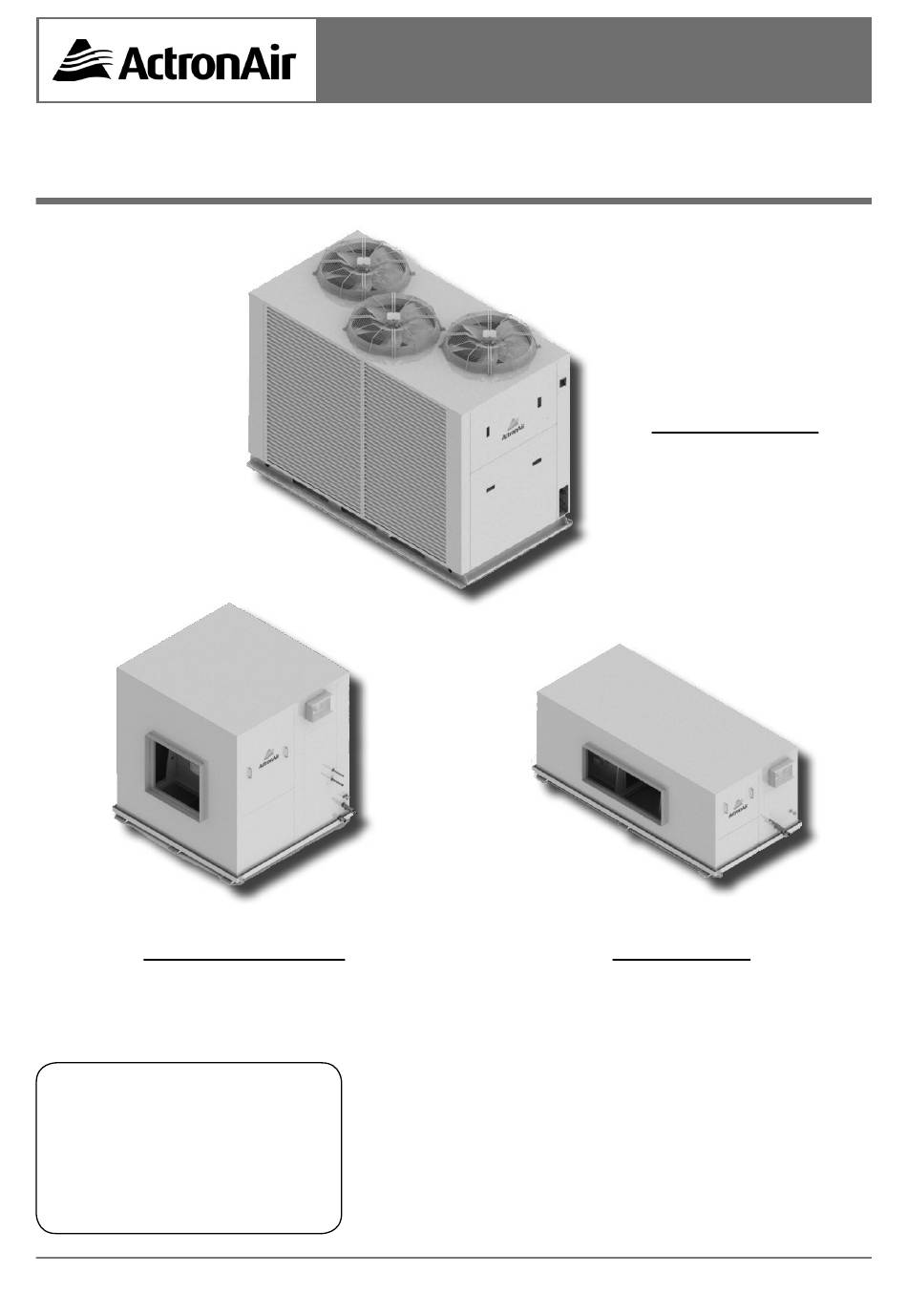

SPLIT TRI-CAPACITY
WITH COMMERCIAL CONTROL
CAY470T-6Q2
CAY540T-6Q2
INDOOR UNITS
LOW PROFILE
ELY470T-6Q2
ELY540T-6Q2
OUTDOOR UNITS
CAY620T-6Q2
CAY700T-6Q2
ELY620T-6Q2
ELY700T-6Q2
