INSTALLATION & COMMISSIONING GUIDE - INDOOR
Please Read This Guide
Congratulations on your purchase of an
Actron Air air conditioning unit. This unit has
been designed and manufactured with the
highest quality standard in mind.
Please read this guide thoroughly and keep it
near the unit for future reference.
This manual is a controlled document which contains confidential and proprietary information.
Distribution, modification, copying and/or reproduction are prohibited without written consent from Actron Air.

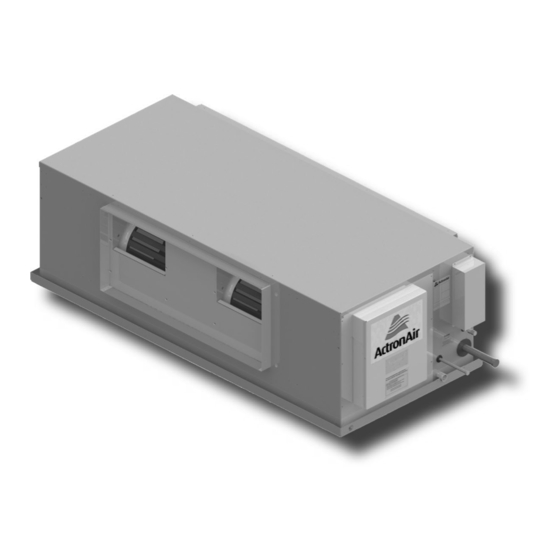

ESP PLATINUM QUE SPLIT DUCTED UNIT
INDOOR UNITS
ESP PLATINUM
ERQ2-14AS
ERQ3-17AS
ERQ4-19AS
Copyright © 2017 Actron Engineering Pty. Ltd. All rights reserved.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for actionair ESP PLATINUM ERQ2-14AS
Summary of Contents for actionair ESP PLATINUM ERQ2-14AS
- Page 1 ESP PLATINUM QUE SPLIT DUCTED UNIT INSTALLATION & COMMISSIONING GUIDE - INDOOR INDOOR UNITS ESP PLATINUM ERQ2-14AS ERQ3-17AS ERQ4-19AS Please Read This Guide Congratulations on your purchase of an Actron Air air conditioning unit. This unit has been designed and manufactured with the highest quality standard in mind.
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY INSTRUCTIONS 1. Only licensed HVAC technicians* should install and Introduction ..............service this air conditioning equipment. Improper Safety Instructions............service or alteration by unqualified technician could Components Overview........... result in significant and major damage to the product or property which may render your warranty null Unit Dimensions and Clearances ........ -
Page 3: Components Overview
DATA SRD175C / SRD175E COMPONENTS OVERVIEW DUCTED UNIT INDOOR UNIT COMPONENTS OVERVIEW Indoor Unit EC Motor ID Coil 8Z-VAQ Module EMC Filter ID Fans Lid - Control Panel Indoor Unit Control Board Indoor Control Panel DIGITAL SCROLL COMPRESSOR ActronAir is constantly seeking ways to improve the design of it’s products, therefore specifications are subject to change without notice. Copyright ©... -
Page 4: Unit Dimensions And Clearances
INDOOR UNIT DIMENSIONS / CLEARANCES ERQ2-14AS / ERQ3-17AS 1290 O/A OVERALL NOMINAL DIMENSION (H x W x D) 1100 = 412 x 1290 x 615 SUPPLY DUCT (H x W) = 300 x 715 RETURN DUCT = 340 x 1100 DRAIN CONNECTION = 20mm OD INDOOR COIL INDOOR... - Page 5 INDOOR UNIT DIMENSIONS / CLEARANCES ERQ4-19AS OVERALL NOMINAL DIMENSION (H x W x D) = 435 x 1420 x 680 SUPPLY DUCT (H x W) = 300 x 715 1420 O/A RETURN DUCT = 360 x 1140 DRAIN CONNECTION = 20mm OD 1140 INDOOR COIL INDOOR...
-
Page 6: Two-Piece Fan Coil
flexible ducting. Ducting is attached to each section by either a 1, 2 or 3 way EASY FIT supply plenum or a twin spigot duct plate, these can be fitted to either side of each section. ADD -ON COOLING is simply achieved by fitting only the coil section into an existing ventilation system. TWO-PIECE FAN COIL (FRQ4-19AS / ARV4-19AS) The innovative 2 - PIECE fan coil system can provide a solution to difficult and tight roof space installations. -
Page 7: Installation Instructions
INSTALLATION INSTRUCTIONS The installation instructions provided below are intended as a guide only and does not supersede the relevant council, state and federal codes, regulations and building code standards. Compliance and consultation with the authorities having jurisdiction with the installation of this equipment is the responsibility of the installer. Actron Air will not be held liable for any damages or costs as a result of the installer’s failure to comply. -
Page 8: Unit Lifting Procedures
UNIT LIFTING PROCEDURES ECTION DATA SRD175C / SRD175E WARNING SPLIT DUCTED UNIT WH&S regulations must be observed and will A. CRANE LIFTING METHOD take precedence during lifting process. NOTE: Crane lifting method is recommended for high rise lifting. EQUIPMENT REQUIRED FOR CRANE LIFTING: Connect the loop ends of slings unto shackle - 1 x shackle - 2 x nylon slings... -
Page 9: Condensate & Safety Tray Drainage Instructions
CONDENSATE AND SAFETY TRAY DRAINAGE INSTRUCTIONS CONDENSATE AND SAFETY TRAY DRAINAGE REVISION DATE DRAWING NUMBER 05 - 05 - 2010 DFDRAIN - 100505 SUGGESTED MINIMUM SLOPE TO ENSURE CORRECT DRAINAGE 15MM 25MM PREFERRED METHOD OF CONNECTING P-TRAP CLAMP BANDS ENSURE DRAIN PIPES P.V.C SLOPE DOWN FROM THE ELBOW... -
Page 10: Zone Barrels Mounting Instructions
ZONE BARRELS MOUNTING INSTRUCTIONS In the installation of zone barrels, extra caution must be taken as damper motors are IP20 Rated and MUST NOT BE INSTALLED IN AN AREA WHERE CONDENSATION WILL BE AN ISSUE. It is highly recommended that indoor units and accessories, particularly zone barrels, be mounted in the roof cavity. Mounting of zone barrels should be horizontally positioned ensuring that the damper motor is located on the upper half of the barrel’s centreline (positions that range from 9 o’clock to 3 o’clock), as shown below: Damper Motor on Top... -
Page 11: Wiring Diagram
SYSTEM WIRING DIAGRAM Variation Code: Variation: PLATINUM QUE Base VARIOUS Model No: Description: QUE-SERIES INDOOR BOARD WITH 2 TOUCH CONTROLLERS Drawn: Date: Revision Size: 05-09-2016 Drawing No: WD2011 This drawing remains the intellectual property of Actron Engineering Pty Ltd. Date: 28-11-2016 Approved: Reproduction, modification and/or distribution are prohibited without written consent. -
Page 12: Maximum Cable Lengths
MAXIMUM CABLE LENGTHS OPTIONAL DUAL MASTER CONTROLLER (Mimic Logic) Secondary ontroller Master Controller MODEL INDOOR UNIT R-410A “CAUTION” PLEASE NO GAS / PRESSURE IN THE ENSURE THERE IS FAN COIL UNIT BEFORE REMOVING COPPER END CAPS. 3670-043 Cat5E spec cable with RJ45 MODEL connector and cable boots - Yellow R-410A... - Page 13 MAXIMUM CABLE LENGTHS INTEGRATED ZONE BARRELS (1-Zone Up To 8-Zone Options / Max. of 10 Zone Motors per System ^^) MODEL TOTAL CABLE LENGTH PER INDIVIDUAL ZONE (from 8-zone module) MUST NOT EXCEED 100 MTRS TOTAL LENGTH OF ALL ZONING CABLES (from 8-zone module) MUST NOT EXCEED 250 MTRS.
-
Page 14: Maintenance Frequency Checklist
MAINTENANCE FREQUENCY CHECKLIST Regular servicing of equipment by a qualified technician is recommended every 12 months for residential applications and every quarter for commercial applications. Regular servicing of your unit helps in maintaining its optimum The following checklist and service periods are provided as a guide only, performance and reliability. -
Page 15: Key Parts List
KEY PARTS LIST ESP PLATINUM MODELS ERQ2-14AS ERQ3-17AS ERQ4-19AS PART ITEM DESCRIPTION QUANTITY QUANTITY QUANTITY NUMBER EC ID Fan 2520-333 EC ID Fan 2520-334 Indoor Coil Assembly 1040-156 Indoor Coil Assembly 1040-254 Indoor Coil Assembly 1040-177 ---- Coil Piston 4540-088 Coil Piston 4540-098 Coil Piston... - Page 16 1800 119 229 actronair.com.au Refrigerant Trading Authorisation No.: AU06394 Actron Engineering Pty Ltd Printed in Australia ABN 34 002 767 240 Part No. 0525-052 HEAD OFFICE SYDNEY AUSTRALIA Rev. No. 4.0 180302 Copyright © 2017 Actron Engineering Pty. Ltd.
