Summary of Contents for Air-Care ZEPHYR FG0285

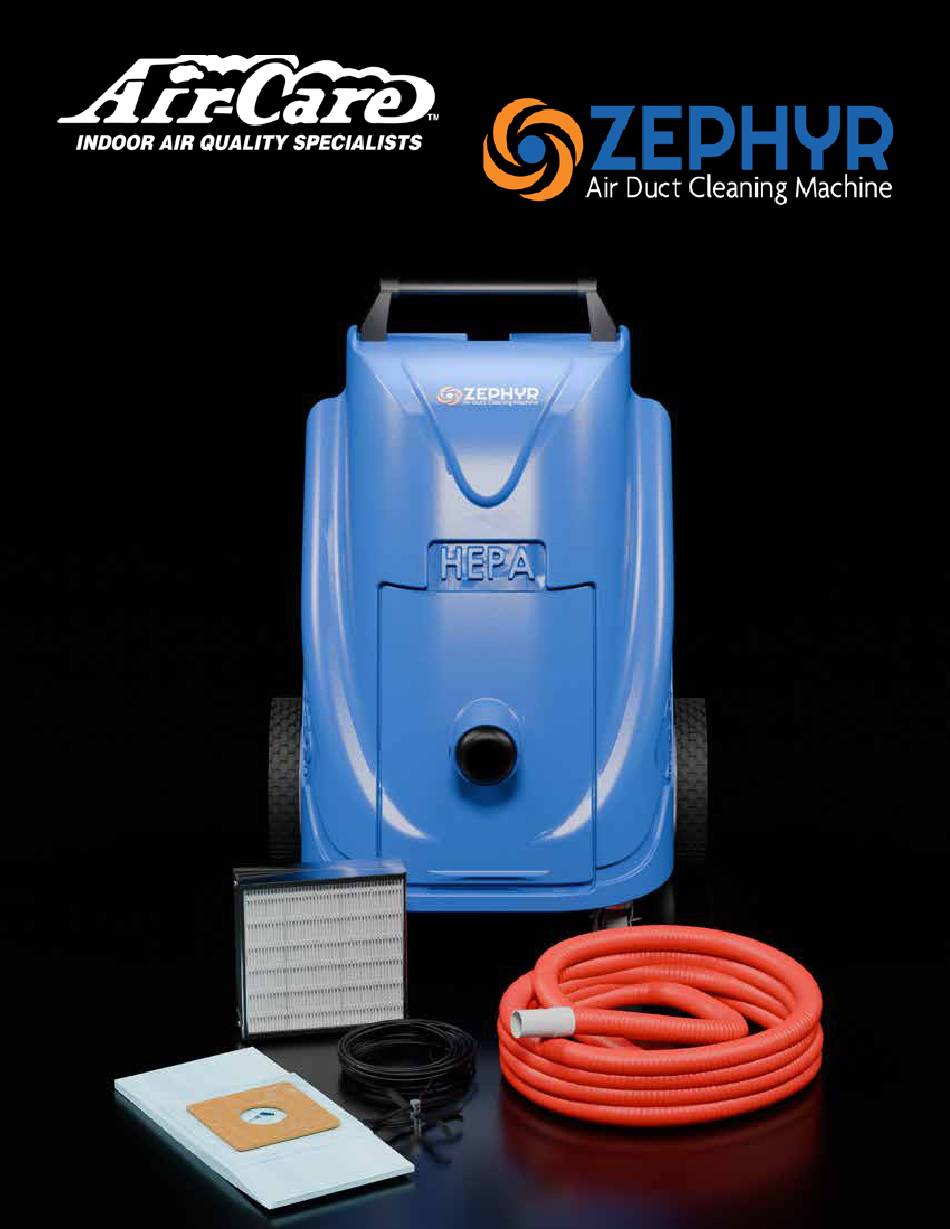

- Page 1 USER GUIDE...
- Page 2 Division of D.P.L. Enterprises Inc. 3868 East Post Road, Las Vegas, Nevada 89120, (702) 454-5515, FAX (702) 454-5225 Website: www.air-care.com; E-mail: cs@Air-Care.com...
-
Page 3: Table Of Contents
PAGE 3 TABLE OF CONTENTS CHAPTER PAGE Unpacking Instructions Safety Precautions Duct Cleaning Procedures Dryer Vent Cleaning (Optional) Troubleshooting Guide Maintenance Parts and Accessories Specifications Limited Warranty Note: All specifications, instructions, and materials may change without notice. -
Page 4: Unpacking Instructions
• Never allow anyone but a properly trained technician to use the equipment or cleaning products. • All Air-Care equipment is designed for US standard 115 volt, 60 Hz AC. Most Air-Care equipment can be special ordered to meet other worldwide standards for a reasonable price and delivery schedule. -
Page 5: Duct Cleaning Procedures
PAGE 5 DUCT CLEANING PROCEDURES Important: Turn OFF air system before cleaning air ducts. How to insert the Vacuum Hose (Red 1.5”) and Drill Powered Cable (Cordless) First Place sheets or other material over furniture and remove the vent covers. These vents should be cleaned outside with Dynamite, heavy duty degreaser, rinsed and dried then reinstalled after the ducts are cleaned. -
Page 6: Dryer Vent Cleaning (Optional)
PAGE 6 DUCT CLEANING PROCEDURES (CONT.) Optional Hose/Brush Set-up It may be cumbersome to have the brush line and hose separated. Another approach you can use is to attach the brush to the hose. We recommend using duct tape in several locations to keep the brush line stable. - Page 7 PAGE 7 DRYER VENT CLEANING Dryer exhaust ducts vary in construction, materials and configuration from city to city. The general procedure for using the drill powered dryer duct cable described here may need to be modified to safely and effectively clean these ducts in your area. Note: A drill is not included with the Zephyr.
-
Page 8: Troubleshooting Guide
DRYER VENT CLEANING (CONT.) 10) If you have access to only one end of the exhuast duct, the Air-Care Zephyr “Y” adapter (Included in Dryer Duct Cleaning Kit) allows the vacuum and the cable to be inserted from the same end of the exhaust duct. -
Page 9: Maintenance
PAGE 9 MAINTENANCE The Zephyr requires a minimum amount of maintenance, normall limited to cleaning or replacing filters as they become filled with dirt and debris. It is always beneficial to keep the exterior and interior of the machine clean. A qualified technician should perform all electrical or mechanical repairs. Filter Removal &... -
Page 10: Specifications
PAGE 10 SPECIFICATIONS Specification Description Air Flow 200 cfm Static Pressure 75" H2O Motor Voltage* 110 Volt AC, 50/60 Hz (220 Option Available) Motor Amps 13 Amps Vacuum Hose Hose Cuff fitting for 3" or 2" x 25 ft Hose (Hose adapter included) Filtration 4 Stage HEPA Collector Bag... -
Page 11: Limited Warranty
1 Year Wheels & Filters No Warranty Warranty covers both parts and labor (labor is to be performed at Air-Care’s facility located at 3868 E. Post Road; Las Vegas, Nevada). Warranty is extended to the original purchaser and is not transferrable.
