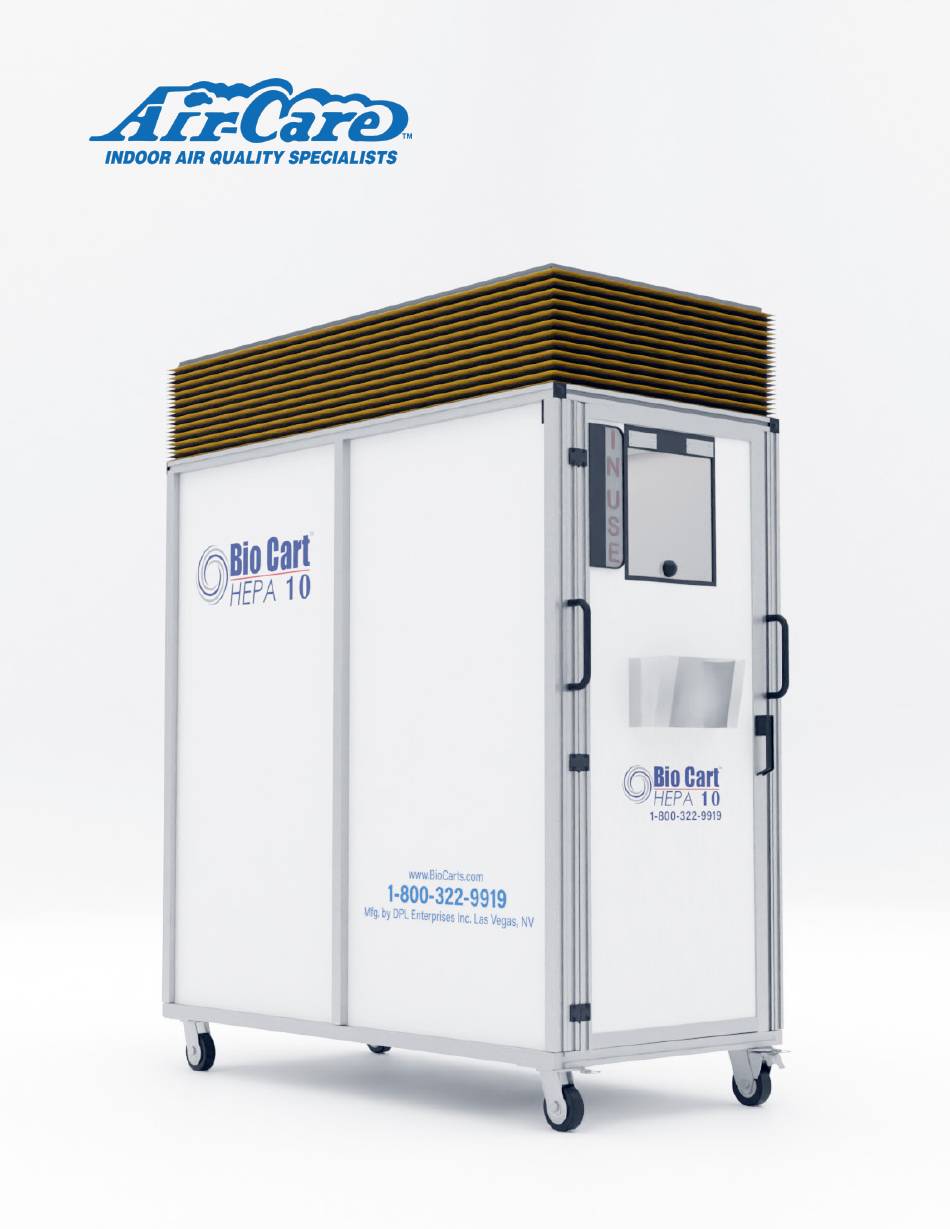

- Page 1 BIO CART HEPA 10 USER GUIDE...
- Page 2 BIO CART HEPA 10 Bio Cart 10 with telescoping ladder Bio Cart HEPA 10, 120 Volt P/N FG0185 Rev A MM0200 Manual, Bio Cart 10 Division of D.P.L. Enterprises Inc. 3868 East Post Road, Las Vegas, Nevada 89120, (702) 454-5515, FAX (702) 454-5225...
-
Page 3: Table Of Contents
PAGE 3 TABLE OF CONTENTS CHAPTER PAGE Introduction to Portable Containment Units Unpacking Bio Cart 10 Testing the Bio Cart 10 Safety Operating the Bio Cart 10 Maintenance Parts List Specifications Compliance Warranty Rev. January 2023 - Part Number FG0273 Specifications subject to change without notice. -
Page 4: Introduction To Portable Containment Units
PAGE 4 INTRODUCTION During Construction, maintenance or when inspections are performed in an area that may contain dust, dirt or biological contaminates, there is always the possibility for those contaminates to be released into the room and picked up by the air currents and spread to additional areas. When major remodeling or repairs are performed it has been standard practice to install a long term, but temporary containment area with spring poles and plastic film using HEPA air scrubbers to filter out the contaminates and exhaust clean air out of the contained area and provide a NEGATIVE... - Page 5 • Take photos of the damage • Refuse the shipment • Contact Air-Care at 800.322.9919 or cs@air-care.com. Remove packing and straps from exterior of Bio Cart and pallet. Do not dispose of packing until you have completed your inspection of the Bio Cart inside and out. If the Bio Cart needs to be returned due to damage, you will need the packaging to repack.
- Page 6 The Bio Cart only has a few mechanical and electronic parts to test. If any of these tests fail, contact Air-Care Immediately. 800-322-9919, 702-454-5515 or cs@air-care.com. 1. Test the brakes on both wheels with locks to be sure they will secure the cart in working position.
-
Page 7: Safety
Do NOT remove the ground pin on If you have any questions regarding the safe and reliable operation of the Air-Care Bio Cart HEPA 10, Always plug the power cord into a grounded electrical outlet. - Page 8 PAGE 8 OPERATION The Bio Cart HEPA 10 is the simplest portable containment carts to operate, and they also have more features than other carts. Most of the features can be set to operate in normal situations and remain in that configuration unless special settings are required for a particular job site.
-
Page 9: Maintenance
In other areas, lesser measures are required. Consult with the staff in the planned work areas for detailed Infection control procedures. Contact Air-Care if you have questions about how to meet specific requirements. Generally, cleaning the inside of the cart after each use is Electrostatic recommended. -
Page 10: Unpacking Bio Cart
Air Care for replacement materials. Check the window and frame for loose or missing screws and replace immediately. If the window becomes so scratched that the operator cannot see through them clearly, call Air-Care and order replacement panels. -
Page 11: Parts List
PAGE 11 PARTS LIST DESCRIPTION PART NUMBER Complete Bio Cart HEPA 10, 120 Volt version FG0185 Operator Manual MM0200 HEPA air Filter, 99.97% at 0.3 microns (SABio0049) F0046 Pre-Filter, Pad and Frame 12.5 x 23.5 x1 with Poly Ester and Polypropylene pads... -
Page 12: Specifications
PAGE 12 SPECIFICATIONS SPECIFICATION DESCRIPTION 150 Watt halogen work light. 5 LED portable head band light with Optional. Accessories magnetic holder and batteries. 880 CFM@300 watt • 62 Db Air Scrubber Fan Fire retardant black and yellow vinyl that Is 3 Inches high when collapsed and 45 Inches Bellows extended. -
Page 13: Compliance
The Bio Cart HEPA 10 is a portable containment cart that extend to a 10 ft 2” ceiling. The Bio Cart 10 provides negative pressure and air exchange rates to comply with CDC guidelines to contain dust and infectious particles with a HEPA air scrubber. -
Page 14: Warranty
Ladder, Wheels, & Filters No Warranty Warranty covers both parts and labor (labor is to be performed at Air-Care’s facility located at 3868 E. Post Road; Las Vegas, Nevada). Warranty is extended to the original purchaser and is not transferable.
