Beurer FT 95 Manual

Introduction

Our name stands for high-quality, thoroughly tested products for application in the areas of heating, weight management, blood pressure, body temperature, pulse, gentle therapy, massage, and beauty.
Register your product today to receive further benefits:

• added protection for your purchase
• health and wellness tips
• new product information
• continual outstanding customer service and support.

Visit www.registerbeurer.com or contact customer service at 1-800-536-0366.
Please read these instructions for use carefully and keep them for later use.
Make them accessible to other users and observe the information they contain.

Getting to Know your Instrument

This infrared thermometer measures:

• Temperature of human body
• Surface temperature of objects and liquids
• Ambient temperatures

Additional features include:

• Stores last 60 measurements for plotting changes in temperature
• Stores date and time with each measurement
• Fever alarm for temperatures over 99.5°F (37.5°C)
• Switchable between °F and °C
• Bluetooth® communication via our free mobile app (requires a mobile device compatible with Bluetooth version 4.0 or later). For a list of compatible devices, scan this QR Code:

Different types of thermometers measure body temperature differently. The resulting temperature varies depending on the part of the body where the measurement is taken. Temperatures in various parts of the body can vary up to two degrees Fahrenheit.

NOTE: Temperatures measured with different thermometers cannot be compared. You should tell your doctor or keep in mind if you are measuring for yourself what type of thermometer you use and in which part of the body.

Temperature is also influenced by:

• Individual metabolism
• Age (body temperature is higher in babies and small children and falls with increasing age. Greater temperature fluctuations occur faster and more often in children)
• Clothing
• Outside temperature
• The time of day (body temperature is lower in the morning and increases slightly throughout the day).
• Physical and, to a lesser extent, mental activity.

NOTE: Taking your temperature provides information about your current state of well-being. If you are uncertain about interpreting the results or if the result is abnormal (e.g. fever), consult your doctor. This also applies in the case of slight temperature changes if there are other symptoms of illness such as agitation, severe sweating, flushed skin, fast pulse rate, tendency to collapse, etc.

Package Contents

• Non-Contact Thermometer FT 95
• 2 x 1.5 V AAA batteries (LR03)
• Instruction Manual

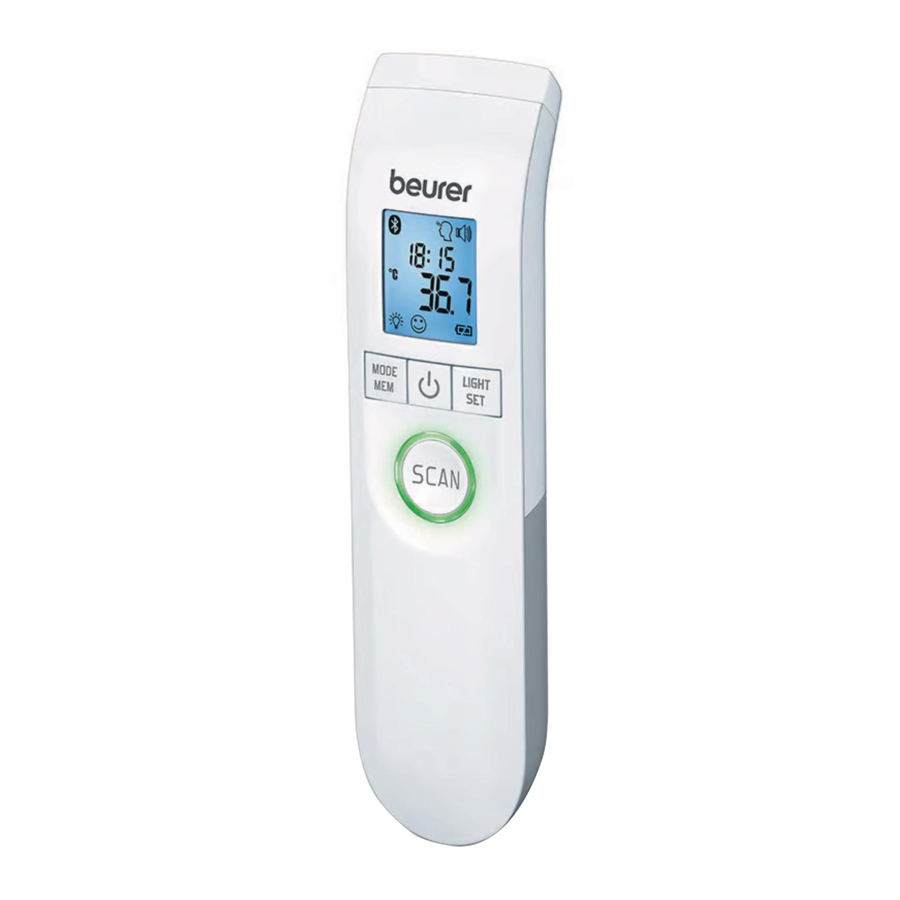

Parts and Controls

1. LCD Display
2. MODE/MEM button
3. button
4. LIGHT/SET button
5. START button
6. Fever indicator
7. Measuring sensor
8. Battery Compartment

Buttons	Functions
MODE/MEM	MODE Sets the measurement mode. MEM Displays the stored measurements.
LIGHT/SET	LIGHT Turns LCD Display backlight on and off. SET Sets the basic functions.
	Press to switch device on/off.
START	Press to measure temperature.
Fever Indicator	Illuminates green/yellow/red depending on the measured temperature.

Display description

1. Bluetooth® Indicator
2. Object Temperature mode
3. Room (Ambient) Temperature Mode
4. Forehead Temperature mode
5. Beep Indicator
6. Year
7. Memory Function
8. Date
9. Temperature/Memory Space Number Display
10. Battery Level Indicator₉
11. Fever Indicator (≥ 100.4°F / ≥ 38.0°C )
12. Normal Body Temperature Indicator
    (< 99.5°F /< 37.5°C )
13. Backlight Mode Indicator - If on, backlight activates during measurement
14. Fahrenheit Scale Indicator
15. Celsius Scale Indicator
16. Year/date/time display

To Set Up

Before first use, remove the battery compartment cover and insert two "AAA" size batteries (included), observing the correct polarity as indicated inside the compartment. Slide the battery compartment cover back into place.

Setting the time and date:

1. Press the ON/OFF Button to switch the device on. Press and hold the LIGHT/SET Button; the Celsius/ Fahrenheit scale indicator will appear on the LCD Display. Press the MODE/MEM Button to select Celsius (°C) or Fahrenheit (°F) as desired.

2. The time format will appear on the LCD Display. Press the MODE/MEM button to select 12 or 24-hour display format and then press the LIGHT/SET button to save and continue.

3. Continue in this fashion to set hour, minute, year, month, day, backlight mode, beep on/off, and Bluetooth on/off in turn.

4. Press the LIGHT/SET button to save and exit; the device will shut off.

To Use

Forehead Temperature Measurement:
NOTES:

• Physical activity, increased perspiration on the forehead, taking vasoconstrictive medication and skin irritations can distort the measurement.
• The forehead, or the temples, must be free from perspiration and cosmetics.
• If possible, take three measurements on the forehead. If the three measurements differ, use the highest value.
• If the forehead area is covered in hair, sweat or dirt, clean the area and then wait for 10 minutes before measurement.
• Keep the thermometer still during measurement. Moving the thermometer during measurement may cause incorrect results.

1. Press the ON/OFF Button " " to switch the thermometer on; the LCD Display will activate in forehead temperature measurement mode as indicated by the forehead icon at the top of the display.

2. Hold the thermometer 1-2 inches from the forehead while pointing the sensor toward the middle of the forehead. Press the START button to measure.

3. After about a second, the thermometer will beep once and display the measurement. Press the ON/OFF Button to shut the thermometer off.


4. If the measurement is less than 99.5°F (37.5°C), the "no fever" icon will display and the Fever Indicator ring around the ON/OFF Button will illuminate in green. If the measurement is 99.5°F - 100.3°F (37.5°C - 37.9°C), the Fever Indicator will illuminate yellow. If the measurement is over or exactly 100.4°F, the fever icon will display and the Fever Indicator will illuminate red.

5. The device is ready to take another measurement when two short beeps sound and the forehead symbol stops flashing. The device will shut off after about one minute; to manually shut the device off, press and hold the ON/OFF button.

Bluetooth® and the Beurer HealthCoach app
To store measurements on your mobile device, download and install the free HealthCoach app from the Google Play Store (for Android devices) or the Apple App Store (for iOS devices). After downloading the app, start it and add FT95 under "Settings--> My devices." If you find that measurements do not transfer to the app, try removing the protective cover from your mobile device to ensure the signal is not being blocked.
If Bluetooth is active on the thermometer and it is paired with your mobile device, measurements will transfer to the Beurer HealthCoach mobile app. The Bluetooth® symbol will flash on the LCD Display while the thermometer attempts to connect to the app for about 30 seconds. The Bluetooth icon will stop flashing when the thermometer connects to your device's mobile app and stored measurements will then transfer. Afterwards, the thermometer will shut off after 60 seconds, or press the ON/OFF Button to shut it off manually.

Viewing Stored Measurements
This device stores 60 measurements, along with the date/time and "fever"/"no fever" classification. With the device switched on, press and hold the MODE/MEM button for about three seconds; the most recent measurement will display. Press the MODE/MEM button repeatedly to cycle through the older measurements.

Surface temperatures:
To measure the surface temperature of an object, change the thermometer to Object Temperature Mode.

Ambient temperature:
To measure the ambient temperature in your location, switch the thermometer to ambient temperature mode.

1. Press the ON/OFF Button to switch the thermometer on. Change the thermometer to ambient temperature mode by pressing the MODE/ MEM Button twice. The ambient temperature mode icon will display.

2. The ambient temperature around the thermometer will display. The thermometer will shut off about one minute if no buttons are pressed; press the ON/OFF button to shut the thermometer off manually. Note that ambient temperature measurements are not saved.

Care and Maintenance

• The sensor is the most sensitive part of the thermometer. Work carefully when cleaning the sensor to avoid product damage. Use a clean cloth or cotton swab moistened with disinfectant, alcohol, or warm water.
• Do not use any harsh cleaning products.
• Before prolonged storage, remove the batteries.
• Do not use or store the device in excessively high or low temperature or humidity, in direct sunlight, near an electrical current or in dusty locations.
• To clean the device, use a soft, damp cloth and a mild detergent. Ensure water does not get into the device. If the device does get wet, remove the battery immediately and let dry completely before reuse.
• Never immerse the device in water.
• When storing the device for an extended period, remove the battery.

Troubleshooting Guide

Error message	Problem	Solution
	Autotest in progress, device not ready.	Wait for forehead symbol to stop flashing.
	Ambient temperature is not within measurement range.	Place the thermometer in an ambient temperature between 59°F and 104°F (15°C - 40°C) for at least 30 minutes.
	Unable to transfer the data via Bluetooth®.	Please observe the information in chapter "Transfer of measurements via Bluetooth®".
	Forehead temperature above 108°F (42.2°C) or surface temperature above 176°F (80°C).	Only use thermometer within measurement range.
	Forehead temperature below 93.2°F (34°C) or surface temperature below 32°F (0°C).	Only use thermometer within measurement range.
	Batteries low or depleted.	Replace batteries.

Technical Specification

Important safety notes

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
If the instruction manual is damaged or if you no longer have the instruction manual in your possession, please contact Beurer customer service Please see warranty for service contact

Signs and symbols
Whenever used, the following signs identify safety and property damage messages and designate a level of hazard or seriousness.
READ THIS ENTIRE MANUAL INCLUDING THE SAFETY SECTION AND ALL INSTRUCTIONS AND WARNINGS COMPLETELY AND CAREFULLY BEFORE USING THIS PRODUCT FOLLOW ALL SAFETY INSTRUCTIONS AND WARNINGS TO AVOID HAZARDOUS SITUATIONS AND TO MAKE CORRECT USE OF THIS PRODUCT

	This is the warning symbol. Warning indicates a potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
	Indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.
NOTICE	Addresses practices not related to personal injury, such as product and/or property damage.
	Note Note on important information
	Type BF applied part
	Follow instructions for use
	Permissible operating temperature and humidity
	Permissible storage temperature and humidity
	Serial number
	Device protected against foreign objects ≥ 12.5 mm and against water dripping at an angle
	Cross-reference with another section.

To reduce the risk of personal injury or product/property damage:

• This device is designed solely for non-commercial, household use in non-invasively measuring temperatures via an infrared sensor of the human body for persons of all ages, as well as detecting surface temperatures of objects and ambient temperatures of surrounding areas. Do not use for any other purpose.
• This thermometer is a sensitive electronic device. Treat it carefully and do not expose it to any sharp impacts.
• Do not expose the thermometer to direct sunlight.
• Do not disassemble this unit.
• The thermometer is NOT waterproof; keep away from water and other liquids.
• After physical activity, a bath or spending time outdoors, wait approx. 30 minutes before you take a measurement on your forehead.
• Before each use, ensure the sensor is undamaged; otherwise, contact customer service.
• The device needs to be in the room in which the measurement is taken for at least 30 minutes before use.
• This device is not intended for commercial or clinical use.
• Measure your temperature regularly to obtain your normal average temperature. If you suspect you have a fever, simply compare your normal average temperature with the temperature measured currently.
• Do not self-diagnose or self-medicate on the basis of the measurements without consulting your doctor. In particular, do not start taking any new medication or change the type and/or dosage of any existing medication without prior approval.
• Clean the thermometer after each use (see Care, Maintenance and Disposal).
• The manufacturer is not liable for damage resulting from improper or careless use.
• Children must not be allowed to use the device. Medical devices are not toys.
• Do not touch the lens with your fingers.
• Read these instructions for use carefully and keep them for later use.
• Packaging materials are a deadly hazard for children and can cause suffocation. Remove all packaging materials immediately and keep them away from children at all times.

NOTICE – To reduce the risk of product/property damage:

• Taking your temperature provides information about your current state of well-being. If you are uncertain about interpreting the results or if the result is abnormal (e.g. fever), consult your doctor. This also applies in the case of slight temperature changes if there are other symptoms of illness such as agitation, severe sweating, flushed skin, fast pulse rate, tendency to collapse, etc.
• Temperatures measured with different thermometers cannot be compared. You should tell your doctor or keep in mind if you are measuring for yourself what type of thermometer you use and in which part of the body.
• Portable and mobile HF communication systems may interfere with this device.

Notes on electromagnetic compatibility

• The device is suitable for use in all environments listed in these instructions for use, including domestic environments.
• The use of the device may be limited in the presence of electromagnetic disturbances. This could result in issues such as error messages or the failure of the display/device.
• Avoid using this device directly next to other devices or stacked on top of other devices, as this could lead to faulty operation. If, however, it is necessary to use the device in the manner stated, this device as well as the other devices must be monitored to ensure they are working properly.
• The use of accessories other than those specified or provided by the manufacturer of this device can lead to an increase in electromagnetic emissions or a decrease in the device's electromagnetic immunity; this can result in faulty operation.
• Failure to comply with the above can impair the performance of the device.

Battery Handling Safety Precautions

• Use only the size and type of batteries specified.
• Be sure to follow the correct polarity when installing the batteries. Reversed batteries may cause damage to the device.
• Do not mix different types of batteries together (e.g., alkaline and carbon-zinc or rechargeable batteries) or old batteries with fresh ones. Always replace batteries as a simultaneous set.
• If the batteries in the device are depleted or the device will not be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.
• Do not try to recharge batteries not intended to be recharged; they can overheat and rupture (follow battery manufacturer's directions).
• Do not dispose of batteries in fire, batteries may explode or leak.
• Clean the battery contacts and also those of the device prior to battery installation.
• Remove discharged batteries from the product and dispose/recycle in compliance with all applicable laws.
• Should battery fluid leak and come into contact with your eyes or skin, immediately rinse with plenty of clean water. Please call 911 immediately.
• Batteries should not be taken apart, thrown in the fire or short circuited.
• If a battery has leaked, put on protective gloves and clean the battery compartment with a dry cloth.
• Keep batteries away from children and pets. Batteries may be harmful if swallowed. Should a child or pet swallow a battery, seek medical assistance immediately.
