Lyyt 156.776UK User Manual

High Output LED Tape
User Manual
Introduction
Lyyt high output LED tape is supplied on 5m reels and operates from a 24Vdc power supply.
Installation should be carried out by competent electrical installers, observing the relevant
electrical safety procedures. The tape has a self-adhesive backing to allow it to be easily
attached to a clean, non-porous surface.

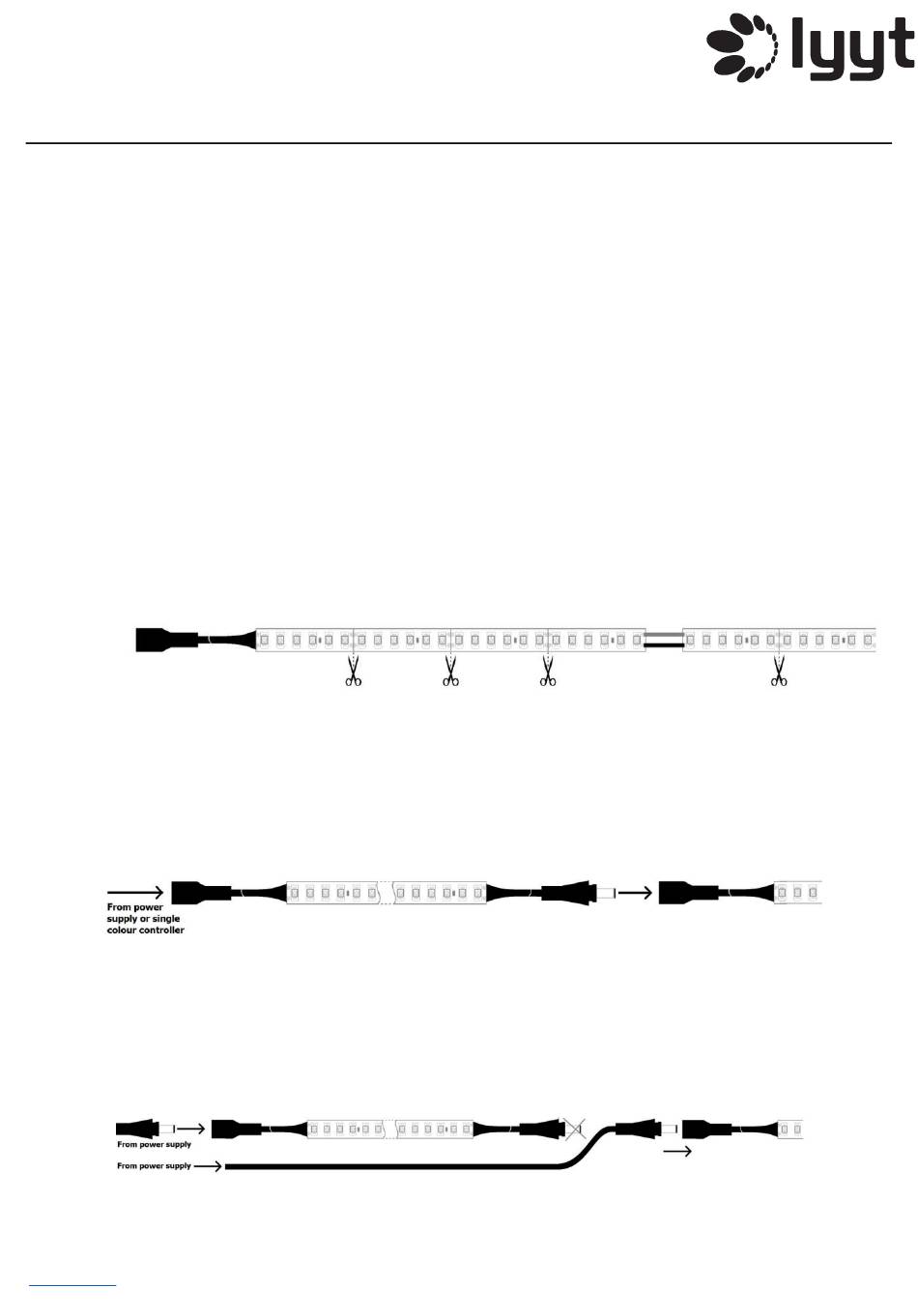

Where less than 5m of tape is needed, there are solder points as shown below, where the
tape may be cut to size. These cut points will be at 5cm intervals. To re-connect to another
length of tape after cutting, strip away the epoxy coating at the solder points and solder a
wire from "+" to "+" and a wire from "-" to "-" as shown below.
Some accessories are supplied with the tape reel for this purpose or alternatively, Lyyt
connection clips may also be used to join lengths of tape (156.135UK – 156.140UK). To retain
weatherproofing, it is advised to seal the cuts and joints with silicone glue.
Each 5m reel of single colour LED tape is fitted with a 2.1mm DC jack socket for power input
for easy connection to a power supply. This connector may be removed and stripped for bare
wire connection if a 2.1mm jack is not fitted to the power supply. If the power supply has
enough capacity to power more than one reel, another reel can be connected to the end of
the first reel via the 2.1mm DC jack plug.
For Lyyt high output LED tape, it is recommended to link no more than 10m of tape in
sequence. Using a separate wire to loop "+" and "-" back to the power supply will help to
avoid dimming at the far end through voltage drop. To connect beyond these lengths, a
parallel wire must be run from the power supply to the further reels of tape.
www.avsl.com lyyt High Output Manual
