Tecnet TP-5000 Series Programming Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

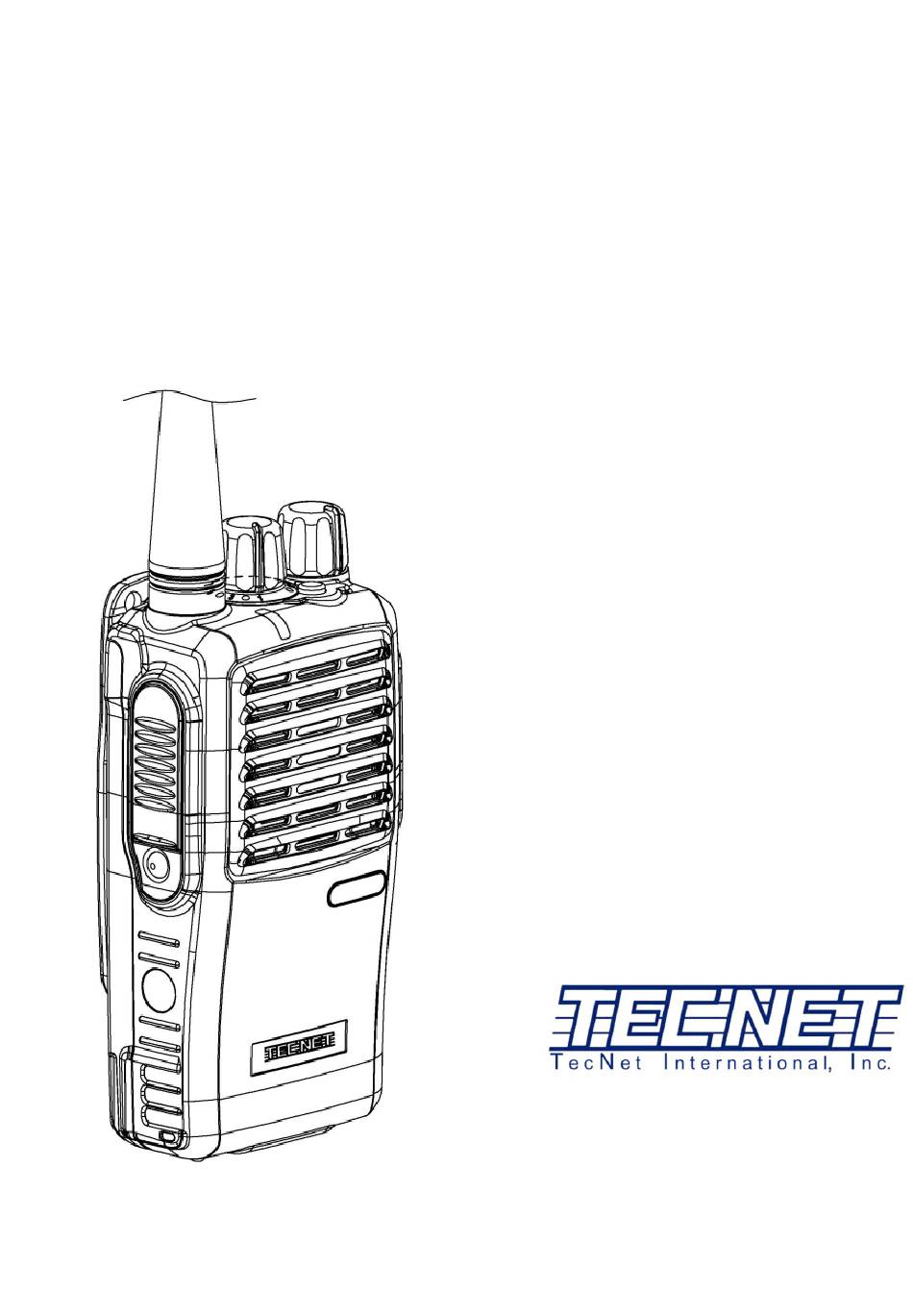

TP-5000 Series
Programming Manual
Version: REV20130912

Advertisement

loading
Need help?

Need help?

Do you have a question about the TP-5000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Tecnet TP-5000 Series

Summary of Contents for Tecnet TP-5000 Series

  • Page 1 TP-5000 Series Programming Manual Version: REV20130912...
  • Page 2 The programming software is subject to change without prior notice to improve its performance. This Programming Manual is the property of TecNet International Inc. and is protected by International Copyright Laws. Unauthorized copying and modifying, wholly or in part, is strictly prohibited.
  • Page 3 TP-5000 Series Programming Manual T e c N e t I n t e r n a t i o n a l I n c. NOTES: _____________________________________________________...
  • Page 4 TP-5000 Series Programming Manual T e c N e t I n t e r n a t i o n a l I n c. Required Equipment: ACC-505 or ACC-505N programming software, CP210x USB driver software (included on the ACC-505 and ACC-505N), and ACC-8050E programming cable.
  • Page 5 TP-5000 Series Programming Manual T e c N e t I n t e r n a t i o n a l I n c. This is done by either clicking on the button, pressing F4 on the keyboard or by selecting it from the drop down menu under Program (P).
  • Page 6 TP-5000 Series Programming Manual T e c N e t I n t e r n a t i o n a l I n c. does not indicate wide/narrow band. Tone: select the desired CTCSS, DCS or IDCS from the pull down menu.
  • Page 7 TP-5000 Series Programming Manual T e c N e t I n t e r n a t i o n a l I n c. 9. 5TONE… 5Tone ID Own ID: this is the radio’s specific identifier. 5 tones can be sent at the beginning or end of a transmission.
  • Page 8 TP-5000 Series Programming Manual T e c N e t I n t e r n a t i o n a l I n c. 10. 2Tone… Using the Tone Selection chart select the code type and first digit. Double-clicking the frequency in the chart will automatically fill in Tones A and Tones B on the right.
  • Page 9 TP-5000 Series Programming Manual T e c N e t I n t e r n a t i o n a l I n c. Pause Time: the length between each digit. Range: 50msec ~ 500msec Lead In Delay Time: the time from when PTT is pressed or released before the digits are sent.
  • Page 10 TP-5000 Series Programming Manual T e c N e t I n t e r n a t i o n a l I n c. 14. VOX. Voice Activated Transmit. Normally used for headset operation. Enable: check the box to enable VOX.
  • Page 11 TP-5000 Series Programming Manual T e c N e t I n t e r n a t i o n a l I n c. 18. Scan Priority Scan TX: checking the box will enable Priority Scan TX. A priority channel must be selected and be in the scan list.
  • Page 12 TP-5000 Series Programming Manual T e c N e t I n t e r n a t i o n a l I n c. 19. Emergency OPTION (Alarm). The radio will transmit an alarm sound when a programmable button is programmed for Emergency.
  • Page 13 TP-5000 Series Programming Manual T e c N e t I n t e r n a t i o n a l I n c. Start Sound: if checked, radio has a startup tone when turned on. Low Battery Alert: if checked, radio beeps when battery needs charging.
  • Page 14 Stun Delete: a password is required to un-stun a radio. Please contact Technical Support at TecNet if this occurs. We hope this guide will get you properly educated in programming the TP-5000 series of radios. If you have any questions, feel free to call us at 1-800-456-2071 or 913-859-9515.
