TP-8000 Series Portable Radio
PC Programming Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TP-8000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Tecnet TP-8000 Series

Summary of Contents for Tecnet TP-8000 Series

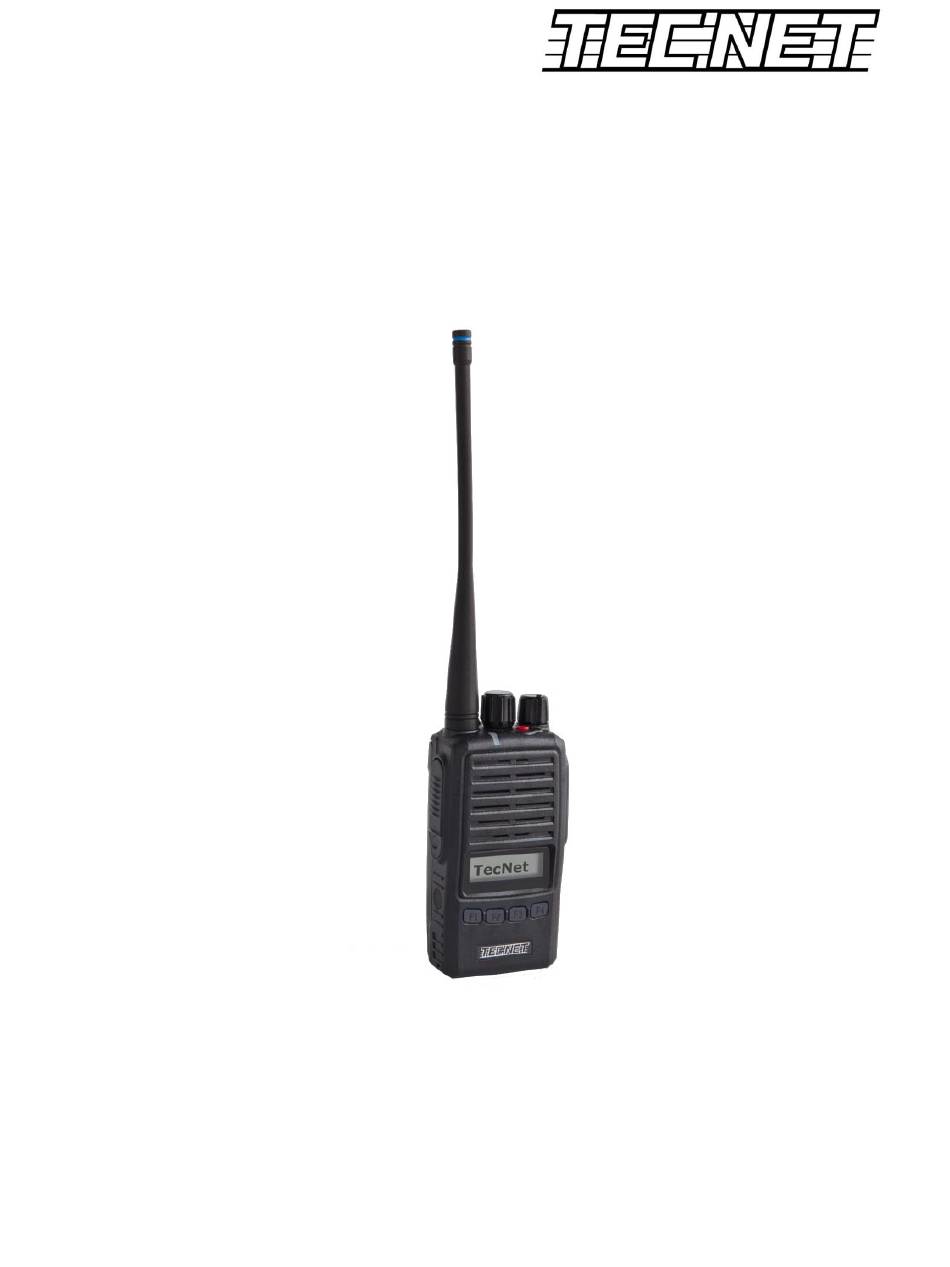

  • Page 1 TP-8000 Series Portable Radio PC Programming Manual...

  • Page 2: Table Of Contents

    TP-8000 Programming Manual TP-8000 SERIES PC PROGRAMMING MANUAL TABLE OF CONTENTS PROGRAM INSTALLATION LANGUAGE SELECTION WINDOW COMMUNICATION PORT SELECTION WINDOW SCREEN SIZE SELECTION WINDOW USER SELECTION WINDOW RADIO TYPE SELECTION WINDOW MAIN WINDOW (FREQUENCY INPUT WINDOW) INPUT SETUP WINDOW ID EDITOR/5-TONE...

  • Page 3: Program Installation

    TP-8000 Programming Manual Program Installation Install the CD and run the ACC-805 software. After running ACC-805_Program_Setup.exe, install with basic values on the screen. Caution: Do not change program installation route. Language Selection Window Select a language to use (after installing program, run one time). Communication Port Selection Window Select a port to use for data communication.

  • Page 4: Screen Size Selection Window

    TP-8000 Programming Manual Screen Size Selection Window Select Normal button (after installing program, run one time). Select Netbook button when using smaller size screen. User Selection Window Select Consumer button (after installing program, run one time).

  • Page 5: Radio Type Selection Window

    TP-8000 Programming Manual Radio Type Selection Window This screen is to select type of radio. After turning on a radio and connecting programming cable, you can select the type of radio. Main Window (Frequency Input Window) Selection for each header is as follows: Name –...
  • Page 6 TP-8000 Programming Manual Narrow/Wide, 2 Tone, Open CH, BCLO, Compander (COM.), Scrambler (SCR.), and S-Key – click on cell to display choices for that function. RX Frequency (RX FRQ) – enter RX frequency then hit enter; remaining RX settings of RX Narrow/Wide (RX Step), RX Tone, Scan, Shift will appear.
  • Page 7 TP-8000 Programming Manual 5 Tone: Shifts to setup window for 5 Tone & Stun / Revive ID configurations.  2-Tone: Shifts to setup window for 2 Tone configurations.  Config: Shifts to setup window for various on/off functions.  KeyAssign: Shifts to set up window for assignment functions of each button. ...

  • Page 8: Input Setup Window

    TP-8000 Programming Manual Input Setting Window 1.8.1 Input Initial Value When inputting TX and RX frequency, the default setup values are inputted automatically for Band, 2-tone, Open CH, BCLO, Compander, Scramble, Scan, Power, Channel Name, and Subtone (sub-audible). When there are values already inputted, they are not affected. Selecting “...
  • Page 9 TP-8000 Programming Manual 1.8.2 Grouping Setup This window is used to assign channels to a group. Total number of channels (aggregate of groups) cannot exceed 512 channels. After assigning channels, the “ Apply ” button should be pressed. 1.8.3 Priority Channel...
  • Page 10 TP-8000 Programming Manual This window is for setting up Priority Scan Channel in a specified Group. Only channels that are selected as scan channels in channel setup can be assigned as a priority scan channel. After assigning channels, “ Apply ” button should be pressed.
  • Page 11 TP-8000 Programming Manual 1.8.4 Serial Input Frequency This window is for inputting frequency continually by same frequency interval. Group Selection: This is to assign a group (1-32) to input frequency.  Start Channel: This is to assign a channel to first input frequency. ...

  • Page 12: Id Editor/5-Tone

    TP-8000 Programming Manual ID Editor/5 Tone This window is to format the 5Tone signaling option. Click on “ New “ to create a 5 Tone ID. A 5 Tone ID can be inputted by 200. Call Name can be inputted by English (10 letters) and Call ID is inputted by 3 to 6 characters.
  • Page 13 TP-8000 Programming Manual ID number (1~200) is assigned to Own ID (STUN ID). A station controls terminals. If a station transmits Stun ID by using 5tone (CCIR), the relevant terminal(s) loses all functions. If it transmits Revive ID, the relevant terminals are returned to normal functions. (Once a terminal is stunned, it is not normalized even if the power is on/off).

  • Page 14: Configuration Window

    TP-8000 Programming Manual 1-10 Configuration Window 1.10.1 Button Explanation Defaults: Changes all values to standard values.  Main Window: Returns to main screen.  1.10.2 DTMF DTMF ANI Enable check box: Check to enable transmit DTMF ID before and after starting ...
  • Page 15 TP-8000 Programming Manual Lead In Delay Time: The delay time from the time requesting DTMF ID generation to the time the  first signal happens. 1.10.3 PSC Controls setup of Power Save Control (PSC) to reduce battery current consumption. Enable Check box: Check to enable PSC. ...
  • Page 16 TP-8000 Programming Manual 1.10.7 PASSWORD Controls setup of radio Password. Enable check box: Check to enable Password function.  Password: Input Password number(s) to a maximum of 10 digits.  1.10.8 Ear Mic Controls setup of audio output of accessory. Enable check box: Check to enable Ear Mic setup.
  • Page 17 TP-8000 Programming Manual . Current scan: Radio transmits on the current scanned channel. RX Type Radio button: Assigns conditions for scan to cease during scanning  Carrier: If frequencies are same, scan stops. S-A Combination: If frequency and sub-audible tone are same, scan stops. Scan Dwell Time: When scan stop conditions disappear during scanning, scan dwell is the time ...
  • Page 18 TP-8000 Programming Manual setup channel. Send Channel: To select transmitting channel.  1.10.14 OPERATION FLAG Controls various operation setup related to radio features. Tx Inhibit : Check to inhibit transmission.  Beep: Check if audible sounds are desired for radio turn on and low battery indications. ...

  • Page 19: 2-Tone Setup Window

    TP-8000 Programming Manual 1-11 2-Tone Setup Window This window is to setup 2- Tone frequency and space time. 1.11.1 Button Explanation Save: Saves decoding data and writes to radio.  Main Window: Returns to main screen.  1.11.2 Tone Selection Frequencies From the Code Type pull down menu, select “...
  • Page 20 TP-8000 Programming Manual the same function under the Tone B column to input the frequency into the Tone B box. Space time: The time to distinguish between Tone A and Tone B.  Select Save and the following window will appear. Select Yes to write. ...

  • Page 21: Key Assignment Setup Window

    TP-8000 Programming Manual 1-12 Key Assignment Setup Window This window designates the function of each button on the radio. Please note that each button can perform a maximum of two different functions based on a short or long term press of that button.

  • Page 22: Gps Setup Window

    TP-8000 Programming Manual 1-13 GPS Setup Window – The radio must have GPS capability before programming can occur. 1.13.1 Enable Check enable box to initiate GPS. 1.13.2 SYNC Enable Defines time to transmit GPS information according to Time Slot NO (only for radio of transmission) selection from 0 –...
  • Page 23 TP-8000 Programming Manual 1.13.5 Volume Level This controls volume level at radio because volume switch has been replaced with GPA antenna. Use pull down menu to decide volume level. ☞ Volume Level is set for the radio that has the GPS device. 1.13.6 Appoint Time SYNC Enable Not-selected: GPS information is transmitted when time passes over setup value designated in Appoint Time.

  • Page 24: Gps Use Method

    TP-8000 Programming Manual 1-14 GPS Use Method The power switch of GPS Equipment is assigned to F4 button. Hold F4 over 2 seconds to turn on GPS functionality. To turn off, hold F4 over 2 seconds to turn off GPS functionality. Other radio operations are same when GPS functionality is turned off.
  • Page 25 TP-8000 Programming Manual  Explanation) If TimerSlot No is 0, when it is over Appoint Time, it transmits  If TimeSlot NO is 1, when it is over Appoint Time +2 seconds, it transmits  If TimeSlot NO is 2, when it is over Appoint Time +4 seconds, it transmits ...

  • Page 26: Default Value Comparision Window

    TP-8000 Programming Manual 1-17 Default Value Comparison Window This window is to compare the value of default file versus the values registered in the radio. 1.15.1 Button Explanation Read Radio: Reads and indicates related data which is saved in a radio. ...

  • Page 27: Radio Management Window

    TP-8000 Programming Manual 1-18 Radio Management Window Indicates Radio Management information; this window is not related to radio performance. 1.16.1 Button Explanation Read Records: Reads management information from a radio.  Main Window: Returns to main screen  1.16.2 Content Explanation Model Name: Indicates radio model name.

  • Page 28: Clone Frequency

    TP-8000 Programming Manual 1-19 Clone Frequency This window is frequency input window to use when cloning. (Frequency above are Default values) 1-20 Password Delete This process is to delete password saved in a radio.

  • Page 29: Stun Delete

    TP-8000 Programming Manual 1-21 Stun Delete This process is to revive the radio stunned. 1-22 Wireless Cloning Cloning refers to taking the programming information from one radio and copying it to one or more radios without the aid of a computer. Typically the radio sending the information is called the Master, while the radios receiving the data are the Slave radios.

  • Page 30: 1-21 Channel Switch Lock

    TP-8000 Programming Manual 1-23 1-21 Channel Switch Lock There may be times when someone wishes to lock the channel switch located on top of the radio. This does not disable the buttons on the front of the radio as a Key Lock would do. The procedure to lock is listed below: With the radio turned off, press and hold the F1 button located on the front of the radio.
