Digital Dual Axis Inclinometer
Analog Technologies
TS-3420-R02
We have been proudly serving you since 1997

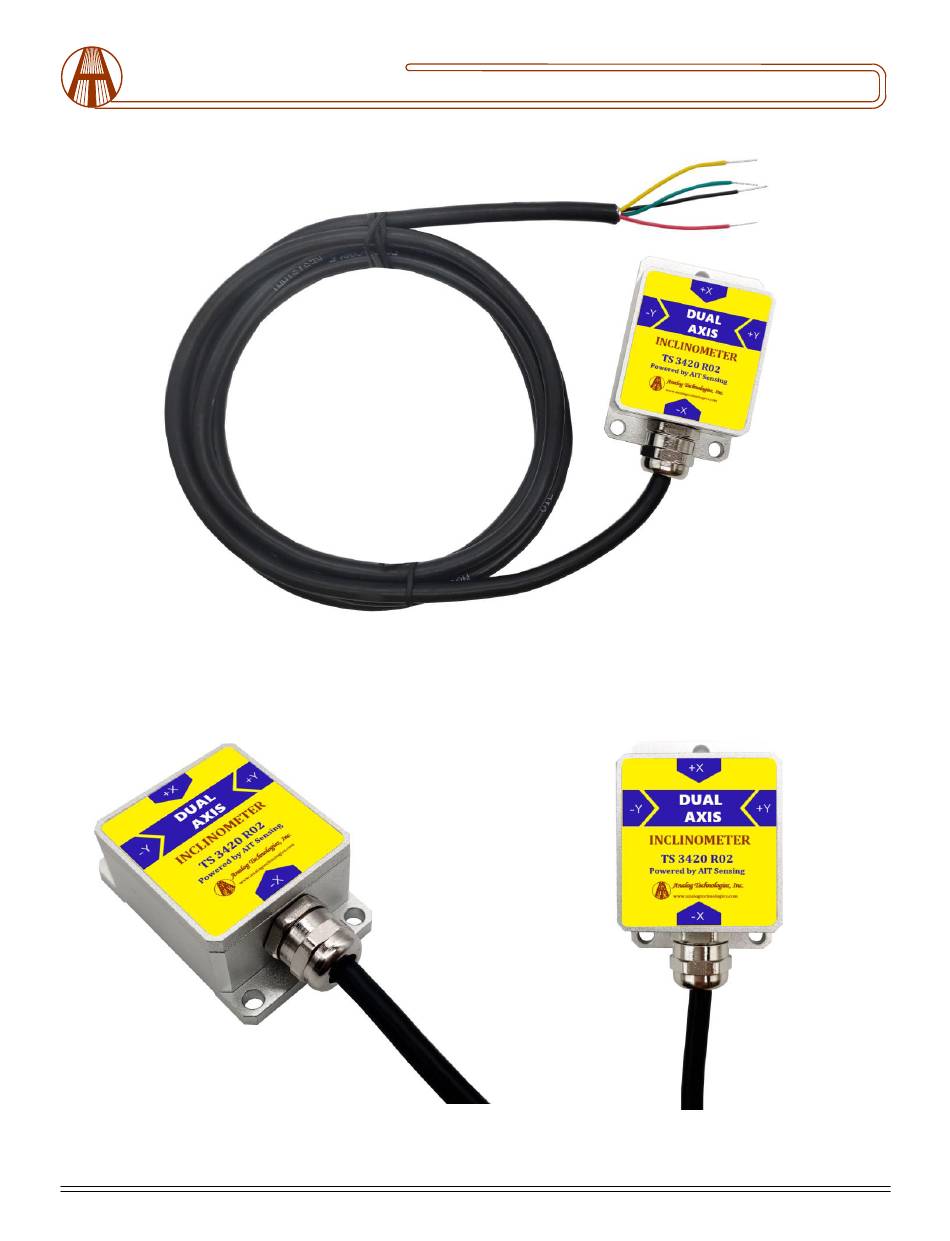

Figure 1.1. Top View of TS-3420-R02
Figure 1.2. Side View of TS-3420-R02
Figure 1.3. Top View of TS-3420-R02
www.analogtechnologies.com
Sales:
sales@analogti.com
Help Improve Datasheet:
datasheet@analogti.com
Tel.: (408) 748-9100
©Copyrights 2000-2025, Analog Technologies, Inc. All Rights Reserved. Updated on 3/3/2025 1161 Ringwood Ct, #110, San Jose, CA 95131, U. S. A. 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Analog Devices TS-3420-R02
Summary of Contents for Analog Devices TS-3420-R02
- Page 1 Digital Dual Axis Inclinometer Analog Technologies TS-3420-R02 We have been proudly serving you since 1997 Figure 1.1. Top View of TS-3420-R02 Figure 1.2. Side View of TS-3420-R02 Figure 1.3. Top View of TS-3420-R02 www.analogtechnologies.com Sales: sales@analogti.com Help Improve Datasheet: datasheet@analogti.com Tel.: (408) 748-9100...
-
Page 2: Specifications
Highest Accuracy: 0.1° temperature range extends from −40° C to + 85° C. ⚫ Measurement Range: ± 90° ⚫ Compact and lightweight, the TS-3420-R02 is well - Output: RS232/RS485/TTL for optional ⚫ suited for applications with space constraints. It IP67 Protection Level ⚫... - Page 3 Digital Dual Axis Inclinometer Analog Technologies TS-3420-R02 We have been proudly serving you since 1997 Parameter Test Conditions Min. Typ. Max. Unit/Note Accuracy (@RT) Measure Range ± 90 Resolution Completely still 0.01 Cross-Axis Error −40C ~ 85C Start-Up Time...
-
Page 4: Electrical Interface
Digital Dual Axis Inclinometer Analog Technologies TS-3420-R02 We have been proudly serving you since 1997 ELECTRICAL INTERFACE Table 2. Pin Number, Colors and Functions Color Functions VCC: DC 12V ~ 35V Blue Inclinometer Receive Black Ground Green Receive RXD Send... - Page 5 Digital Output Dual Axis Inclinometer Analog Technologies TS-3420-R02 We have been proudly serving you since 1997 DEBUGGING SOFTWARE You can download the serial debugging assistant directly on the official website (technical service -> download area), or you can use the more convenient and intuitive host computer software.
-
Page 6: Installation
Digital Output Dual Axis Inclinometer Analog Technologies TS-3420-R02 We have been proudly serving you since 1997 INSTALLATION The correct installation method can avoid measurement errors. When installing the sensor, please do the following: First of all, make sure that the sensor mounting surface is completely close to the measured surface, and the measured surface should be as level as possible. - Page 7 Digital Output Dual Axis Inclinometer Analog Technologies TS-3420-R02 We have been proudly serving you since 1997 DIMENSIONS Outline Dimensions Top View Side View Unit mm (inch) Figure 6. Outline Dimensions PCB Dimensions The length and width may have an error of ± 1mm, please refer to the actual product.
-
Page 8: Ordering Information
Digital Output Dual Axis Inclinometer Analog Technologies TS-3420-R02 We have been proudly serving you since 1997 Table 3. Mechanical Index Connector Metal joint（Cable 1.5m) Protection level IP67 Shell material Magnesium aluminum alloy oxidation Installation Three M4 screws ORDERING INFORMATION Part Number... - Page 9 Digital Output Dual Axis Inclinometer Analog Technologies TS-3420-R02 We have been proudly serving you since 1997 5. ATI reserves the right to make changes or discontinue products or services without notice. Customers are advised to obtain the latest information before placing orders.
