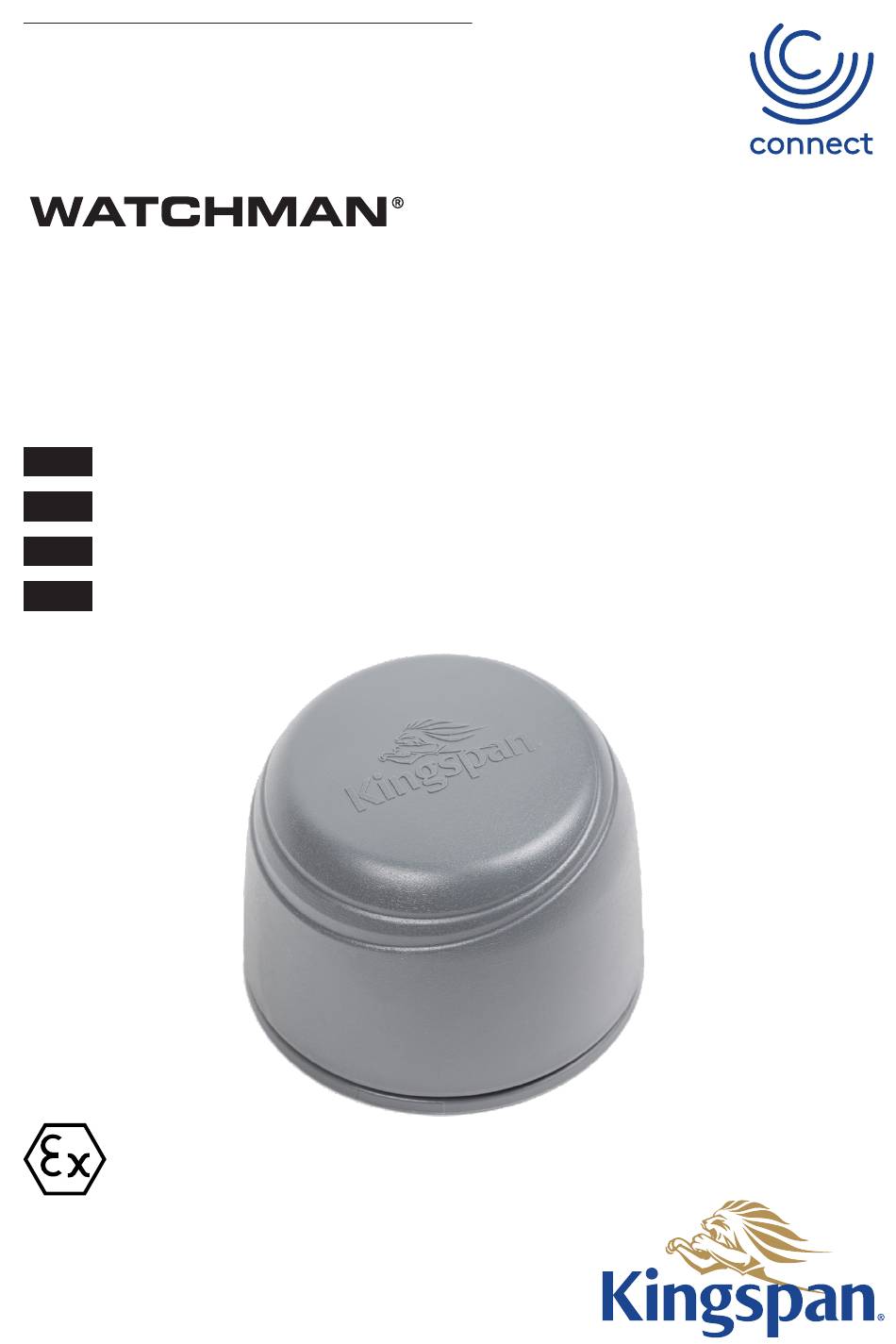

- Page 1 Energy Management Solutions Radar Installation Guide Installation Instructions Instructions d’installation Installationsanleitung Instrukcja instalacji kingspan.com...
- Page 2 WatchmanRadar Installation Instructions 1.1 Table of Contents WatchmanRadar level monitoring device for tanks up to 6m Dispositif radar de surveillance de niveau de remplissage pour cuves de 6 m maximum Radarbasierte Füllstandsüberwachung für Tanks bis 6 Meter H he Działające na zasadzie radaru urządzenie monitorujące do zbiornik w o wysokości do 6 m Warranty: Failure to follow the instruction or any modifications/...
- Page 3 WatchmanRadar Installation Instructions 1.1 This operating and safety manual contains important guidelines and warnings. Read this manual carefully and follow all the guidelines contained within. This manual is intended for information purposes only and should not be regarded as a source of law. Compliance with the instructions does not provide exemption from the requirement to comply with the Safety Data Sheet for the substance stored, local Health and Safety guidelines, as well as guidelines relating to fire prevention and environmental protection, and in particular the provisions of the ADR on...
-
Page 4: Installation And Registration
WatchmanRadar Installation Instructions 1.3 Read fully before This product is to be used only on tanks within the parameters outlined in the installation & use specifications. Any use of the product on applications that lie outside these specifications is done at the users own risk. Identify Measure Installation... - Page 5 WatchmanRadar Installation Instructions 1.3 Choose a suitable position for the transmitter The WatchmanRadar cannot sit at an angle as this gives an incorrect level reading. NB: For tanks with window corrugations or internal braces please ensure that the WatchmanRadar is not positioned above or within 10 cm of the area of the window or the edge of the tank.
-
Page 6: Safety Information
WatchmanRadar Installation Instructions 1.3 Safety Information Name: Tank level sensor WatchmanRadar NB IoT / Sigfox/Lora Type: WatchmanRadar NB IoT / Sigfox/Lora Versions: WatchmanRadar NB IoT – version with cellular network radio interface WatchmanRadar Sigfox/Lora – version with SRD radio interface Compliance: See EU declaration of Conformity ATEX marking: Tank level sensor WatchmanRadar is intended for use in potentially explosive atmospheres according... - Page 7 Installation of the device shall fulfill EN 60079-14 standard requirements Installation, use, maintenance, adjustment Installation procedure is given in the part “Watchman Radar Installation Instruction”. The device does not need additional physical activities for proper use. Maintenance is not required, there are no parts requiring access inside of the enclosure, opening it is forbidden.
- Page 8 Kingspan Water & Energy Ltd. 180 Gilford Road, Portadown, Co. Armagh, Northern Ireland BT63 5LF. T: +44 (0) 28 3836 4415 E: sensor@kingspan.com kingspan.com 5 013 573 87 621 2 4377_en_v1...
