Version 1.7
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Footsie1 and is the answer not in the manual?

Questions and answers

Related Manuals for Robe Footsie1

Summary of Contents for Robe Footsie1

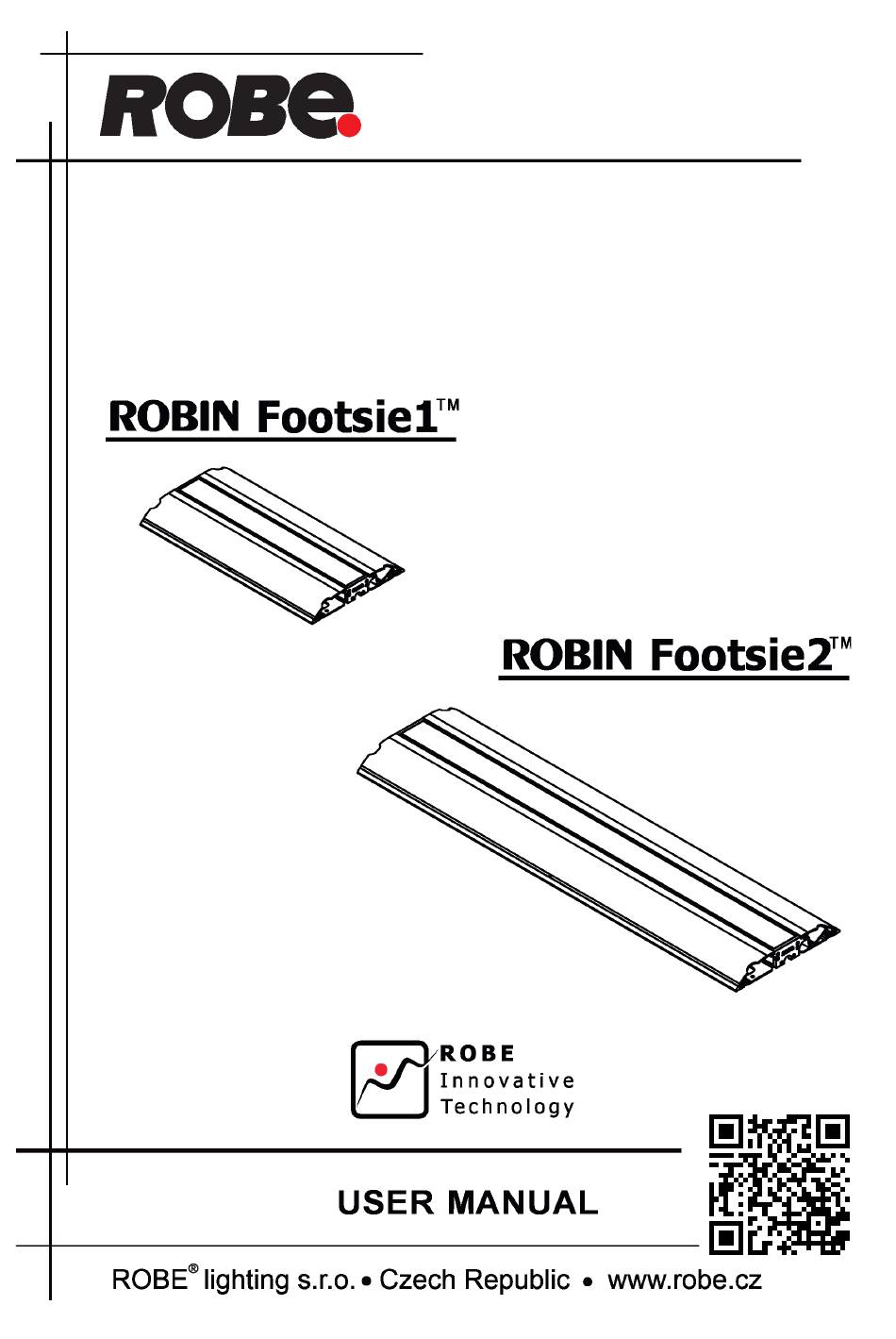

  • Page 1 QR code for user manual Version 1.7...

  • Page 2: Table Of Contents

    Robin Footsie1 Robin Footsie2 Table of contents 1. Safety instructions ......................3 2. Operating determination ....................4 3. Fixture exterior view ...................... 6 4. Installation........................8 4.1 Connection to the mains .................... 8 4.2 Connecting Footsies ....................9 4.3 Diffusion filter installation ..................11 4.4 Footsie permanent installation...................12...

  • Page 3: Safety Instructions

    FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOU INITIAL START - UP This device has left our premises in absolutely perfect condition. In order to maintain this condition and to en- sure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warnings in this manual.

  • Page 4: Operating Determination

    Handle the fixture only in a folded state without diffuser (11) by means of handles (5) or by bottom side of the base (12). Never handle the fixture holding it by the display cover (3), rear cover (2), diffusion filter cover (10) or diffusion filter (11)! Never handle the fixture in unfolded state! Danger of injury of your fingers at incorrect handling with the fixture.
  • Page 5 Please use only an original ROBE packaging (paper box, loader case or foam shell) for transporting the device, otherwise potential damage of the device during its transport will not subject to warranty. The fixture must not come into contact with sea water (salt water).

  • Page 6: Fixture Exterior View

    3. Fixture exterior view Top view - covers in closed position 1. Glass cover 2. Rear cover 3. Display cover 4. Connecting pin Bottom view - covers in closed position 5. Handles Top view - covers in open position 1. Glass cover 6.
  • Page 7 Zone and PIP* positions PIP*= Performer Indication Point – separately controlled RGB LEDs at 10 cm spacing provide performers with alignment points. Footsie1 Footsie2...

  • Page 8: Installation

    4. Installation Fixtures must be installed by a qualified electrician in accordance with all national and local electrical and construction codes and regulations. The Footsie´s power connectors and DMX connectors are dust and water protected according to IP 65 by mating with related cable connectors. They cannot stay disconnected outdoor.

  • Page 9: Connecting Footsies

    Design of the Footsie allows you to connect several fixtures to AC mains power in one interconnected daisy chain using power input and throughput connectors. The max. number of connected fixtures depends on the AC mains power voltage: Footsie1 60 fixtures at power supply= 230V 44 fixtures at power supply= 230V...
  • Page 10 The line of connected Footsies can be bended by means of angled corners 15°, 30°, 60° and 90°. The locking mechanism creates connecting pin and connecting aperture on sides of angled corners. Angled corner End cape has connecting pin (4) installed. If you need aperture for connecting the end cape to the Footsie, remove the connecting pin (4) by unscrewing two screws (X).

  • Page 11: Diffusion Filter Installation

    4.3 Diffusion filter installation 1. Disconnect Footsie from mains. 2. Open all covers (2), (3) and (10). 3. Place the diffusion filter (11) on the Footsie. 4. Close the diffusion filter support cover (10). 5. Close the covers (2) and (3).

  • Page 12: Footsie Permanent Installation

    4.4 Footsie permanent installation To prevent from danger of accident ,the device has to be fixed on a flat, non-flammable surface in compliance with the installing instruction included in this manual. Before fastening the Footsie to the surface, unscrew all feet (1) from the bottom side of the Footsie. The four holes (2) in the base of the Footsie are intended for fastening the Footsie to the flat surface.

  • Page 13: Dmx Operation

    5. DMX operation The fixture is equipped with 5-pin XLR connectors for DMX input and output. Use a shielded twisted-pair cable designed for RS-485 and 5-pin XLR connectors in order to connect the con- troller with the fixture. To keep declared IP rating the fixture, all used XLR connectors and cables have to meet IP 65 rating. DMX output DMX input XLR socket (female)

  • Page 14: Control Menu Map

    6. Control menu map Default settings=Bold print Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Level 7 DMXA Set DMXA 001-512 Info Times PO Time Total Reset LOTi R LOT. G LOT. B LOT. W LOT. DMX Val Powr 0-255...
  • Page 15 Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Level 7 Dimmer C Square, Linear LED Freq 1200 2400 High LED Fadj -126,-05..00..05, 126 Temp Uni °C, °F I Ef Pos Powr 0-255 Dim F 0-255 Store Res WPas No, Yes Defaults...

  • Page 16: Control Menu

    7. Control menu The Robin Footsie is equipped with a 2-row LCD display which allows you to set the fixture´s behaviour ac- cording to your needs, obtain information on its operation, control all range of effects and program it in stand-alone mode. The fixture supports NFC (Near-Field Communication).

  • Page 17: Dmxa (Addressing)

    7.1 DMXA (Addressing) Set DMXA (DMX Address) - use this menu item to set the DMX start address of the fixture, which is defined as the first channel from which the ROBIN Footsie will respond to the controller. If you set, for example, the address 23, the ROBIN Footsie2 WW will use channels 23 - 35for control. Please, be sure that you do not have any overlapping channels in order to control each ROBIN Footsie correctly and independently from any other fixture on the DMX data link.

  • Page 18: Pers (Personality)

    LED 3 Tmp (LEDs PCB 3 Temperature*) - the menu shows temperatures on the LEDs PCB 3. Current - a current temperature of the LEDs PCB 3. Highest - a maximum temperature of the LEDs PCB 3 since the fixture has been fabricated. High Res (High Resettable) - a maximum temperature of the LEDs PCB 3 since the counter was last reset.

  • Page 19: Manual (Manual Control)

    LED Fadj (LEDs frequency fine adjustment) - The function allows you to change the selected PWM output frequency of LEDs in 126 levels up and down around the selected frequency in the menu “LED Freq”. -126...-001 - Frequence levels 1-126 under selected frequency. 000 - Selected frequency 001...126 - Frequence levels 1-126 above selected frequency.

  • Page 20: Reset

    Green F a green colour fine Blue a blue colour coarse Blue F a blue colour fine White a white colour White F a white colour fine Warm a warm white colour* Warm F a warm white colour fine* Cool a cool white colour* Cool F a cool white colour fine*...
  • Page 21 If you use the Robe Universal Interface, connect a USB port of your computer with the Robe Universal Interface by means of the USB cable and DMX input of the fixture with the DMX output of the Robe Universal Interface via a DMX cable.

  • Page 22: Rdm

    Uploader. It is a software for automatized software update of Robe fixtures. It takes advantage of RDM support). For more information please see https://www.robe.cz/robe-uploader/. 8. RDM This fixture supports RDM operation. RDM (Remote Device Management) is a bi-directional communications protocol for use in DMX512 control systems, it is the new open standard for DMX512 device configuration and status monitoring.

  • Page 23: Nfc

    The NFC point is situated on the front panel of the fixture. Download and install the ROBE COM from Google Play (for Android 5.0 and higher) or App Store (for iOS 12.0 and higher) to your mobile phone. Your mobile phone has to support NFC (Near-Field Communication).

  • Page 24: Error And Information Messages

    10. Error and information messages Red Shrt The message informs you that short circuit has occurred in the red LEDs circuit on the LEDs PCB. Green Shrt The message informs you that short circuit has occurred in the green LEDs circuit on the LEDs PCB. Blue Shrt The message informs you that short circuit has occurred in the blue LEDs circuit on the LEDs PCB.

  • Page 25: Technical Specifications

    Footsie1: 45W max. (power factor 0.96) Footsie2: 85W:max. (power factor 0.96) Optic Light source: Footsie1: 24 x RGBW or WW or TW LED single chips Footsie2: 48 x RGBW or WW or TW LED single chips CRI: WW version: 90+...

  • Page 26: Minimum Distances

    Total heat dissipation Footsie1: 115 BTU/hr (calculated) Footsie2: 218 BTU/hr (calculated) Ingress protection IP65 IK Rating IK06 (without diffuser) Weight Footsie1: 9.4 kg (20.7 lbs), 10.6 (23.4 lbs) with diffuser Footsie2: 17.1 kg (37.7 lbs), 19.7 kg (43.4 lbs) with diffuser...

  • Page 27: Dimensions (Mm)

    Dimensions (mm) Footsie1 Footsie2...
  • Page 28 Angled corner 90° Footsie1/Footsie 2 End cape Footsie1/Footsie 2...

  • Page 29: Optional Accessories

    Permanent installation added 04/12/2024 Current calibration added December 4, 2024 Copyright © 2023-2024 Robe Lighting - All rights reserved All Specifications subject to change without notice Made in CZECH REPUBLIC by ROBE LIGHTING s.r.o. Palackeho 416/20 CZ 75701 Valasske Mezirici...
  • Page 30 DMX protocol Robin Footsie1 /Robin Footsie1 Slim - DMX protocol Version: 1.4 Mode 1-Simple mode, Mode 2 -Standard 16-bit, Mode 3-Standard 16-bit & PIP* ( PIP™ - Performer Indication Point – separately controlled RGB LEDs at 10 cm spacing provide performers with alignment points)
  • Page 31 DMX protocol Mode/Total channels Type of Function 2/28 3/35 Value control 10-14 600 Hz (10=default) step 15-19 1200 Hz step 20-24 2400 Hz step 25-29 High step Reserved 30-255 (fixture utilizes PWM frequency set in the display menu item Frequency Setup). LED frequency fine adjusting Factory display menu setting: 600Hz Select desired PWM output frequency of LEDs on the channel above.
  • Page 32 DMX protocol Mode/Total channels Type of Function 2/28 3/35 Value control Filter 117 (Steel Blue) 41-42 step 43-44 Filter 118 (Light Blue) step 45-46 Filter 122 (Fern Green) step 47-48 Filter 182 (Light Red) step Filter 121 (Filter Green) 49-50 step Filter 128 (Bright Pink) 51-52...
  • Page 33 DMX protocol Mode/Total channels Type of Function 2/28 3/35 Value control 246-255 Rainbow effect (without fade time) from slow-> fast proportional Red/Cyan (8 bit)* - all zones 0 - 255 Colour saturation control coarse 0-100% (255=default) proportional Red/Cyan (16bit)* - all zones 0 - 255 Colour saturation control fine (255=default) proportional...
  • Page 34 DMX protocol Mode/Total channels Type of Function 2/28 3/35 Value control Crossfade "Colour mix" only step Colour Mix control zones The channel defines relation between Virtual colour wheel + Colour channels and zones "Global" = Global Colours (RGBW/CMY colours, Virtual Colour Wheel, CTO) "Pixel"...
  • Page 35 DMX protocol Mode/Total channels Type of Function 2/28 3/35 Value control 0-255 Blue LEDs saturation control 0-100% (0=default) proportional White zone 2 0-255 White LEDs saturation control 0-100% (0=default) proportional PIP 1 - Virtual colour 0-14 No function (0=default) step Blue (Blue=full, Red+Green=0) step 16-54...
  • Page 36 DMX protocol Mode/Total channels Type of Function 2/28 3/35 Value control PIP 4 - Virtual colour 0-14 No function (0=default) step Blue (Blue=full, Red+Green=0) step 16-54 Red=0, Green->up, Blue =full proportional Light Blue (Red=0, Green=full, Blue =full) step 56 - 94 Red=0, Green=full, Blue->down proportional Green (Red=0, Green=full, Blue =0)
  • Page 37 Type of Function 2/28 3/35 Value control PIP LEDs pulsing from slow to fast 129 - 150 proportional Reserved 151 - 255 Copyright © 2023-2024 Robe Lighting s.r.o. - All rights reserved All Specifications subject to change without notice Page 8...
  • Page 38 DMX protocol Robin Footsie1 /Robin Footsie1 Slim Tunable White - DMX protocol Version: 1.3 Mode 1-Simple mode, Mode 2 -Standard 16-bit, Mode 3-Standard 16-bit & PIP* ( PIP™ - Performer Indication Point – separately controlled RGB LEDs at 10 cm spacing provide performers with alignment points)
  • Page 39 DMX protocol Mode/Total channels Type of Function 2/16 3/23 Value control LED Frequency (step -3) step LED Frequency (step -2) step LED Frequency (step -1) step Selected LED Frequency (128=default) step LED Frequency (step +1) step LED Frequency (step +2) step LED Frequency (step +3) step...
  • Page 40 DMX protocol Mode/Total channels Type of Function 2/16 3/23 Value control 0 - 255 Fine dimming (0=default) proportional Warm white zone 1 0-255 LEDs saturation control 0-100% (0=default) proportional Cool white zone 1 0-255 LEDs saturation control 0-100% (0=default) proportional Warm white zone 2 0-255 LEDs saturation control 0-100% (0=default)
  • Page 41 DMX protocol Mode/Total channels Type of Function 2/16 3/23 Value control 136 - 174 Red=full, Green->down, Blue=0 proportional Red(Red=full, Green=0, Blue=0 ) step 176 -214 Red=full, Green=0, Blue->up proportional Magenta (Red=full, Green=0, Blue=full ) step 216 - 254 Red -> down, Green=0, Blue=full proportional Blue (Red=0, Green=0, Blue=full) step...
  • Page 42 PIP LEDs intensity 0-100% (128=default) 0 - 128 proportional PIP LEDs pulsing from slow to fast 129 - 150 proportional Reserved 151 - 255 Copyright © 2023-2024 Robe Lighting s.r.o. - All rights reserved All Specifications subject to change without notice Page 5...
  • Page 43 DMX protocol Robin Footsie1 /Robin Footsie1 Slim Warm White - DMX protocol Version: 1.4 Mode 1-Simple mode, Mode 2 -Standard 16-bit, Mode 3-Standard 16-bit & PIP* ( PIP™ - Performer Indication Point – separately controlled RGB LEDs at 10 cm spacing provide performers with alignment points)
  • Page 44 DMX protocol Mode/Total channels Type of Function 2/11 3/18 Value control LED Frequency (step -3) step LED Frequency (step -2) step LED Frequency (step -1) step Selected LED Frequency (128=default) step LED Frequency (step +1) step LED Frequency (step +2) step LED Frequency (step +3) step...
  • Page 45 DMX protocol Mode/Total channels Type of Function 2/11 3/18 Value control Red(Red=full, Green=0, Blue=0 ) step 176 -214 Red=full, Green=0, Blue->up proportional Magenta (Red=full, Green=0, Blue=full ) step 216 - 254 Red -> down, Green=0, Blue=full proportional Blue (Red=0, Green=0, Blue=full) step PIP 2 - Virtual colour 0-14...
  • Page 46 PIP LEDs intensity 0-100% (128=default) 0 - 128 proportional PIP LEDs pulsing from slow to fast 129 - 150 proportional Reserved 151 - 255 Copyright © 2023 Robe Lighting s.r.o. - All rights reserved All Specifications subject to change without notice Page 4...
  • Page 47 DMX protocol Robin Footsie2 /Robin Footsie2 Slim RGBW - DMX protocol Version: 1.4 Mode 1-Simple mode, Mode 2 -Standard 16-bit, Mode 3-Standard 16-bit & PIP* ( PIP™ - Performer Indication Point – separately controlled RGB LEDs at 10 cm spacing provide performers with alignment points) Mode/Total channels Type of Function...
  • Page 48 DMX protocol Mode/Total channels Type of Function 2/36 3/49 Value control 15-19 1200 Hz step 20-24 2400 Hz step 25-29 High step 30-255 Reserved (fixture utilizes PWM frequency set in the display menu item Frequency Setup). LED frequency fine adjusting Factory display menu setting: 600Hz Select desired PWM output frequency of LEDs on the channel above.
  • Page 49 DMX protocol Mode/Total channels Type of Function 2/36 3/49 Value control Filter 118 (Light Blue) 43-44 step 45-46 Filter 122 (Fern Green) step 47-48 Filter 182 (Light Red) step 49-50 Filter 121 (Filter Green) step Filter 128 (Bright Pink) 51-52 step Filter 131 (Marine Blue) 53-54...
  • Page 50 DMX protocol Mode/Total channels Type of Function 2/36 3/49 Value control Red/Cyan (8 bit)* - all zones 0 - 255 Colour saturation control coarse 0-100% (255=default) proportional Red/Cyan (16bit)* - all zones 0 - 255 Colour saturation control fine (255=default) proportional Green/Magenta (8 bit)* - all zones 0 - 255...
  • Page 51 DMX protocol Mode/Total channels Type of Function 2/36 3/49 Value control Colour Mix control zones The channel defines relation between Virtual colour wheel + Colour channels and zones "Global" = Global Colours (RGBW/CMY colours, Virtual Colour Wheel, CTO) "Pixel" = Zone Colours (RGBW individual zones) Global colours (Global has priority) step 10-19...
  • Page 52 DMX protocol Mode/Total channels Type of Function 2/36 3/49 Value control White zone 2 0-255 White LEDs saturation control 0-100% (0=default) proportional Red zone 3 0-255 Red LEDs saturation control 0-100% (0=default) proportional Green zone 3 0-255 Green LEDs saturation control 0-100% (0=default) proportional Blue zone 3 0-255...
  • Page 53 DMX protocol Mode/Total channels Type of Function 2/36 3/49 Value control PIP 3 - Virtual colour 0-14 No function (0=default) step Blue (Blue=full, Red+Green=0) step 16-54 Red=0, Green->up, Blue =full proportional Light Blue (Red=0, Green=full, Blue =full) step 56 - 94 Red=0, Green=full, Blue->down proportional Green (Red=0, Green=full, Blue =0)
  • Page 54 DMX protocol Mode/Total channels Type of Function 2/36 3/49 Value control 16-54 Red=0, Green->up, Blue =full proportional Light Blue (Red=0, Green=full, Blue =full) step 56 - 94 Red=0, Green=full, Blue->down proportional Green (Red=0, Green=full, Blue =0) step 96 – 134 Red->up, Green=full, Blue=0 proportional Yellow (Red=full, Green=full, Blue=0) step...
  • Page 55 DMX protocol Mode/Total channels Type of Function 2/36 3/49 Value control Green (Red=0, Green=full, Blue =0) step 96 – 134 Red->up, Green=full, Blue=0 proportional Yellow (Red=full, Green=full, Blue=0) step 136 - 174 Red=full, Green->down, Blue=0 proportional Red(Red=full, Green=0, Blue=0 ) step 176 -214 Red=full, Green=0, Blue->up proportional...
  • Page 56 PIP LEDs intensity 0-100% (128=default) 0 - 128 proportional PIP LEDs pulsing from slow to fast 129 - 150 proportional Reserved 151 - 255 Copyright © 2023-2024 Robe Lighting s.r.o. - All rights reserved All Specifications subject to change without notice Page 10...
  • Page 57 DMX protocol Robin Footsie2 /Robin Footsie2 Slim Tunable White - DMX protocol Version: 1.3 Mode 1-Simple mode, Mode 2 -Standard 16-bit, Mode 3-Standard 16-bit & PIP* ( PIP™ - Performer Indication Point – separately controlled RGB LEDs at 10 cm spacing provide performers with alignment points) Mode/Total channels Type of Function...
  • Page 58 DMX protocol Mode/Total channels Type of Function 2/20 3/33 Value control LED Frequency (step -3) step LED Frequency (step -2) step LED Frequency (step -1) step Selected LED Frequency (128=default) step LED Frequency (step +1) step LED Frequency (step +2) step LED Frequency (step +3) step...
  • Page 59 DMX protocol Mode/Total channels Type of Function 2/20 3/33 Value control 0 - 255 Fine dimming (0=default) proportional Warm white zone 1 0-255 LEDs saturation control 0-100% (0=default) proportional Cool white zone 1 0-255 LEDs saturation control 0-100% (0=default) proportional Warm white zone 2 0-255 LEDs saturation control 0-100% (0=default)
  • Page 60 DMX protocol Mode/Total channels Type of Function 2/20 3/33 Value control 0-14 No function (0=default) step Blue (Blue=full, Red+Green=0) step 16-54 Red=0, Green->up, Blue =full proportional Light Blue (Red=0, Green=full, Blue =full) step 56 - 94 Red=0, Green=full, Blue->down proportional Green (Red=0, Green=full, Blue =0) step 96 –...
  • Page 61 DMX protocol Mode/Total channels Type of Function 2/20 3/33 Value control Light Blue (Red=0, Green=full, Blue =full) step 56 - 94 Red=0, Green=full, Blue->down proportional Green (Red=0, Green=full, Blue =0) step 96 – 134 Red->up, Green=full, Blue=0 proportional Yellow (Red=full, Green=full, Blue=0) step 136 - 174 Red=full, Green->down, Blue=0 proportional...
  • Page 62 DMX protocol Mode/Total channels Type of Function 2/20 3/33 Value control 96 – 134 Red->up, Green=full, Blue=0 proportional Yellow (Red=full, Green=full, Blue=0) step 136 - 174 Red=full, Green->down, Blue=0 proportional Red(Red=full, Green=0, Blue=0 ) step 176 -214 Red=full, Green=0, Blue->up proportional Magenta (Red=full, Green=0, Blue=full ) step...
  • Page 63 PIP LEDs intensity 0-100% (128=default) 0 - 128 proportional PIP LEDs pulsing from slow to fast 129 - 150 proportional Reserved 151 - 255 Copyright © 2023-2024 Robe Lighting s.r.o. - All rights reserved All Specifications subject to change without notice Page 7...
  • Page 64 DMX protocol Robin Footsie2 /Robin Footsie2 Slim Warm White - DMX protocol Version: 1.4 Mode 1-Simple mode, Mode 2 -Standard 16-bit, Mode 3-Standard 16-bit & PIP* ( PIP™ - Performer Indication Point – separately controlled RGB LEDs at 10 cm spacing provide performers with alignment points) Mode/Total channels Type of Function...
  • Page 65 DMX protocol Mode/Total channels Type of Function 2/13 3/26 Value control LED Frequency (step -3) step LED Frequency (step -2) step LED Frequency (step -1) step Selected LED Frequency (128=default) step LED Frequency (step +1) step LED Frequency (step +2) step LED Frequency (step +3) step...
  • Page 66 DMX protocol Mode/Total channels Type of Function 2/13 3/26 Value control Green (Red=0, Green=full, Blue =0) step 96 – 134 Red->up, Green=full, Blue=0 proportional Yellow (Red=full, Green=full, Blue=0) step 136 - 174 Red=full, Green->down, Blue=0 proportional Red(Red=full, Green=0, Blue=0 ) step 176 -214 Red=full, Green=0, Blue->up proportional...
  • Page 67 DMX protocol Mode/Total channels Type of Function 2/13 3/26 Value control 136 - 174 Red=full, Green->down, Blue=0 proportional Red(Red=full, Green=0, Blue=0 ) step 176 -214 Red=full, Green=0, Blue->up proportional Magenta (Red=full, Green=0, Blue=full ) step 216 - 254 Red -> down, Green=0, Blue=full proportional Blue (Red=0, Green=0, Blue=full) step...
  • Page 68 DMX protocol Mode/Total channels Type of Function 2/13 3/26 Value control Magenta (Red=full, Green=0, Blue=full ) step 216 - 254 Red -> down, Green=0, Blue=full proportional Blue (Red=0, Green=0, Blue=full) step PIP 8 - Virtual colour 0-14 No function (0=default) step Blue (Blue=full, Red+Green=0) step...
  • Page 69 PIP LEDs intensity 0-100% (128=default) 0 - 128 proportional PIP LEDs pulsing from slow to fast 129 - 150 proportional Reserved 151 - 255 Copyright © 2023-2024 Robe Lighting s.r.o. - All rights reserved All Specifications subject to change without notice Page 6...
