Geoforce AT5 Mounting Manual

AT5 Mounting Guide
Step 1: Selecting a Mounting Location
To ensure ideal performance and to maximize service life:
a. Select a horizontal mounting position (lying flat, facing skyward) that provides the
best view of the sky.
b. Select a mounting location that is clean and isolates the AT5 from damage.
c. The AT5 can also be mounted on a flat vertical surface, but this may reduce the
communication reliability, GPS location accuracy, and decrease the maximum
sustainable messaging rate. If the device must be mounted vertically facing the
horizon, mount the device with the connector cap pointed towards the ground.
d. Thoroughly clean the mounting area, especially for VHB tape installs.
e. Recommended mounting area size is 5.0" L x 3.0" W (127mm L x 76mm W).
f. DO NOT PAINT OR COVER THE AT5, otherwise product performance and service
life will be impacted.
g. DO NOT PRESSURE WASH THE AT5 device or endcap connection.
Step 2: Prepare Device for Installation
The AT5 consists of the following parts:
a. Qty 1 AT5 Tracking Device
b. Qty 1 VHB Tape pad (Optionally Used)
Tools Required:
a. Phillips Screwdriver (Size P0 or P1)
b. Small tipped non-conductive tool
1. Remove the AT5 Endcap with a P0 or P1 size
Phillips Screwdriver.

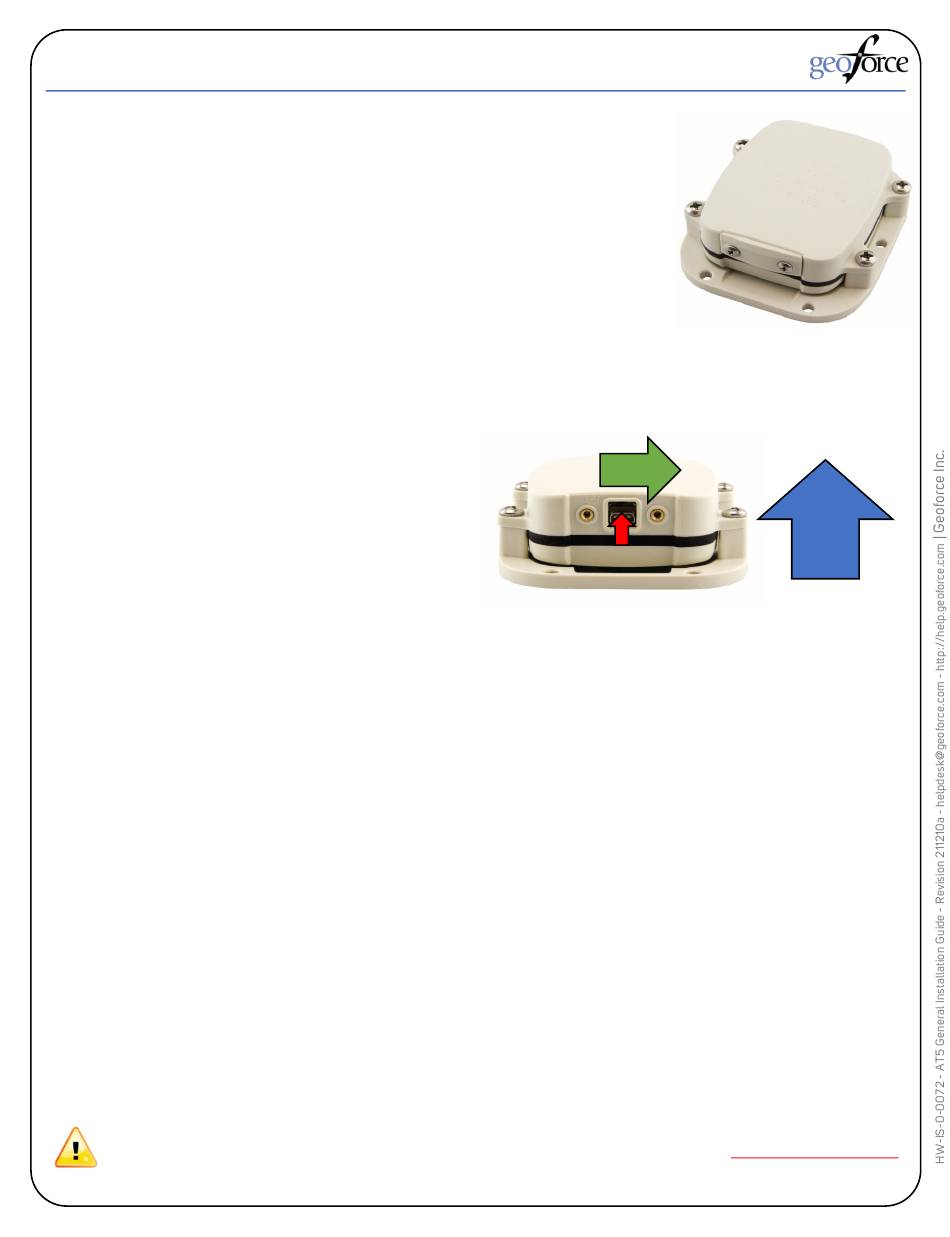

2. IMPORTANT: Set the AT5 ON/OFF switch to
ON. The AT5 will NOT operate in the OFF
position. Use
nonconductive tip to toggle the switch. Avoid
hitting any circuit components or electrical
contacts.
3. Reinstall the AT5 Endcap. Ensure screws are
secure to prevent future water ingress.
Step 3: Select a Mounting Method
VHB Adhesive Tape
The AT5 may be mounted using the supplied VHB double
sided adhesive tape (with or without the mounting
bracket). Consult the Geoforce VHB Installation and
Removal Guide for proper cleaning and use of VHB tape
when mounting the device.
Step 4: Record the Asset and AT5 Serial Numbers
a. Record the AT5 serial number.
b. Record the asset name and serial number.
c. Enter the asset information into the Geoforce Track and Trace software application and assign the AT5 serial number.
Contact your Geoforce account service representative if you require assistance.
WARNING: IF YOU DO NOT TURN THE DEVICE TO "ON" THE AT5 WILL NOT WORK.
a tool with a small
© Geoforce Inc., All Rights Reserved – ERT Kit SKU: AT5-GSAT
ON
ON/OFF
4. The AT5 should be shipped installed on its
plastic mounting bracket. If not, secure the
AT5 to the mounting bracket with the supplied
screws. Do not over-tighten the mounting
screws (max. 10 in.lb) or damage to the
mounting ear or AT5 body may occur.
5. Ensure the molded in label indicating "
SIDE TOWARDS SKY DO NOT PAINT" is
skyward facing.
Self-Tapping Screws
For installations requiring metal fasteners, select the
appropriate #6-32 self-tapping or machine screws to
secure the AT5 plate to the AT5 device. Do not over-tighten
the mounting screws (max. 10 in.lb) or damage to the
mounting ear or AT5 body may occur.
UP
THIS
