Vimar 03986 Quick Start Manual

VIEW WIRELESS SMART HOME
03986 - Actuator 0/1-10VDC + IoT connected relay
The connected multi-function actuator is a DIN rail device (60715 TH35) equipped with a 10 AX
relay output and a proportional analogue 0/1-10 V output which can be configured as a dimmer
or as a variable generic load.
To control the actuator from other devices (such as IoT controls art. 30801-xx0591) they need
to be configured with the View Wireless App within a group.
Download the View Wireless App from the stores onto the tablet/smartphone you
will be using for configuration.
When the device is powered for the first configuration, we recommend you search for any
new firmware and perform the update.
You will also need:
Gateway art. 30807.x-20597-19597-14597
View App for management via smartphone/tablet
Amazon Alexa, Google Assistant, Siri (Homekit) voice assistants for possible voice
operation
.
CONFIGURATION IN
1. Create your Installer account on MyVIMAR (on-line).
2. Wire all the devices in the system (2-way switches, relays, thermostats, gateway, etc.).
3. Start the View Wireless App and log in with the credentials you just created.
4. Create the system and the environments.
5. Associate all the devices with the environments, except for the gateway (which should be
associated last).
To associate the actuator:
• Select "Add" ( ), choose the environment to place it and give it a name
• Select ; activate the Bluetooth connection on your tablet/smartphone and approach the
actuator
• Press the CONF push button and set the desired function
6. For every device, set the function, the parameters and any accessory devices (wired or radio
control and related function).
7. Transfer the configuration of the devices to the gateway and connect it to the Wi-Fi network.
8. Transfer the system to the Administrator user (who must have created his/her profile on
MyVIMAR).
For details, see the View Wireless App manual that can be downloaded from the www.
vimar.com website.
RESET PROCEDURE.
The reset restores the factory settings. Within the first 5 minutes from powering the device, press
CONF for 30 s until the white LED flashes.
INSTALLATION RULES.
• Installation must be carried out by qualified persons in compliance with the current regulations
regarding the installation of electrical equipment in the country where the products are installed.
• The electronic 1-way switch must be protected by a directly associated fuse with a rated
breaking capacity of 1500 A or by an automatic 1-way switch with a rated current not
exceeding 10 A.
CHARACTERISTICS.
• Rated supply voltage: 100-240 V~, 50/60 Hz
• Dissipated power: 2.5 W
• RF transmission power: < 100mW (20dBm)
• Frequency range: 2400-2483.5 MHz
• 1 relay output 10 AX 250 V (C, NO). The NO terminal can be configured as NC from the View
Wireless App
• 1 proportional analogue 0/1-10 V output with scalable output voltage
• Maximum proportional output current: 10 mA
• LED and configuration/reset push button.
• Protection degree: IP20.
• Operating temperature: -5 °C ÷ +45 °C (indoor use)
• Overall dimensions: 2 modules size 17.5 mm for installation on DIN rail (60715 TH35)
• The actuator can be configured in a group for a "lights" or "various" type application to control
a dimmable light (for instance LED power supply unit with 0..10 V input) or a proportional load
(for instance fan with 0..10 V control)
• Controllable via View App, Amazon Alexa, Google, Siri and Homekit voice assistantfor
Bluetooth technology system
N.B. The relay output is not independent and is always linked to the proportional 0/1-10 V output,
so it is used in applications where the latter is not configured.
03986 01 2410
REGULATORY COMPLIANCE.
RED Directive. RoHS directive.
Standards EN IEC 60669-2-1, EN IEC 63000, EN 301 489-17, EN 300 328, EN 62479.
Vimar SpA declares that the radio equipment complies with Directive 2014/53/EU. The full text
of the EU declaration of conformity is on the product sheet available on the following website:
www.vimar.com
REACH (EU) Regulation no. 1907/2006 – Art.33. The product may contain traces of lead.
WEEE - User information
The crossed out bin symbol indicates that the product must be sent to separate collection facilities for
recovery and recycling, in compliance with the national laws of EU Countries that implement the WEEE
Directive. The objective is to prevent any harmful effects on the environment and on human health by ensuring
that products are disposed of correctly, avoiding illegal disposal sanctioned by law.
To dispose of the product correctly, please check local dispositions in your country.

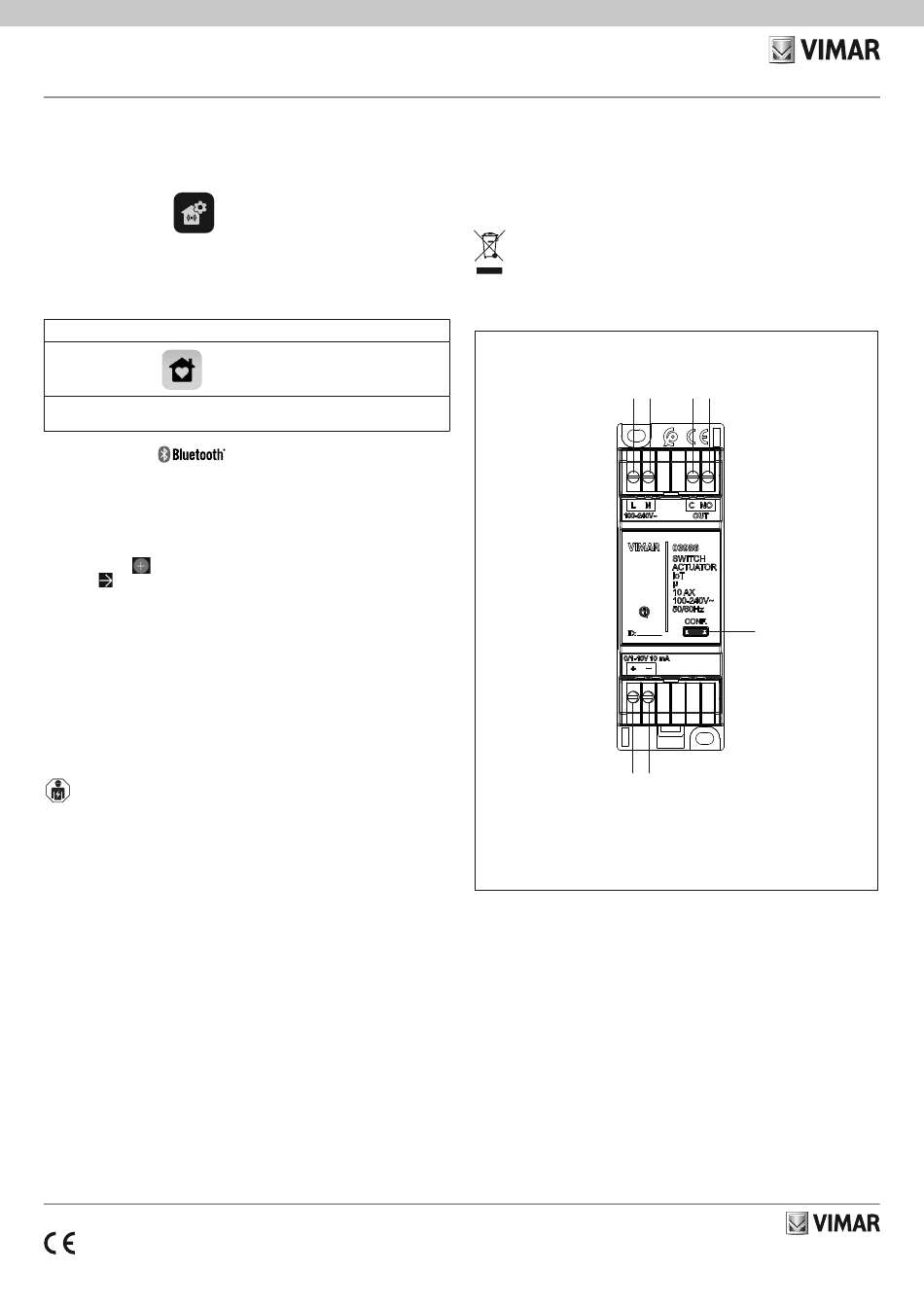

FRONT VIEW
A
D
A: 100-240 V~ power supply
B: Relay output 10 AX 250 V (C, NO)
C: LED and configuration/reset push button
D: Proportional analogue 0/1-10 V output
B
C
Viale Vicenza 14
36063 Marostica VI - Italy
www.vimar.com
