XPander Manual Call Point
Installation Guide
General
The XPander Manual Call Point is available under the following part number;
Part No
XPA-MC-14101-APO
The address of the unit is set using the XPERT card – see supplied table. The installation must conform to applicable local codes.
This manual call point is suitable for indoor use only.
Installation of XPander Manual Call Point.
Ensure that all call points are sited in accordance with the survey and design details. All call points must be surface mounted.
Loosen the xing screw to remove the mounting plate (See gure 1).
Fixing
screw
Figure 1
Fix the mounting plate, using suitable xings and fasteners. A minimum of 2 mounting holes must be used (See gure 2).
Countersunk head screws must be used to avoid the possibility of causing damage to the internal components (See gure 3).
When tting / replacing batteries; observe correct polarity, using only speci ed batteries.
Connect the power jumper across the PIN header. (See gure 4).
© 2021 EMS Ltd. All rights reserved.
Description

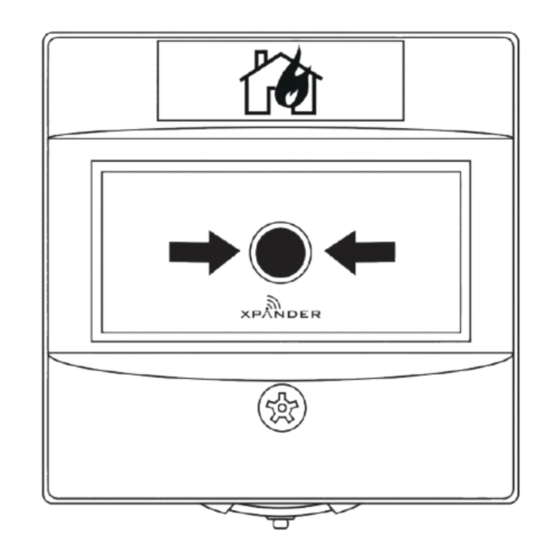

XPander Manual Call Point
57mm
device
unpowered
(pins unlinked)
device
powered
(both pins linked)
67mm
Figure 2
Figure 4
Page 1 of 5
Wall
mounting
positions
Figure 3
MK290 Iss 1 01/01/2021 AJM
Advertisement
Related Manuals for Apollo XPander
Summary of Contents for Apollo XPander
- Page 1 XPander Manual Call Point Installation Guide General The XPander Manual Call Point is available under the following part number; Part No Description XPA-MC-14101-APO XPander Manual Call Point The address of the unit is set using the XPERT card – see supplied table. The installation must conform to applicable local codes.
- Page 2 Please see commissioning manual for log on procedure details. When reassembling the device, observe the hinged connection located on the devices top edge rst, prior to closing the unit. Finally lock the call point into the mounting plate by tightening the xing screw. XPERT Card Addressing Select the desired address and remove the pips indicated in black.
- Page 3 Device Activation Alarm LED illuminated and re event is displayed at the control panel. Device Resetting Element returns to the normal position... Alarm LED illuminated. Turn the reset key clockwise to reset. and the alarm LED extinguishes. © 2021 EMS Ltd. All rights reserved. Page 3 of 5 MK290 Iss 1 01/01/2021 AJM...
- Page 4 XPert Card Removal Simultaneously turn the Press the connector reset key anti-clockwise... Important note retaining clip... This process will result in the device going into an alarm condition. Ensure the device is disabled from system, prior proceeding. Whilst pushing the head unit down, to whilst carefully disconnecting the release it from the wireless module.
- Page 5 Protocol European Union Hereby, EMS declares that directives the radio equipment type Programming PP2289 XPander EPG XPander Wireless Manual Call Point is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.emsgroup.co.uk...
