Apollo ADR Manual

Isolator Specification
VSO, Isolate Voltage 13-16V
VSC, Reconnect Voltage 12-14V
IC, Continuous Current— 1A max
Switch Closed
IS, Switching Current 3A max
IL, Leakage Current 300µA max
Conditions for Holding
The door will hold if all the following
conditions are met:
• There is loop communication
• The device is sufficiently charged (45
minutes)
• No faults on the device
• The device has a valid address (not 0 or
127)
• There is no Alarm condition indicated by
the panel
Technical Support Line +44 (0)23 9244 2706
Maintenance
Fire door holders should be tested weekly as
part of the fire-system test procedures. For
optimum holding force, the face of the magnet
and keeper plate should be kept clean and free
from damage. To comply with BS EN 1155, this
device should not be used to hold open a door at
less than 65°. There are no user-serviceable
parts in this door retainer.
EMC Directive
The Addressable Door Retainer complies with
the essential requirements of the EMC Directive
2014/30/EU, provided that it is used as
described in this installation guide.
Construction Products Regulation (EU)
305/2011
The Addressable Door Retainer complies with
the essential requirements of the Construction
Products Regulation (EU) 305/2011
Doc 39215-410 Iss 2
Addressable Door Retainer (ADR)
Product overview

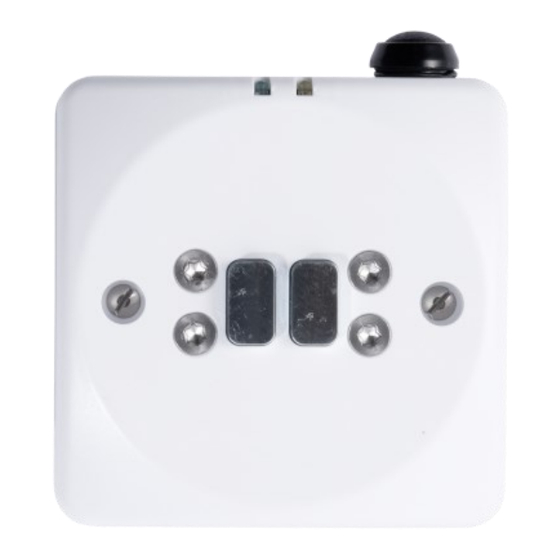

Product: Addressable Door Retainer (ADR)
Part No: 55000-982APO
Digital Communication: XP95 compatible
Product information
Door retainers ensure buildings are accessible for all by holding fire doors in the open position then
releasing and closing them according to the fire system design. The Apollo Addressable Door Retainer
is an XP95 device designed for installation directly onto an addressable loop and is suitable for use on
all types of fire door, including critical actuation doors.
• Integrated loop isolator
• Extra low voltage usage
• Suitable for critical actuation (Category A) installations*
• Failsafe by design
• Patented permanent magnet technology
• Doors and zones can be individually controlled
• 200N holding force rating
• Surface or semi-flush wall mounted
• Floor mounting options via standard bracket
*When connected to a compliant panel
Technical Support Line +44 (0)23 9244 2706
Apollo Fire Detectors Ltd
36 Brookside Road
Havant
Hampshire
PO9 1JR
Tel: +44 (0) 23 9249 2412
Fax: +44 (0) 23 9249 2754
www.apollo-fire.co.uk
techsales@apollo-fire.com
Doc 39215-410 Iss 2
