Lignomat Triplet RTH02 User Manual

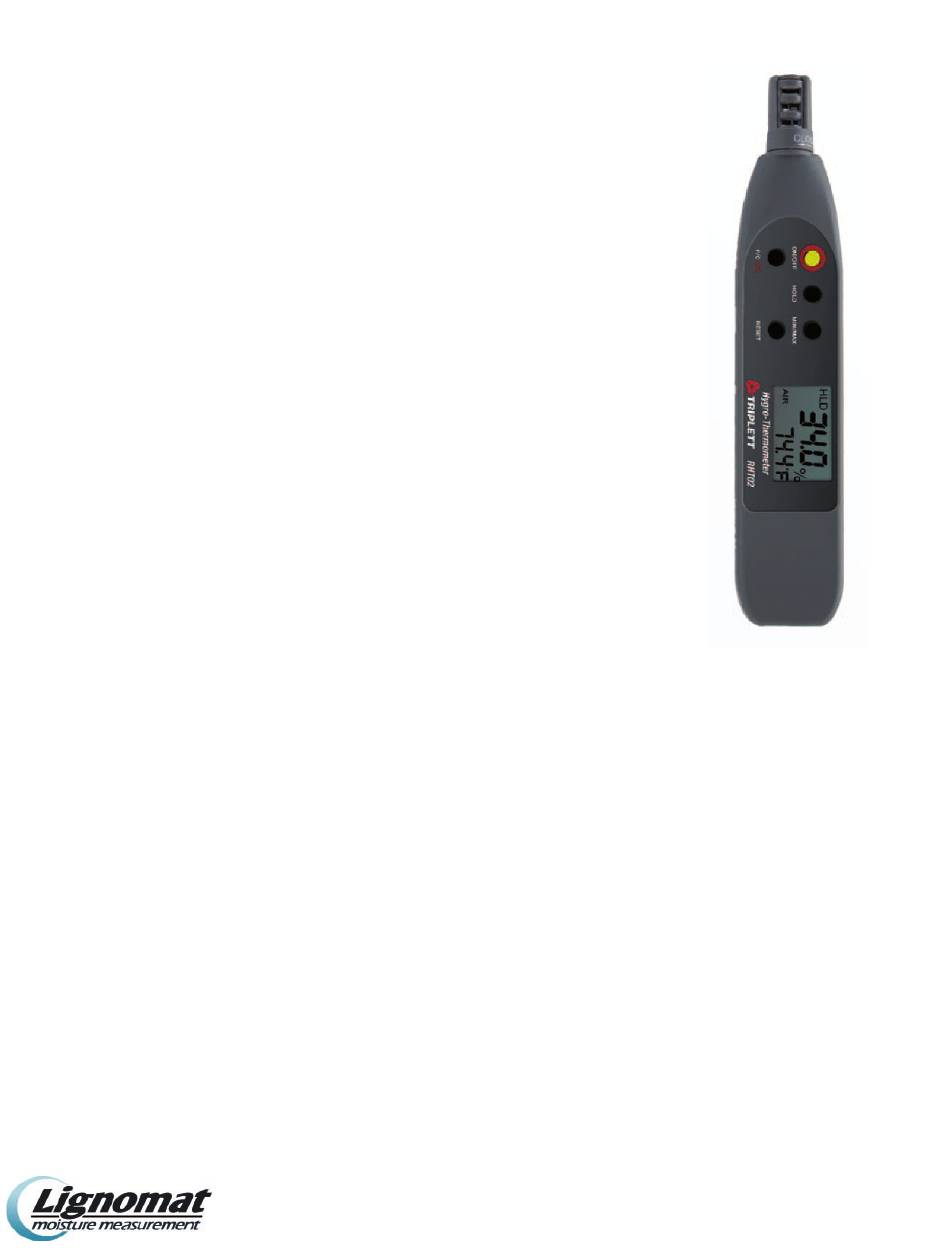

User's Manual for Thermo-Hygrometer PN
The digital Thermo-Hygrometer PN measures ambient
temperature and relative humidity. The meter has a:
- Min/Max function with reset capability
- Auto-off after 20 minutes.
- Hold function
- Build-in Humidity calibration mode
- Pocket-size with belt clip, pen-shaped to measure small
areas.
Measuring:
1. Rotate the sensor cap for ready to measure.
2. The meter is turned on by pressing the ON/OFF button.
The meter will turn itself off after 20 minutes. Press the ON/
OFF button to turn the meter off at any time.
Both values for temperature and relative humidity are
displayed. The value for relative humidity is indicated by "%"
and temperature is indicated by "F".
3. Change the temperature value from degree Fahrenheit to Cel-
sius: Press the TEMP (⁰F/⁰C) button in the lower left section
of the instrument. The values for Fahrenheit and Celsius
toggle between each other until the button is released.
Release the button when the desired unit is displayed. During
that time no measurements are taken.
Hold function:
To start the hold function press HOLD button until HLD appears
in the upper left corner of the display. No more measurements
are taken. Function helps to read display after measurements
have been taken in a location, where the display cannot be read.
To start measuring again, press HOLD button again until HLD
disappears.
MIN / MAX function:
1. Press MIN/MAX button until MIN appears on the left side of
the display. The lowest measured relative humidity and
temperature values appear since the memory has been reset.
2. Press MIN/MAX button again, MAX appears on the left side
of the display. Press MIN/MAX button once again and the
meter is back to measuring mode.
Lignomat USA LTD, 14345 NE Morris Ct., Portland OR 97230,
503-257-8957, 800-227-2105, sales@lignomat.com www.lignomat.com
Applications:
- Home
- Office
- Shop
- Warehouses
- Manufacturing
Facilities
- Wood Processing
- Furniture, Cabinets
- Wood Floors
Manufacturing
Installation
Service
