- Page 1 User Instructions for Ligno-VersaTec Moisture Meter Lignomat USA Ltd. 14345 NE Morris Ct Portland, OR 97230 E-mail: sales@lignomat.com www.lignomat.com Tel: 503-257-8957 800-227-2105 FAX: 503-255-1430...
-
Page 2: Table Of Contents
Pin Technology and Settings ............... Measurements ..................Measuring Wood, Sheetrock, Concrete and other Bldg Materials... 8, 9 Monitoring using the Ligno-VersaTec ..........10, 20 Monitoring using the BL2 Data Logger and Wireless ...... Function and Calibration Check - Pin .......... -
Page 3: Functions
SCAN reference scales (pg 6) for measuring concrete and other building materials. The Ligno-VersaTec with RH BluePeg probe and adapter RH can measure relative humidity, temperature, dew point and GPP. Accessories are available for in-situ RH moisture testing of concrete slabs and wall cavities. -
Page 4: Accessories
RH adapter. testing in concrete. or without insulation. Calibration Check: Pin and pinless meters from Lignomat internally check and adjust the calibration before each reading. Check blocks are used to confirm calibration and function of pinless meters and pin meters, cables,... -

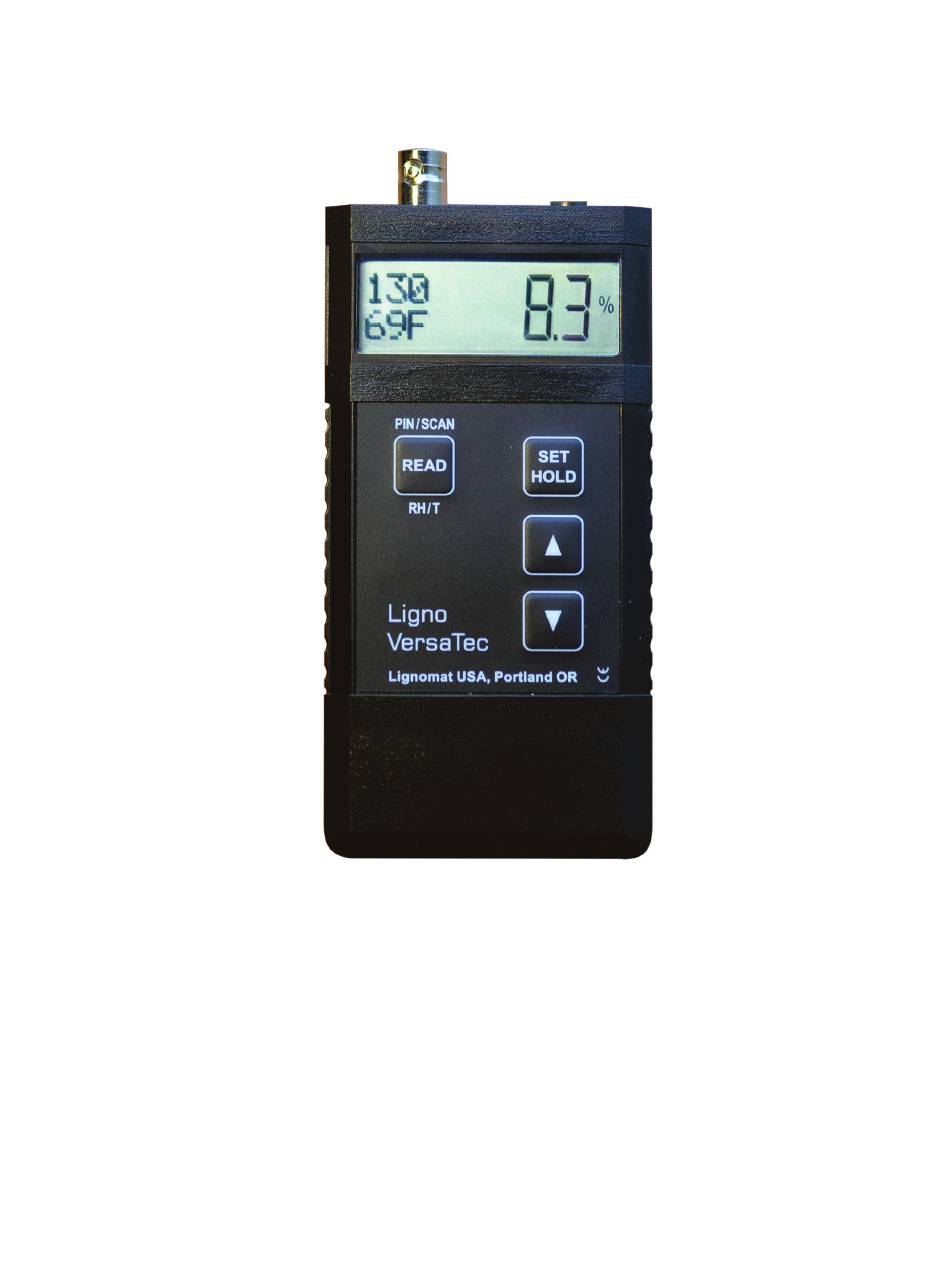

Page 5: Ligno-Versatec, The Meter
During that time you can switch back to measuring by pressing the READ key again. This feature is helpful when taking notes or when measuring in areas, where the display cannot be read. Warranty: All Lignomat meters have a -year warranty. Accessories have a... -
Page 6: First Step: Check And Change Settings For Pin And Pinless
First Step : Check and Change Settings for Pin / Pinless Mode Before using the Ligno-VersaTec, the active (previously chosen) settings in the meter need to be checked and if necessary changed to fit the job to be done. To recall active settings, press the SET/HOLD key repeatedly. -
Page 7: Pin Technology And Settings
Pin Mode Pin Technology and Settings The Ligno-VersaTec functions as a resistance-type meter in pin mode. The conductivity between the pins is measured and the moisture content is calculated according to the active wood species and wood temperature settings. The meter indicates the highest moisture value within the small measuring area between the tip of the teflonized pins. -
Page 8: Measurements
Pin Mode Measurements After settings have been checked and changed, press the READ key to obtain readings. The active settings appear briefly. Then, if no electrode is connected or if the electrode is not inserted into any material, the lowest possible reading for the active material and temperature settings appears. -
Page 9: Pin Mode
Pin Mode Pin Mode Pin Mode The ability to measure a moisture gradient up to 2” deep is one important reason why customers still use pin electrodes. In pinless mode you can measure only up to 3/4” deep. If high moisture levels are suspected deeper down, the only option to measure deeper than 3/4”... -
Page 10: Monitoring Using The Ligno-Versatec
An RH in-situ probe test and/or a Calcium-Chloride test is recommended by most wood floor manufacturers. See Page 21 for RH in-situ probe test in concrete with the Ligno-VersaTec. Monitoring using the Ligno-VersaTec Extension cables and probes can be installed to monitor remote areas, which are otherwise unreachable. -
Page 11: Pin Technology And Settings
Page 19. For unlisted species or new products call customer service at 800-227-2105. If a list- ing is not available, Lignomat offers testing to determine the correct code number. Pinless mode (unlisted code # do not work in pinless mode) -
Page 12: Measurements
For example: Elevate one end of the test board to create an air space underneath the board. If this is not possible, make sure the Ligno-VersaTec is set for the correct measuring depth. Measuring veneer, page 15. -
Page 13: Dual-Depth 1/4" And 3/4
When floor planks 5/8” thick are installed and measured with a pinless meter set for a 3/4” measuring depth, you cannot be sure that the subfloor or concrete underneath is not affecting the readings. With the Ligno-VersaTec on the 1/4” depth setting, you definitely only measure the floor planks . -
Page 14: Pinless Mode
This is the best way to compare surface and core moisture with the pinless measuring technology. Use the Ligno-VersaTec with a pin electrode to measure a moisture gradient in thicker wood. Measuring Wood: Check/change wood species setting: Code numbers 111-230. -
Page 15: Find Settings For Composites And Engineered Boards
3/4” thick. Make sure that the selected measuring depth is 1/4”, when using code numbers 11-24. Also available in Ligno-DuoTec BW and SDM. The values indicated by the Ligno-VersaTec are WME percentages. WME is the wood moisture equivalent. The following example shows what WME means: If bamboo is acclimated to ambient conditions of 42%, the Ligno-VersaTec on the correct bamboo setting indicates 8%. -
Page 16: Measuring Building Materials
1/4” measuring depth gives true moisture percentages, without includ- ing any material behind the sheetrock. Since the maximum measuring depth of the Ligno-VersaTec in scan mode is limited to 3/4”, it may be more conclusive to investigate moisture problems with the electrode... -
Page 17: Wood Floor Installations
Take readings with both depth levels and docu- ment the measurements with moisture content, species setting, measuring depth and location. Take a photo to pinpoint the location. Use the Ligno-VersaTec with the RH BluePeg probe to take relative humidity and temperature measurements. -
Page 18: Emc Chart For Relative Humidity And Wood Moisture/Emc
Relative Humidity, Wood Moisture and EMC Chart Recommended ambient conditions in buildings are 30-50% relative humidity at 60- F. If ambient conditions stay within this range, the amount of expansion and con- traction of wood floors and furnishings at 6-9% moisture content is limited. (Table from US Dept of Agriculture “Wood Handbook, Wood as an Engineering Material”) EMC Chart Relative Humidity in %... -
Page 19: Monitoring Using The Bl2 Data Logger And Wireless
> ........If the specific gravity is 0.42, the Ligno-VersaTec should be set to #42 in pinless mode. For unlisted species or new products call customer service at 800-227-2105. If no listing is available, Lignomat offers testing to determine the correct setting. -
Page 20: Rh Mode
C and >49 Measuring Range for GPP: 0-99.9 Measure and Monitor Ambient Conditions As soon as the RH BluePeg probe is connected to the Ligno-VersaTec, the meter auto- matically switches into RH mode and indicates values for: relative humidity ambient temperature... -
Page 21: In-Situ Rh Test For Concrete Moisture
Pin and pinless, ASTM F2659, quantitative versus qualitative. In-situ RH testing: Use the RH mode of the Ligno-VersaTec with the RH BluePeg probes, and measure the relative humidity and temperature inside a hole in the con- crete. -
Page 22: Check Software Version
Why the RH test gives the most reliable results: Moisture distribution within an open concrete slab is often not uniform, especially when the slab has not dried completely or when the slab is on grade. The surface shows low moisture levels, whereas higher moisture levels are found in the middle of the slab or towards the bottom (espe- cially for slabs on grade). -
Page 23: Function And Calibration Check For Pin - Pinless - Rh
Function and Calibration Check for Pin and Pinless Mode All pin and pinless meters from Lignomat including the Ligno-VersaTec are built with high quality components, micro-processor based, to guarantee stable calibrations for many years of usage. All meters from Lignomat internally check and if necessary adjust the calibration before each reading. - Page 24 Step 3: Lignomat offers an external calibration check block TP. The block is used to confirm the calibration of all Lignomat pin meters. Connect meter, cable and electrode. Set the meter to pin mode. Select code # 103 and a wood temperature of 70 F.
-
Page 25: Function And Calibration Check - Rh Bluepeg
Since the standard is still modified periodically, we recommend to purchase the latest F2170 standard to be up-to-date with all requirements. Available from the ASTM web- site. Lignomat offers to check RH probes three times free of charge during the first year. V24-KML Package with RH Accessories...
