Summary of Contents for FinTec SVEA 6 kW

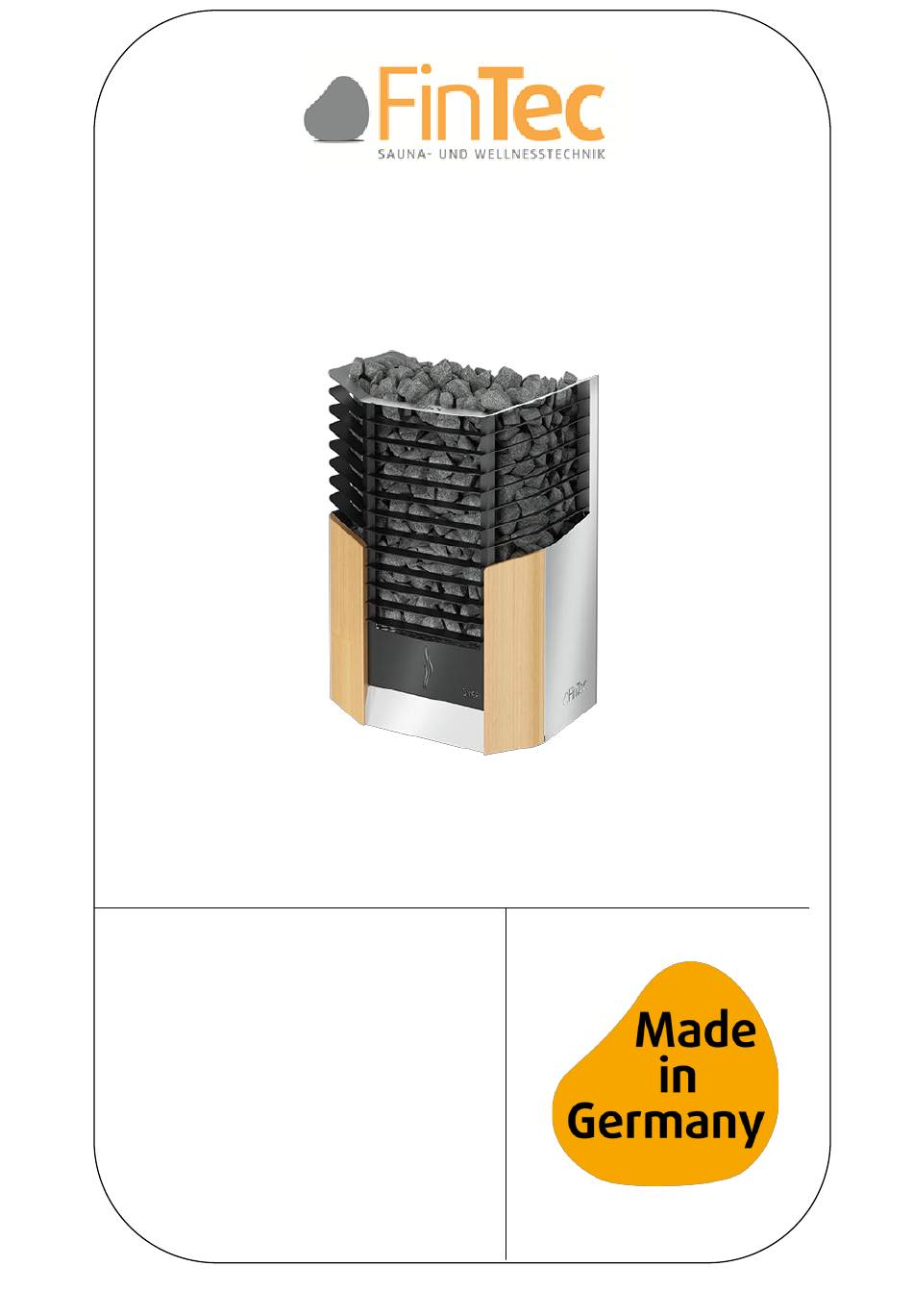

- Page 1 FinTec SVEA sauna heater 6 kW 9 kW 10.5 kW...
-
Page 2: Table Of Contents
Table of contents General information ..........................3 Symbols in warning notices ......................... 3 Delivery condition, packaging, recycling ....................4 Installation instructions for the installer ....................5 Important notes ............................ 5 Structure............................... 6 Minimum distances ........................... 6 Electrical connection ........................7 Recommendation for commissioning the sauna heater .............. -
Page 3: General Information
General information Please read the information in this manual carefully. These provide important instructions for the safety, installation, use and maintenance of the appliances. The manufacturer is not liable if the following instructions are not followed. The appliances must not be misused, i.e. -
Page 4: Delivery Condition, Packaging, Recycling
Before switching on the sauna heater, always check that there are no objects on or in the immediate vicinity of the heater. WARNING! Very high temperatures are generated on the surfaces when the sauna heater is in operation. There is a risk of burns on contact. Please always ensure that children or infirm persons are not left unattended. -
Page 5: Installation Instructions For The Installer
The ventilation openings must not be closed. Please also observe the sauna cabin sup- plier's instructions. • FinTec sauna heater control units must be used to regulate or control the sauna heater. The control unit must be installed in a suitable position on the outer wall of the cabin. The sensor housings are installed inside the cabin in accordance with the installation instructions for the control unit. -
Page 6: Structure
Structure Minimum distances When assembling the sauna heater, ensure that the distance from the top edge of the sauna heater to the sauna ceiling is at least 110 cm and that the sauna height is at least 200 cm. The lateral distance between the sauna heater and the cabin wall must be at least 5 cm (see Fig. -
Page 7: Electrical Connection
Electrical connection The sauna equipment (sauna heater, control unit, lighting, etc.) may only be permanently connected to the mains by a licenced electrician in compliance with the applicable regulations. All connecting cables must be suitable for an ambient temperature of at least 140°C (e.g. silicone cables). The minimum cross- sections of the connecting cable can be found in Table 1. - Page 8 Internal circuit diagram sauna heater for three-phase connection 400V AC 3/N/PE E1 Radiators Fig.4 Wiring diagram sauna heater for three-phase connection 400V AC 3/N/PE Sauna control unit Temperature sensor Cabin light (if Assembly location: available) On the ceiling opposite the sauna heater.
-
Page 9: Recommendation For Commissioning The Sauna Heater
Recommendation for commissioning the sauna heater It is known that the heating elements are hygroscopic, i.e. they can absorb moisture, which can cause the RCD to trip without an actual fault being present. In this case, the sauna heater must be heated up by a specialist under supervision, whereby the pro- tective function of the RCD is deactivated. -
Page 10: Warnings
Warnings • Sea air can cause the metal surfaces of the sauna heater to rust. • Never use the sauna to dry laundry due to the risk of fire. • Beware of the hot sauna heater. Stones and metal surfaces become very hot and can cause burns if touched. -
Page 11: General Guarantee Terms And Conditions
General guarantee terms and conditions Dear customer, In the case of warranty claims, the country-specific legal claims apply, which you should assert directly with your dealer. FinTec Sauna- und Wellnesstechnik GmbH Ottostraße 15 95213 Münchberg Germany Tel: +49 (0) 92 51 / 899 78 50...
