Richter Spielgeräte Whirlwind Assembly Instructions

ASSEMBLY INSTRUCTIONS
General information
A Surfacing requirements
This equipment should be installed on an
impact absorbing surfacing / loose fill material
that accords with EN 1176 and is adequate for
a maximum free height of fall of ≤ 1.00 m.
We recommend wood chips or gravel.
Note
We strongly recommend you do not use
rubber-like impact protection slabs.
B Foundations
Please take into account the special sheet:
Notes on the construction of foundations.
Special information
Certified by TÜV Süd Product Service GmbH in
compliance with EN 1176.
Please do not alter any parts of the equipment
or the construction itself since this may affect the
safety standards and your guarantee.
We reserve the right to make technical alterations!
For further information please call your local agent.

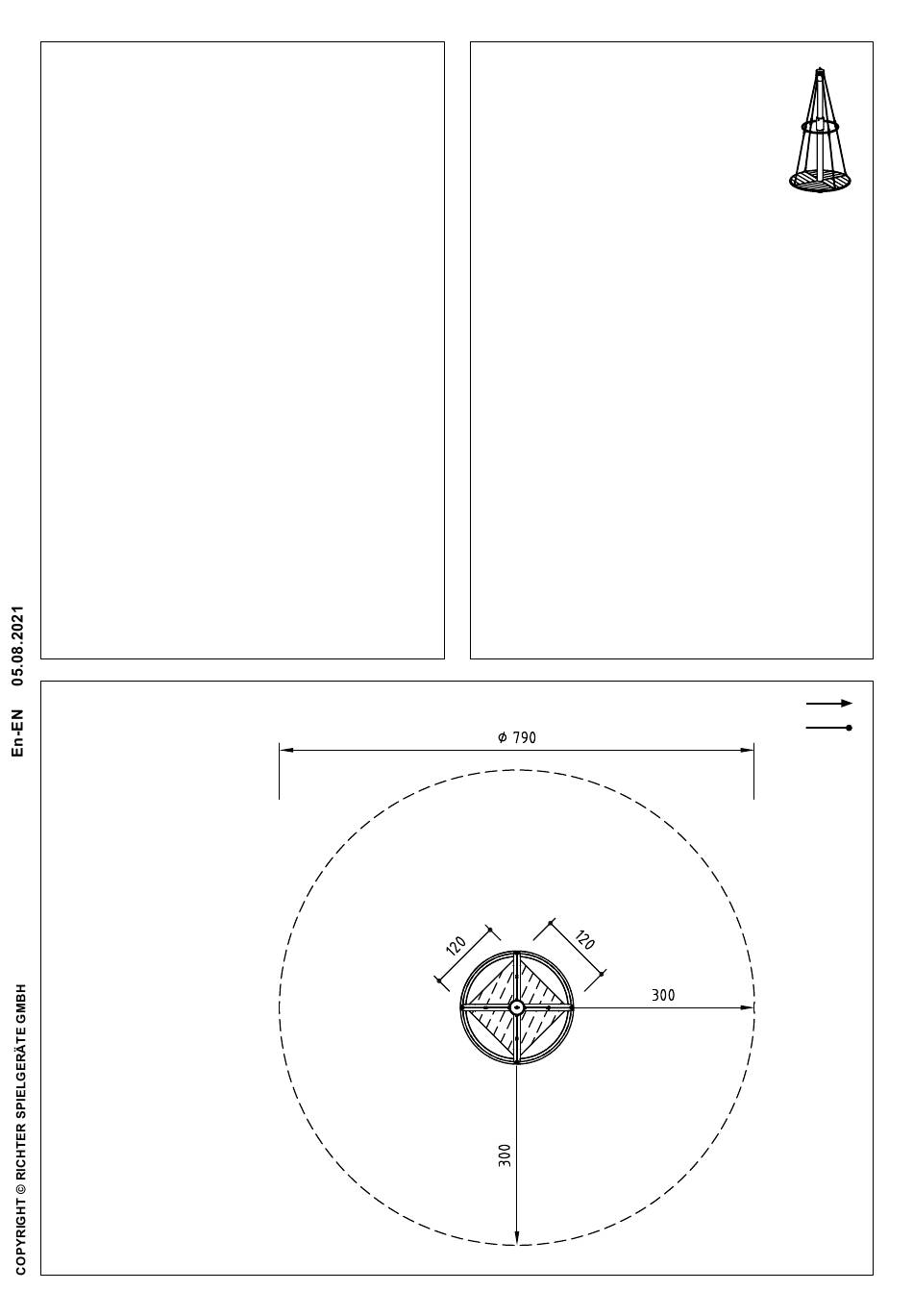

Required space including safety distances (EN 1176)
circle diameter 790 cm
Ground elevation
not to scale
all dimensions in cm
Foundations
quality of concrete C25/30
1 item 120 x 120 x 50 cm
excavation depth 80 cm
constructive reinforced
RICHTER SPIELGERÄTE GMBH · D-83112 FRASDORF · PHONE +49-8052/17980 · FAX 4180
· ASSEMBLY INSTRUCTIONS · ASSEMBLY
Whirlwind
Order No. 6.10500
Components
Number of parts: 2
1 whirlwind
1 foundation frame
Total weight:
Heaviest single part:
Largest single part
INSTRUCTIONS
approx. 420 kg
approx. 255 kg
approx. Ø 1.90 x 4.30 m
safety distances
foundations
Page 1
