Richter Spielgeräte Wobble Dish Assembly Instructions

ASSEMBLY INSTRUCTIONS
General information
B Surfacing requirements
This equipment does not reach the free height
of fall limit of 600 mm above which a specific
requirement for impact absorbing surfacing or
materials is necessary.
We recommend surfacing corresponding to a
fall height of ≤ 1.00 m.
Note
The equipment should not be installed in
sand. Otherwise, the underground parts of the
mechanism will be damaged.
C Foundations
Please take into account the special sheet:
Notes on the construction of foundations.
Special information
Certified by TÜV Product Service GmbH in
compliance with EN 1176.
Please do not alter any parts of the equipment or
the construction itself since this may affect the
safety standards and your guarantee.
We reserve the right to make technical alterations!
For further information please call your local agent.

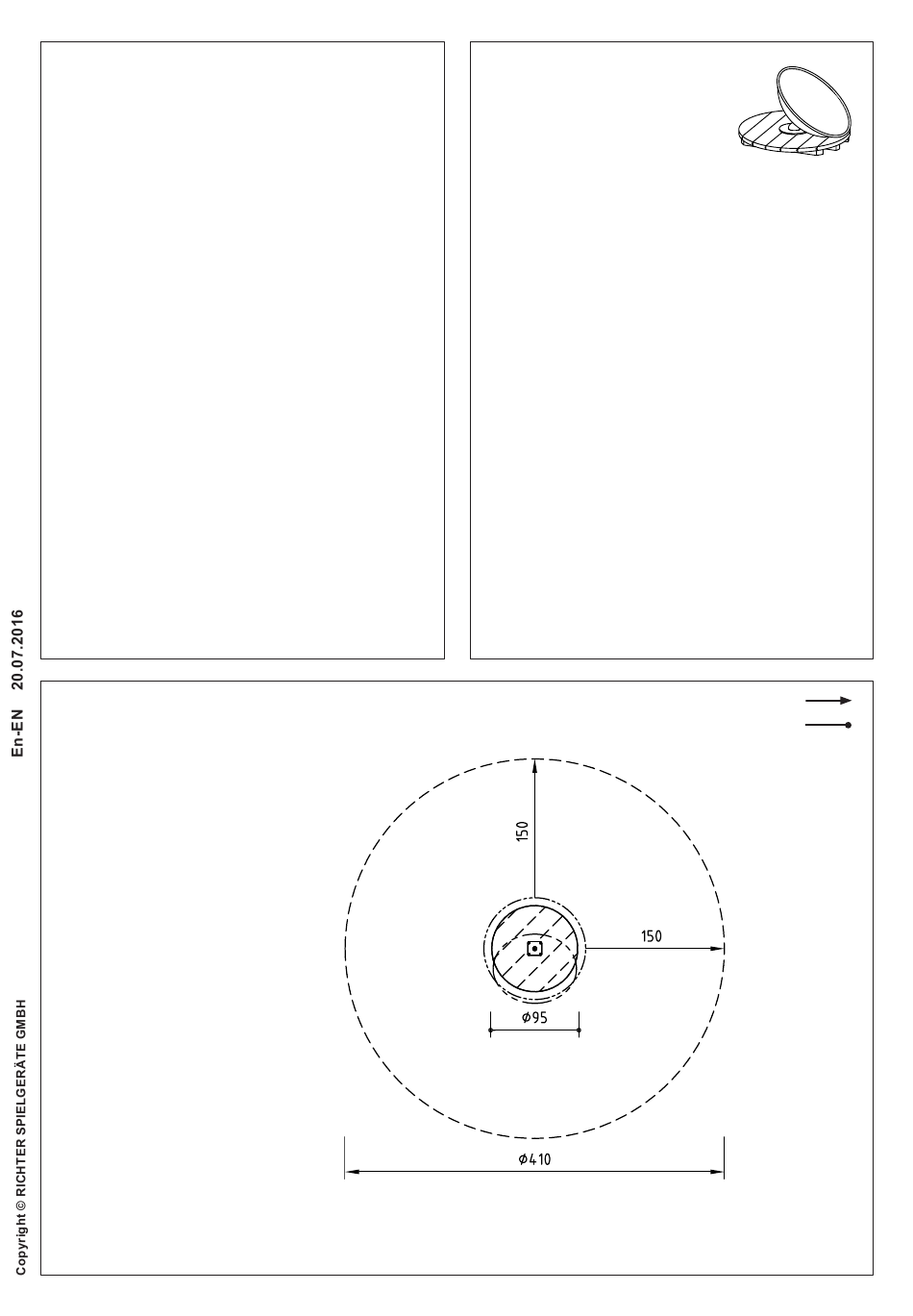

Required space including safety distances (EN 1176)
circle diameter 410 cm
Ground plan
scale 1:50
all dimensions in cm
Foundations
quality of concrete C25/30
1 pre-cast foundation
Note
For installation in loose material,
an additional anchorage in concrete
is necessary on site (see page 2).
RICHTER SPIELGERÄTE GMBH · D-83112 FRASDORF · PHONE +49-8052/17980 · FAX 4180
· ASSEMBLY INSTRUCTIONS · ASSEMBLY
Wobble Dish
Order No. 6.27300
with pre-cast foundation
Components
Number of parts: 1
1 completely assembled piece of equipment
with pre-cast foundation
Weight: approx. 190 kg
Ø 1.10 m
INSTRUCTIONS
safety distances
foundations
Page 1
