Richter Spielgeräte Giant Revolving Disc Assembly Instructions

ASSEMBLY INSTRUCTIONS
General information
A Surfacing requirements
This equipment should be installed on an
impact absorbing surfacing / loose fill material
that accords with EN 1176 and is adequate
for a maximum free height of fall of ≤ 1.00 m.
B Foundations
Please take into account the special sheet:
Notes on the construction of foundations.
Special information
Certified by TÜV Product Service GmbH in
compliance with EN 1176.
Please do not alter any parts of the equipment
or the construction itself since this may affect the
safety standards and your guarantee.
We reserve the right to make technical alterations!
For further information please call your local agent.

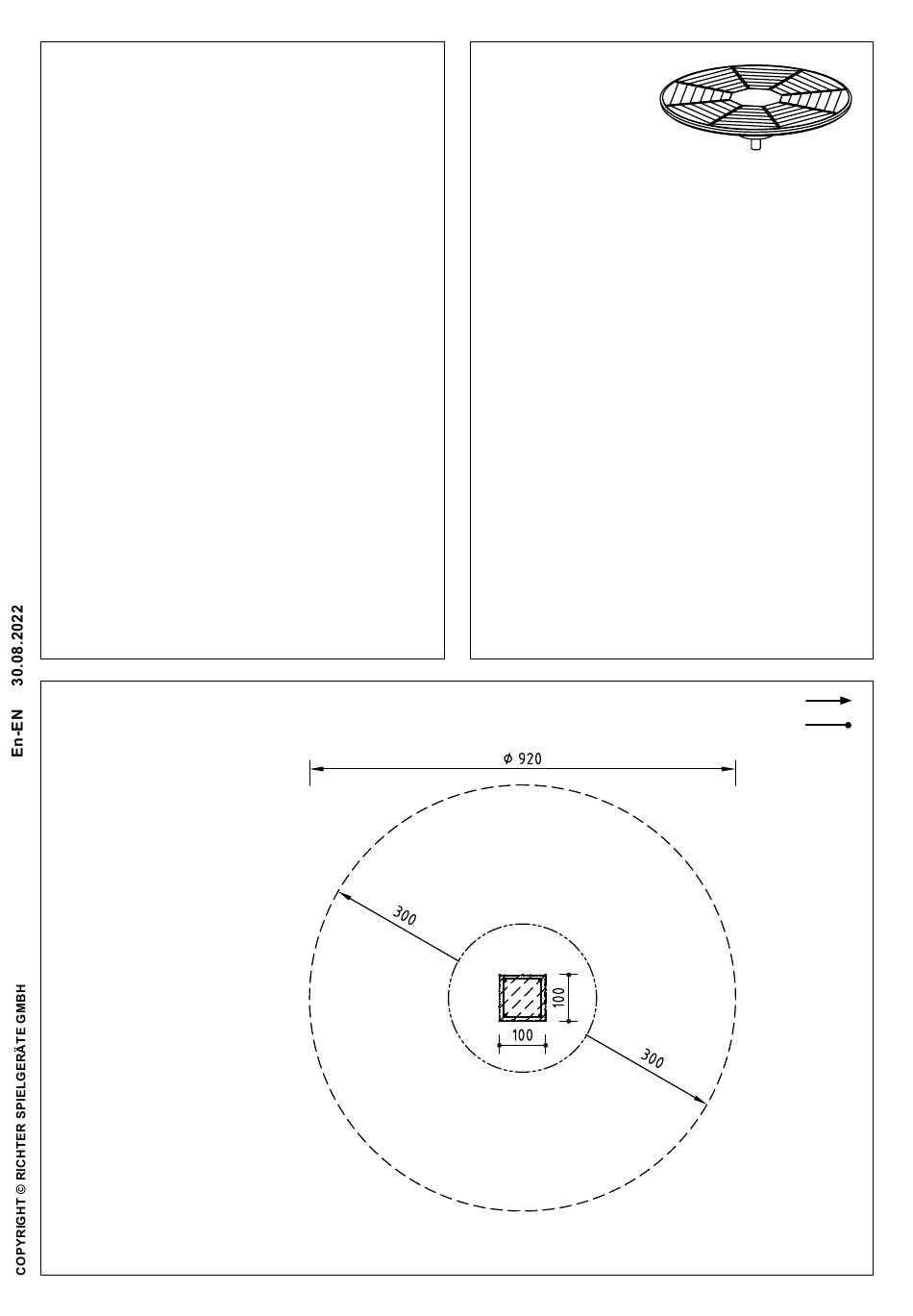

Required space including safety distances (EN 1176)
Ø 920 cm
Ground plan
scale 1:100
all dimensions in cm
Foundations
quality of concrete C25/30
1 item 100 x 100 x 70 cm
excavation depth 100 cm
RICHTER SPIELGERÄTE GMBH · D-83112 FRASDORF · PHONE +49-8052/17980 · FAX 4180
· ASSEMBLY INSTRUCTIONS · ASSEMBLY
Giant Revolving Disc
Order No. 7.25000
Components
Number of parts: 2
1 revolving disc
1 foundation frame
Total weight:
Heaviest single part:
Largest single part:
INSTRUCTIONS
approx. 670 kg
approx. 650 kg
Ø 3.20 m
safety distances
foundations
Page 1
